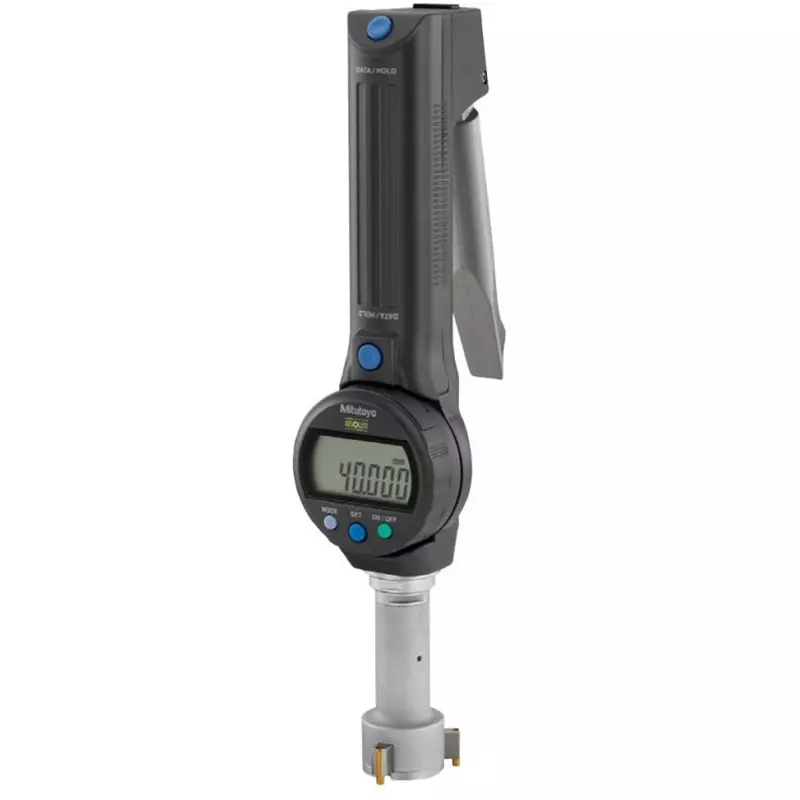

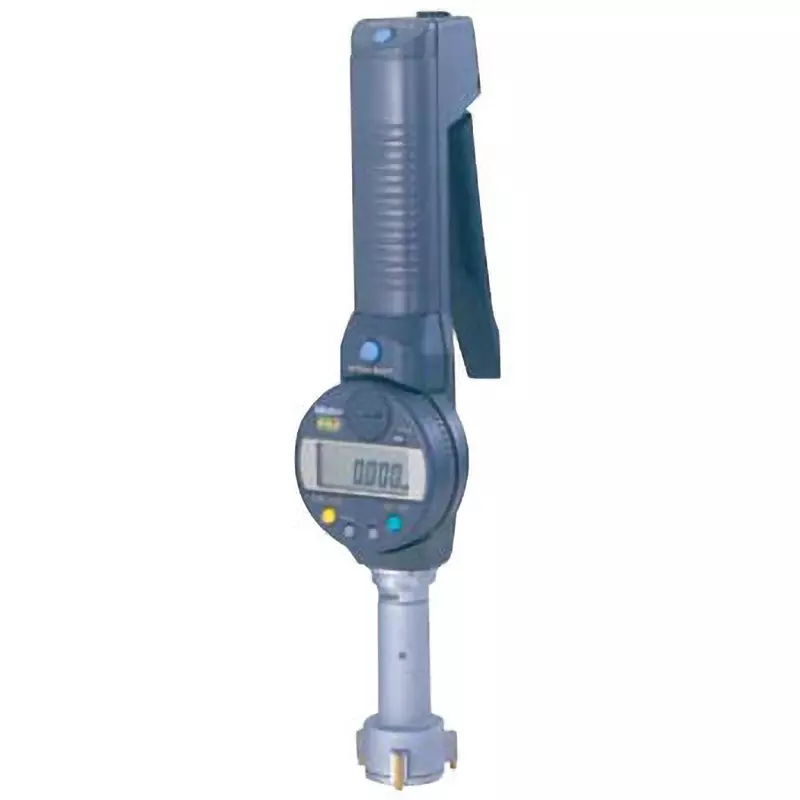

| Type of Product | Borematic |
| Model No | SBM-50CX |
| Series | 568 |
| Country of Origin | Japan |
Type of Product |
Borematic |
Model No |
SBM-50CX |
Series |
568 |
Country of Origin |
Japan |
Monotaro ID |
40277684 |
Minimum Reading (mm) |
0.001 mm |
Display |
Character height 11mm |
Position Detection Method |
Capacitive Absolute Encoder |
Function |
Tolerance judgment function, tolerance judgment enlarged display function, preset function (2 can be stored), zero set function, hold function, error alarm, battery voltage drop alarm, data output function, function lock function, display rotation function (330 °), ON / OFF function |
Power Supply |
One Button-Type Silver Oxide Battery SR44 (No. 938882) Is Included As Standard (The Button-Type Silver Oxide Battery Included As Standard Is For Monitor Use) |

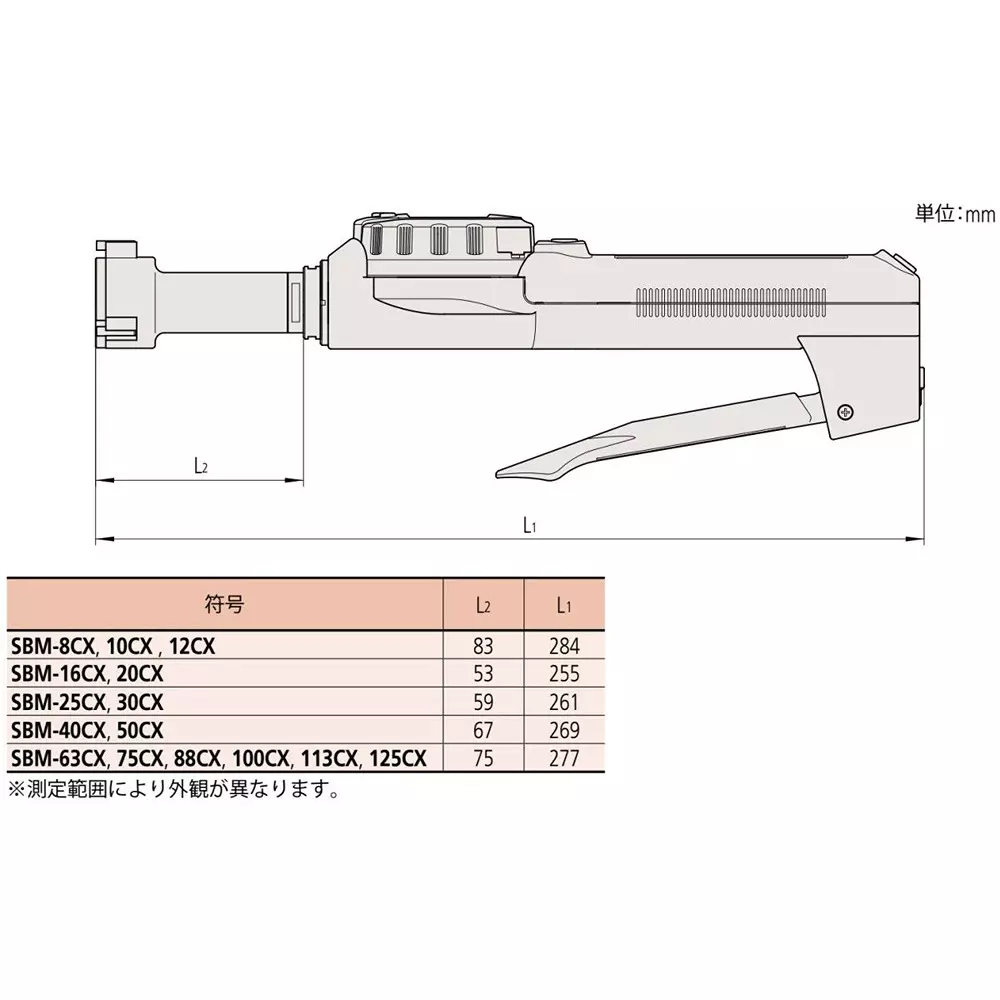

Dimension L1 |
269 mm |
Trusco Part No. |
432-7853 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Mitutoyo Corporation |
Measuring_Range |
40 - 50 mm |
Mass (g) |
610 |
Maximum Permissible Error (μm) |
J MPE: ±6 (Maximum Difference 6) |
Dimension L3 (mm) |
0.3 or less |
Dimension L5 (mm) |
10 |
Dimension L2 |
67 mm |
Dimension L4 |
13 mm |
Maximum Response Speed |
Unlimited |
Battery Life (hours) |
5,000 for continuous use |
Response Speed |
Unlimited |
