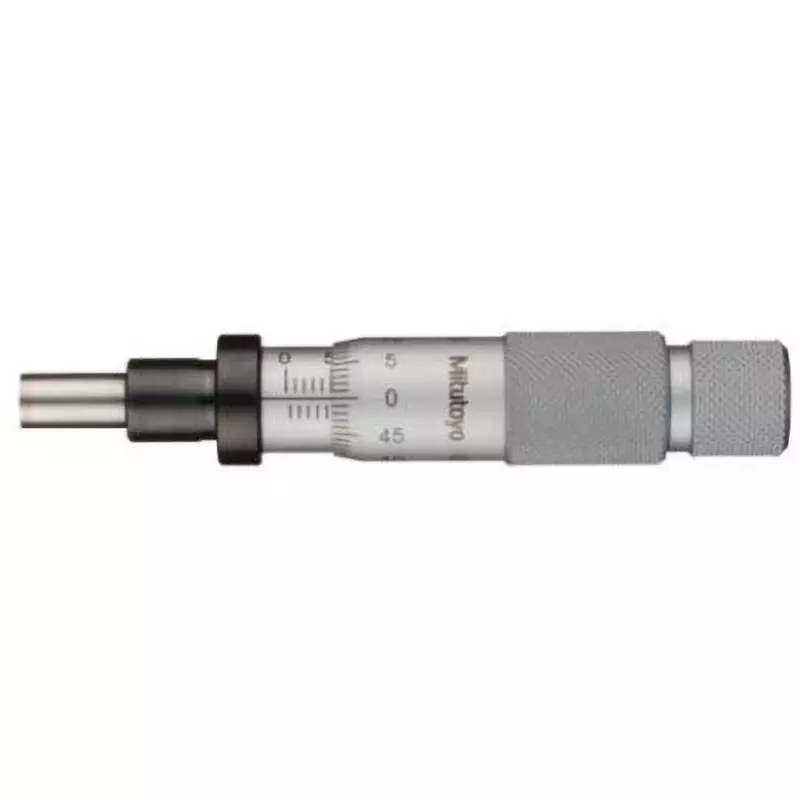

| Type of Product | 153 Series Micrometer Head (High-function Type) |
| Model No | MHK-15 |
| Series | 153 |
| Country of Origin | Japan |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
153 Series Micrometer Head (High-function Type) |
Model No |
MHK-15 |
Series |
153 |
Country of Origin |
Japan |
Tip Shape |
Flat surface (with cemented carbide tip) |
Monotaro ID |
1996556 |
RoHS Directive |
Correspondence |
Minimum Reading (mm) |
0.01 mm |
Type |
Without ratchet |
Surface Treatment |
(Scale) Hard chrome plating |
Hardness |
Measurement surface: 90HRA or higher |
Stem Shapes |
Straight |
Trusco Part No. |
105-4406 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Mitutoyo Corporation |
Measuring_Range |
0 - 15 mm |
Specifications |
Measuring surface: Lapped |
Mass (g) |
70 |
Product Code |
153-101 |
Maximum Permissible Error (μm) |
J MPE：±3 |
Material (Measuring Surface) |
Carbide Tip |
Scale (mm) |
0.01 |
