Ships within 19 days
View
View
View
View
| Type of Product | Dedicated Digimatic Micrometer MDC |
| Model No | MDC-200MX |
| Series | 293 |
| Country of Origin | Japan |
Type of Product |
Dedicated Digimatic Micrometer MDC |
Model No |
MDC-200MX |
Series |
293 |
Country of Origin |
Japan |
Monotaro ID |
18483474 |
Measuring Force (N) |
0 to 10 |
Included Components |
1 reference rod, 1 spanner (no.301336) |
Minimum Reading (mm) |
0.001 mm |
Flatness (μm) |
0.3 μm |
Parallelism (μm) |
4 |
Position Detection Method |
Electromagnetic Induction Rotary Encoder |

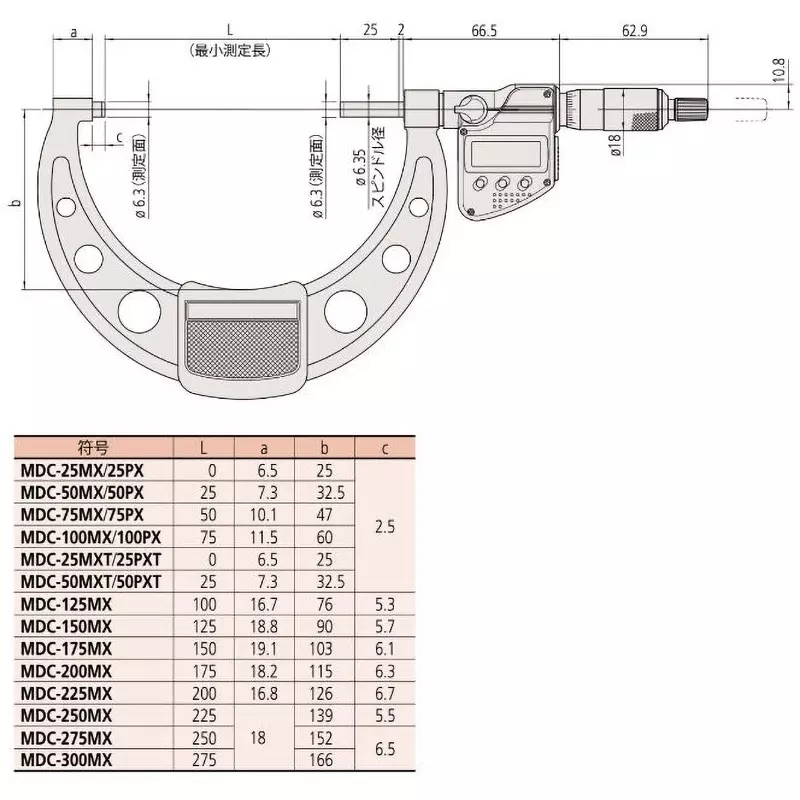

Dimensions C (mm) |
6.3 |
Dimensions B (mm) |
115 |
Function |
Origin setting function (ABS measurement system), zero setting function, hold function, measurement data output function, auto power ON/OFF function, error alarm, function lock function |
Power Supply |
One Button-Type Silver Oxide Battery SR44 (No. 938882) Is Included As Standard (The Button-Type Silver Oxide Battery Included As Standard Is For Monitor Use) |
Dimension L (mm) |
175 |
Protection Class |
IP65(IEC60529) |
Constant Pressure Device |
Ratchet Stop |
Trusco Part No. |
772-9251 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Mitutoyo Corporation |
Measuring_Range |
175 - 200 mm |
Specifications |
Measurement Data Wireless System<br> U-WAVE-TM transmitter unit: (IP67 type) 264-622, (buzzer type) 264-623<br> U-WAVE-TMB transmitter unit (U-WAVE fit Bluetooth(R) version): (IP type) 264-626, (buzzer type) 264-627<br> U-WAVE-TM/TMB connection unit: (IP67/buzzer type common) 02AZF310 |
Mass (g) |
970 |
Dimensions A (mm) |
18.2 |
