| Type of Product | Indication Micrometer |
| Model No | IDM-50R |
| Series | 510 |
| Country of Origin | Japan |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Indication Micrometer |
Model No |
IDM-50R |
Series |
510 |
Country of Origin |
Japan |
Monotaro ID |
1995427 |
RoHS Directive |
Correspondence |
Measuring Force (N) |
0 to 10 |
Included Components |
Reference rod, spanner (No.200154) |
Minimum Reading (mm) |
0.001 mm |
Type |
Instruction micro |
Flatness (μm) |
0.3 μm |
Parallelism (μm) |
0.6 |
Spindle Feed Error |
3 μm |

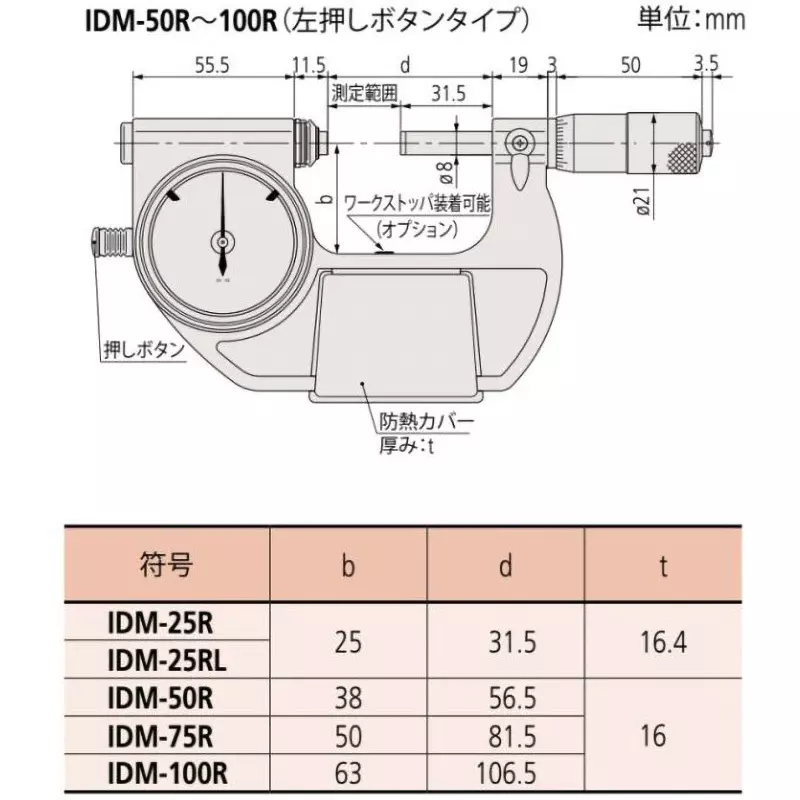

Dimensions B (mm) |
38 |
Dimensions D (mm) |
56.5 |
Trusco Part No. |
423-6807 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Mitutoyo Corporation |
Measuring_Range |
25 - 50 mm |
Mass (g) |
670 |
Product Code |
510-122 |
References |
Indicator indication range (mm) ± 0.06 Push button left side Indicator indication variation (μm) 0.4 |
Indication Errors |
1 μm (indicator Part) |
Dimension T |
16 mm |
