| Type of Product | Spline Micrometer |
| Model No | SPM-50 |
| Series | 111 |
| Country of Origin | Japan |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Spline Micrometer |
Model No |
SPM-50 |
Series |
111 |
Country of Origin |
Japan |
Monotaro ID |
1995576 |
RoHS Directive |
Correspondence |
Included Components |
1 reference rod, 1 spanner (no.301336) |
Minimum Reading (mm) |
0.01 mm |
Type |
spline |
Flatness (μm) |
0.3 μm |
Parallelism (μm) |
2 |

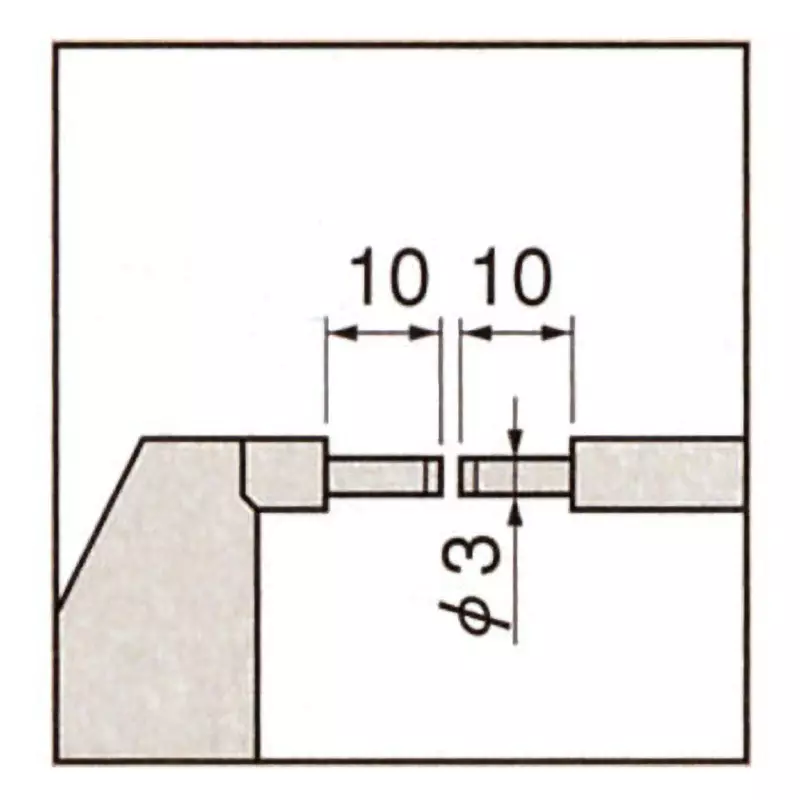

Measuring Surface (mm) |
Φ3×10 |

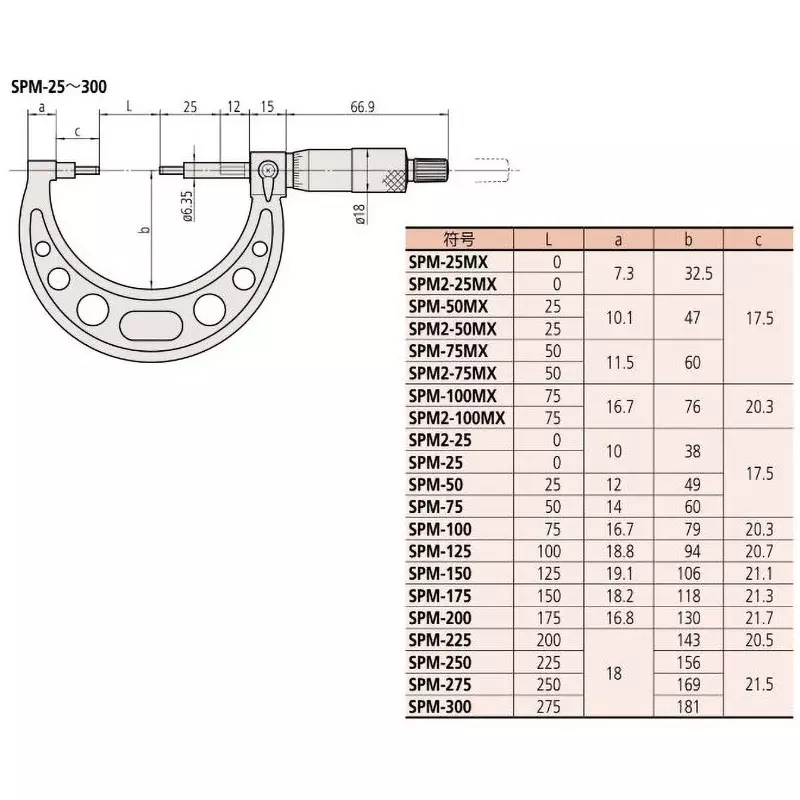

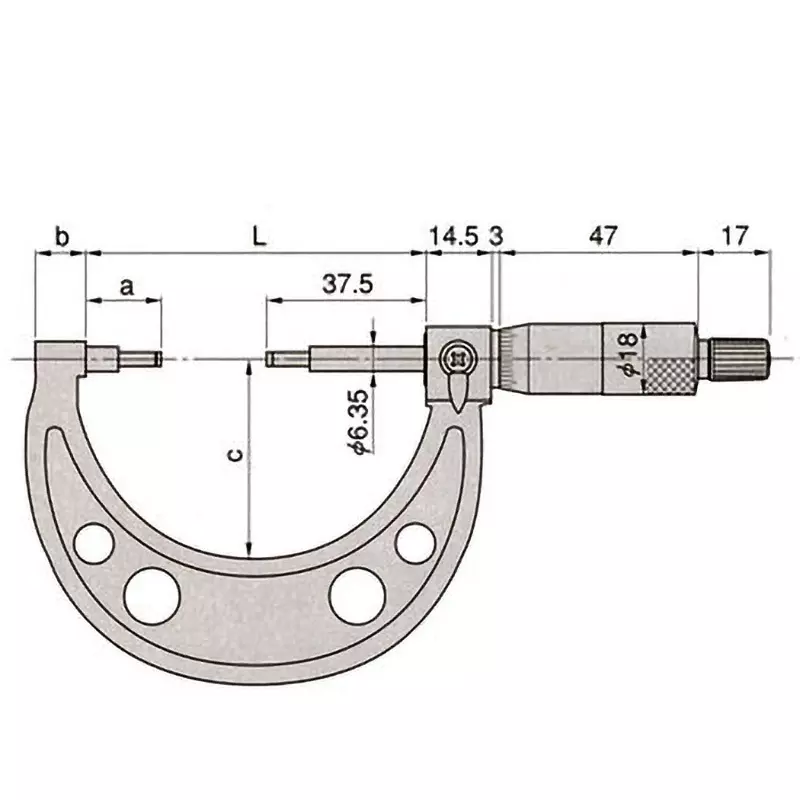

Dimensions C (mm) |
17.5 |
Dimensions B (mm) |
49 |
Dimension L (mm) |
25 |
Trusco Part No. |
423-7251 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Mitutoyo Corporation |
Measuring_Range |
25 - 50 mm |
Dimensions A (mm) |
12 |
Product Code |
111-116 |
Maximum Permissible Error (μm) |
J MPE：±3 |
