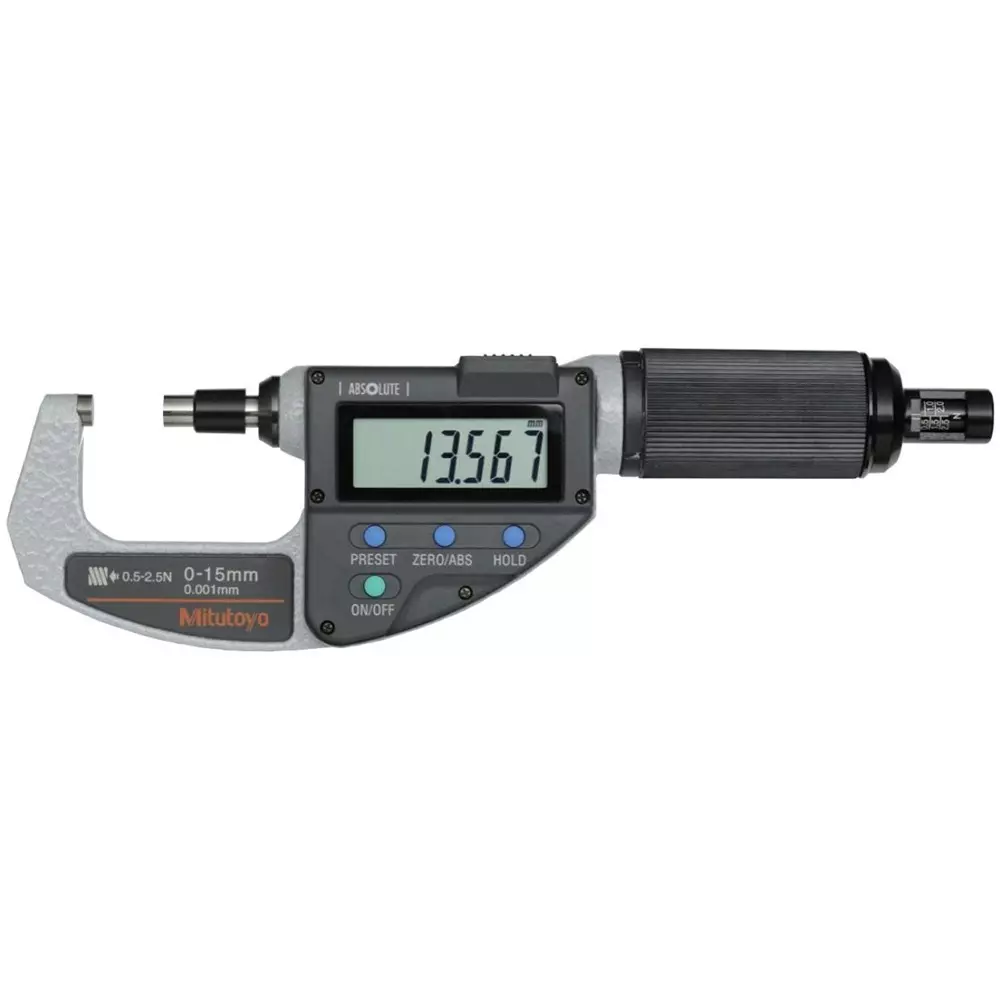

| Type of Product | Soft Touch Micro |
| Model No | CLM1-15QMX |
| Series | 227 |
| Country of Origin | Japan |
Type of Product |
Soft Touch Micro |
Model No |
CLM1-15QMX |
Series |
227 |
Country of Origin |
Japan |
Monotaro ID |
44061929 |
Measuring Force (N) |
0.5 to 2.5 (variable) [0.5, 1.0, 1.5, 2.0, 2.5] |
Included Components |
1 flathead screwdriver (No. 210183) |
Minimum Reading (mm) |
0.001 mm |
Type |
Variable measuring force digital micrometer |
Flatness (μm) |
0.3 μm |

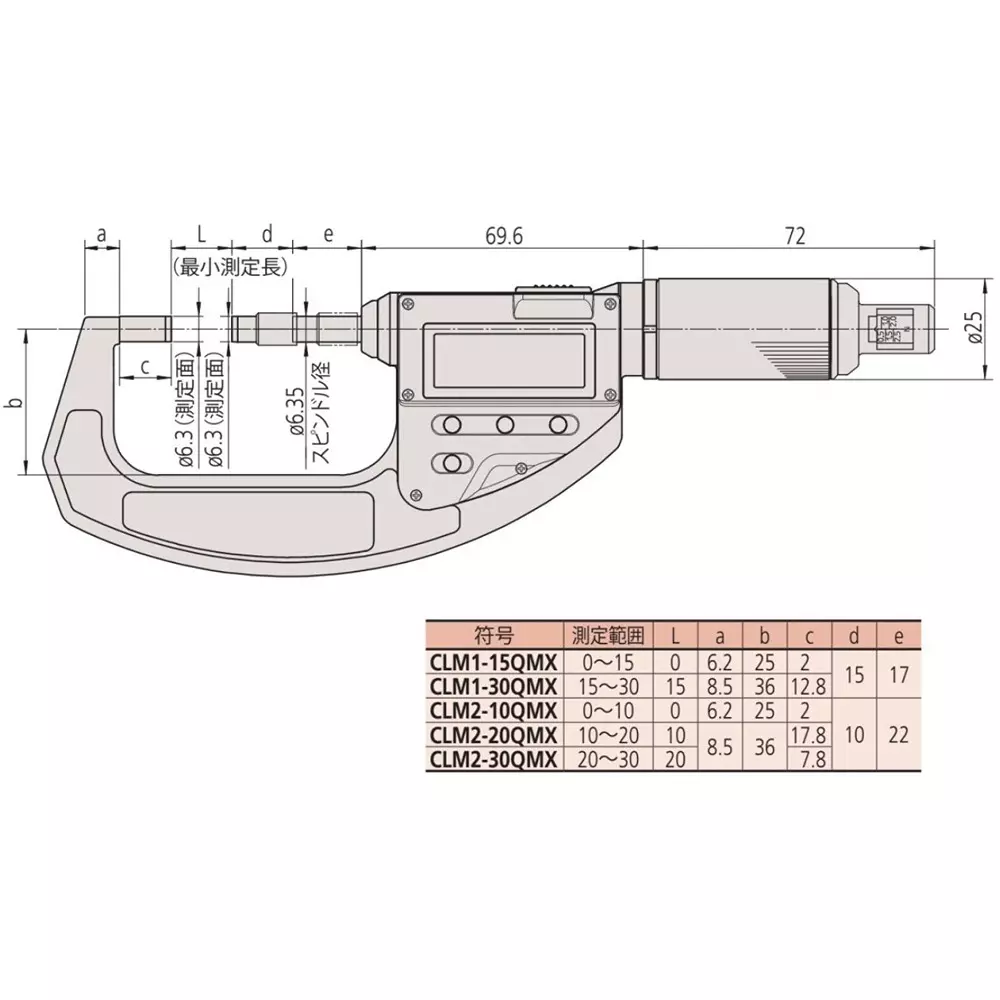

Dimensions B (mm) |
25 |
Function |
Variable measuring force function, origin set function, zero set function, hold function, function lock function, auto power ON / OFF function, measurement data output function, error alarm |
Power Supply |
One Button-Type Silver Oxide Battery SR44 (No. 938882) Is Included As Standard (The Button-Type Silver Oxide Battery Included As Standard Is For Monitor Use) |
Dimension L (mm) |
0 |
Operating Temperature Range |
5 - 40°C |
Output |
Measurement data output |
Dimensions D (mm) |
15 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Mitutoyo Corporation |
Measuring_Range |
0 - 15 mm |
Specifications |
, Error relative to set measuring force: ±(0.1 + set measuring force/10)N, Variation in measuring force: Within 0.1N (value when used in horizontal position within ±3°) |
Mass (g) |
300 |
Dimensions A (mm) |
6.2 |
References |
Measurement position: Horizontal position only (spindle inclination within ±3° is recommended) |
Dimensions E (mm) |
17 |
