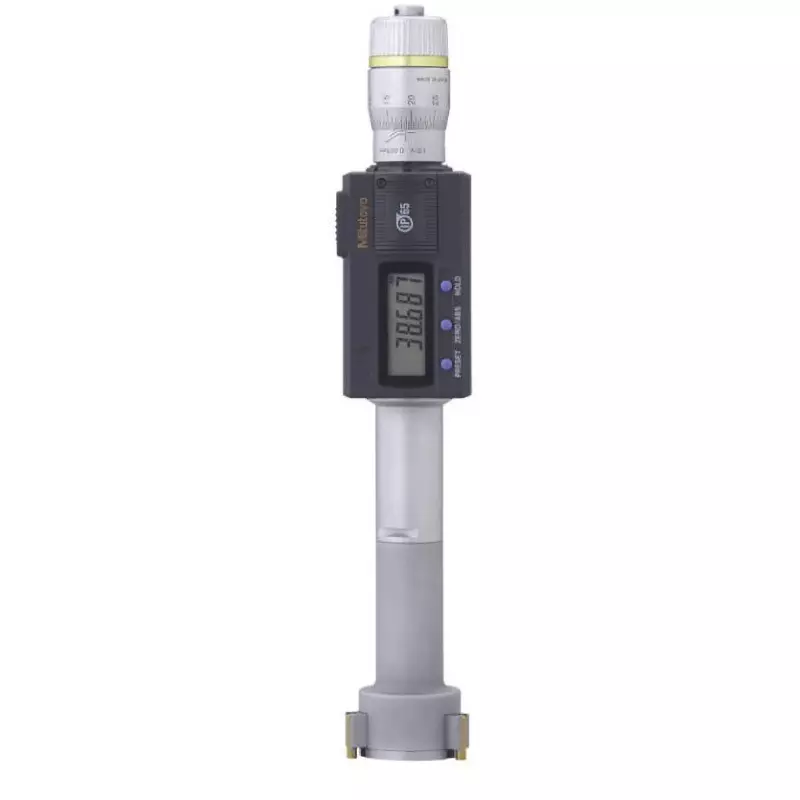

| Type of Product | Digimatic Hall Test |
| Model No | HTD-50R |
| Series | 468 |
| Country of Origin | Japan |
Type of Product |
Digimatic Hall Test |
Model No |
HTD-50R |
Series |
468 |
Country of Origin |
Japan |
Monotaro ID |
1996443 |
RoHS Directive |
Correspondence |
Included Components |
Button-shaped silver oxide battery x 1, spanner x 1, hexagon stick spanner x 1 |
Minimum Reading (mm) |
0.001 mm |
Display |
LCD display 6 digits and minus sign, character height 7.4mm |
Position Detection Method |
Electromagnetic Induction Rotary Encoder |
Function |
Zero set function, origin return function, hold function, preset function (2 can be stored), function lock function, auto power ON / OFF function, error alarm, output function |
Power Supply |
One Button-Type Silver Oxide Battery SR44 (No. 938882) Is Included As Standard (The Button-Type Silver Oxide Battery Included As Standard Is For Monitor Use) |
Protection Class |
IP65 |
Dimension L1 |
214.7 - 224.7 mm |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Mitutoyo Corporation |
Measuring_Range |
40 - 50 mm |
Product Code |
468-169 |
Maximum Permissible Error (μm) |
J MPE: ±3 (Maximum Difference 3) |
Dimension L3 (mm) |
0.3 or less |
Dimension L5 (mm) |
10 |
Dimension L2 |
103.8 mm |
Battery Life (Years) |
Approximately 1.2 under normal use conditions |
Dimension L4 |
13 mm |
