| Type of Product | Straight Blade Micrometer |
| Model No | BLM-75MX |
| Series | 422 |
| Country of Origin | Japan |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Straight Blade Micrometer |
Model No |
BLM-75MX |
Series |
422 |
Country of Origin |
Japan |
Tip Shape |
Type A |
Monotaro ID |
18483106 |
RoHS Directive |
Correspondence |
Included Components |
1 reference rod, 1 spanner (no.301336) |
Minimum Reading (mm) |
0.001 mm |
Type |
Digimatic (LCD) |
Parallelism (μm) |
3 |
Position Detection Method |
Electromagnetic Induction Rotary Encoder |

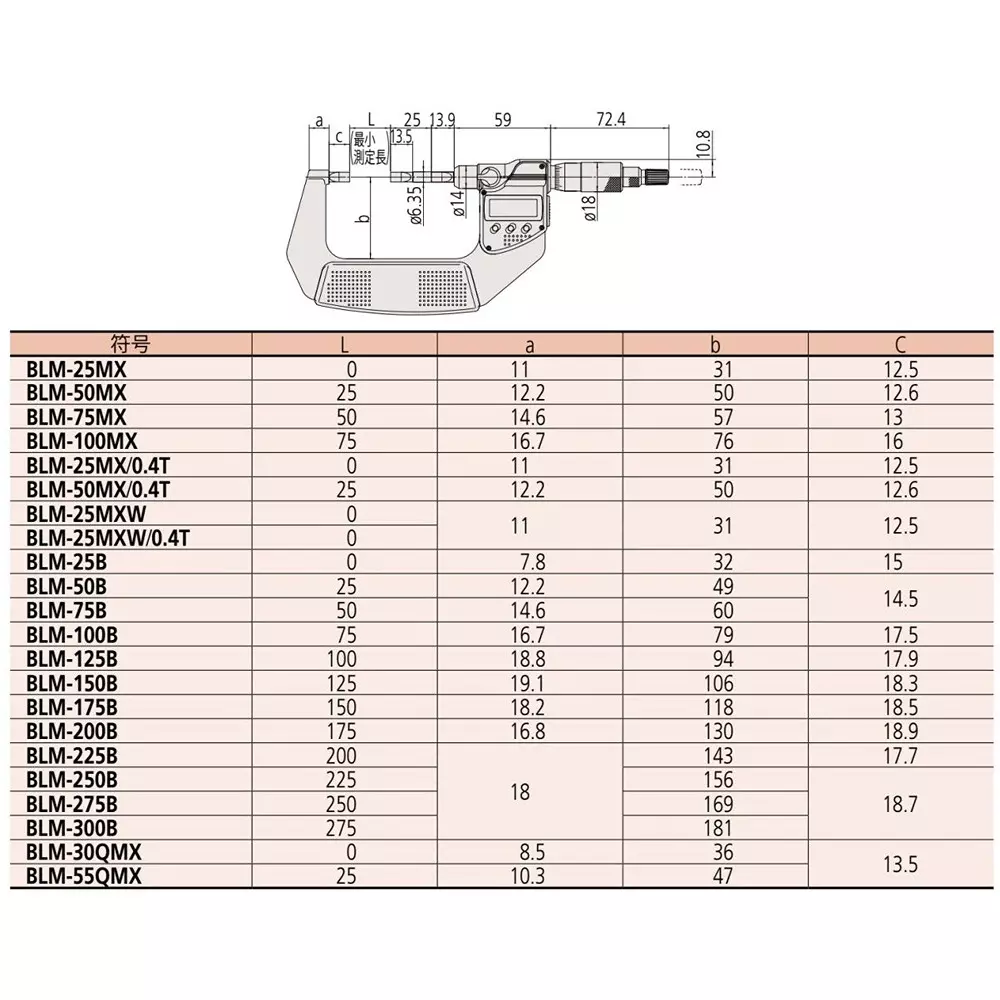

Dimensions C (mm) |
13 |
Dimensions B (mm) |
57 |
Function |
Origin setting function (ABS measurement system), zero setting function, hold function, measurement data output function, auto power ON/OFF function, error alarm, function lock function |
Power Supply |
One Button-Type Silver Oxide Battery SR44 (No. 938882) Is Included As Standard (The Button-Type Silver Oxide Battery Included As Standard Is For Monitor Use) |
Dimension L (mm) |
50 |
Trusco Part No. |
772-8956 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Mitutoyo Corporation |
Measuring_Range |
50 - 75 mm |
Specifications |
Measurement data wireless system U-WAVE-TM transmission unit<br> (IP67 type) 264-622, (buzzer type) 264-623, U-WAVE-TMB transmission unit (U-WAVE fit Bluetooth(R) version) (IP type) 264-626, (buzzer type) 264-627, U-WAVE-TM/TMB connection unit (IP67/buzzer type common) 02AZF310 |
Dimensions A (mm) |
14.6 |
Measurement Depth (mm) |
6 |
Blade Thickness (mm) |
0.75 |
Maximum Permissible Error (μm) |
J MPE：±3 |
