Ships within 25 days
View
View
View
View
| Type of Product | Dedicated Digimatic Micrometer PDM |
| Model No | PDM-25MX |
| Series | 369 |
| Country of Origin | Japan |
Type of Product |
Dedicated Digimatic Micrometer PDM |
Model No |
PDM-25MX |
Series |
369 |
Country of Origin |
Japan |
Monotaro ID |
18483727 |
RoHS Directive |
Correspondence |
Included Components |
1 reference rod, 1 spanner (no.301336) |
Minimum Reading (mm) |
0.001 mm |
Type |
Digimatic (LCD) |
Flatness (μm) |
1 μm |
Parallelism (μm) |
4 |
Position Detection Method |
Electromagnetic Induction Rotary Encoder |

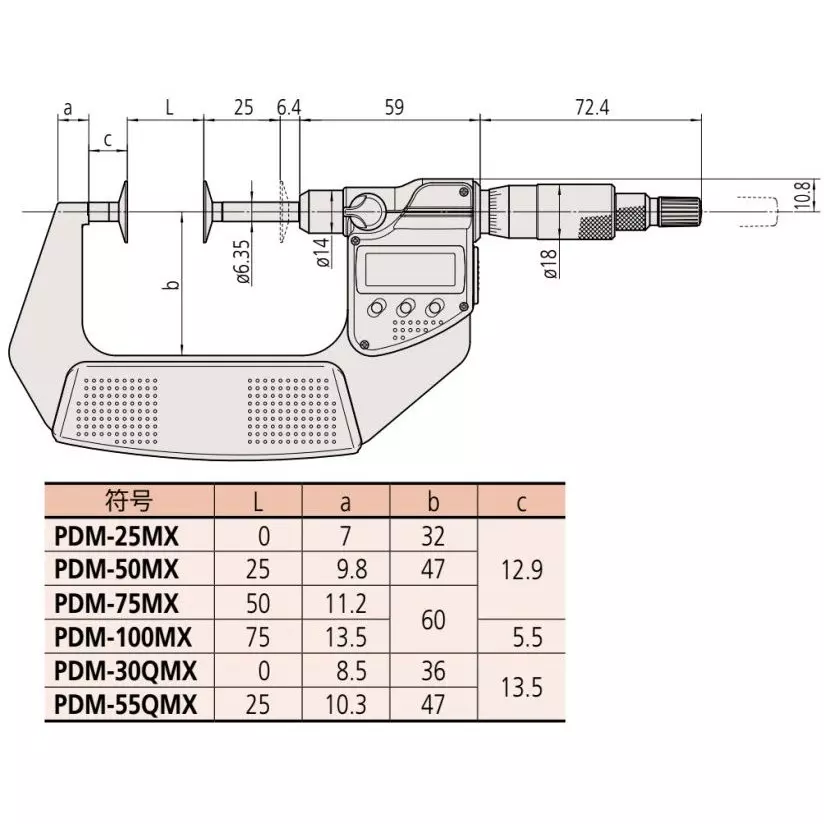

Dimensions C (mm) |
12.9 |
Dimensions B (mm) |
32 |
Function |
Origin setting function (ABS measurement system), zero setting function, hold function, measurement data output function, auto power ON/OFF function, error alarm, function lock function |
Power Supply |
One Button-Type Silver Oxide Battery SR44 (No. 938882) Is Included As Standard (The Button-Type Silver Oxide Battery Included As Standard Is For Monitor Use) |
Dimension L (mm) |
0 |
Contact Diameter |
20 mm |
Trusco Part No. |
772-9359 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Mitutoyo Corporation |
Measuring_Range |
0 - 25 mm |
Specifications |
Measurement data wireless system U-WAVE-TM transmission unit<br> (IP67 type) 264-622, (buzzer type) 264-623, U-WAVE-TMB transmitter unit (U-WAVE fit Bluetooth(R) version)<br> (IP type) 264-626, (buzzer type) 264-627, U-WAVE-TM/TMB connection unit<br> (IP67/Buzzer type) 02AZF310 |
Dimensions A (mm) |
7 |
Product Code |
369-250-30 |
Maximum Permissible Error (μm) |
J MPE：±4 |
