| Type of Product | Ratchet Thimble Micrometer |
| Model No | M327-50 |
| Series | 102 |
| Country of Origin | Japan |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Ratchet Thimble Micrometer |
Model No |
M327-50 |
Series |
102 |
Country of Origin |
Japan |
Monotaro ID |
37408847 |
RoHS Directive |
Correspondence |
Measuring Force (N) |
0 to 10 |
Included Components |
1 reference rod, 1 spanner (no.301336) |
Minimum Reading (mm) |
0.001 mm |
Flatness (μm) |
0.6 μm |
Parallelism (μm) |
2 |

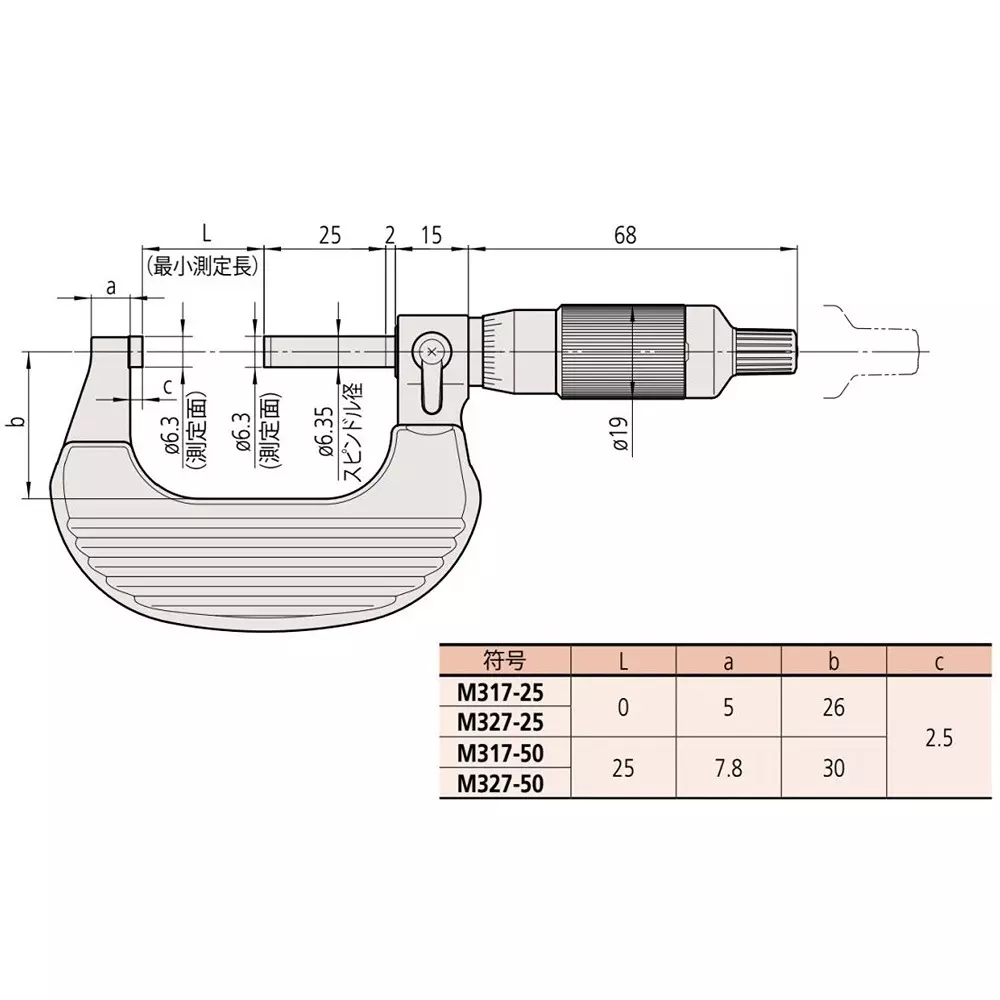

Dimensions C (mm) |
2.5 |
Dimensions B (mm) |
30 |
Dimension L (mm) |
25 |
Constant Pressure Device |
Ratchet Thimble |
Trusco Part No. |
423-6891 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Mitutoyo Corporation |
Measuring_Range |
25 - 50 mm |
Mass (g) |
270 |
Dimensions A (mm) |
7.8 |
Product Code |
102-708 |
Maximum Permissible Error (μm) |
J MPE：±2 |
Shape of Measurement Surface |
Standard type (with cemented carbide tip) |
