| Type of Product | Tooth Thickness Micrometer |
| Model No | GMA-75MX |
| Series | 323 |
| Country of Origin | Japan |
Type of Product |
Tooth Thickness Micrometer |
Model No |
GMA-75MX |
Series |
323 |
Country of Origin |
Japan |
Monotaro ID |
18483377 |
Included Components |
1 reference rod, 1 spanner (no.301336) |
Minimum Reading (mm) |
0.001 mm |
Type |
For tooth thickness, Digimatic (LCD) |
Flatness (μm) |
1 μm |
Parallelism (μm) |
6 |

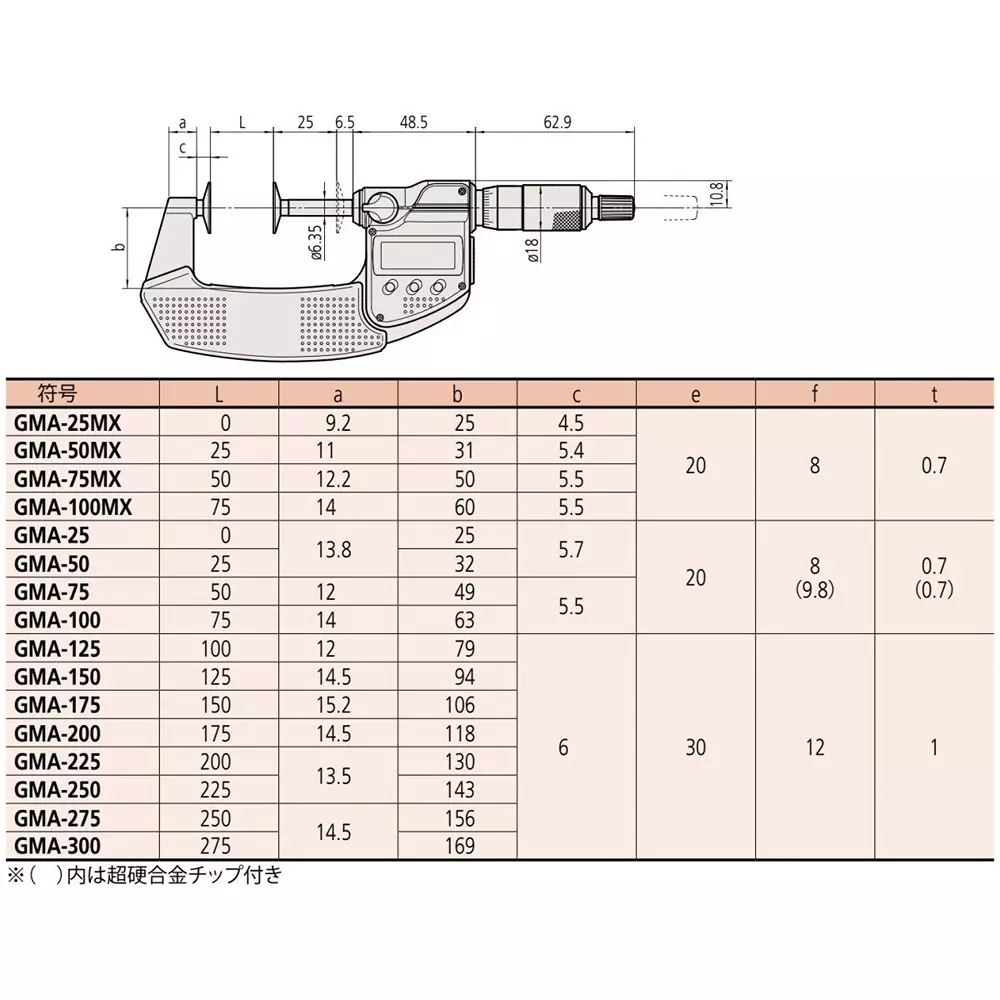

Dimensions B (mm) |
50 |
Function |
Origin setting function (ABS measurement system), zero setting function, hold function, measurement data output function, auto power ON/OFF function, error alarm, function lock function |
Power Supply |
One Button-Type Silver Oxide Battery SR44 (No. 938882) Is Included As Standard (The Button-Type Silver Oxide Battery Included As Standard Is For Monitor Use) |
Dimension L (mm) |
50 |
Protection Class |
IP65 |
Contact Diameter |
20 mm |
Trusco Part No. |
772-9197 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Mitutoyo Corporation |
Measuring_Range |
50 - 75 mm |
Specifications |
Measurement data wireless system with constant pressure device, U-WAVE-TM transmission unit (IP67 type) 264-622 (buzzer type) 264-623, U-WAVE-TMB transmission unit (U-WAVE fit Bluetooth(R) version) (IP type) 264-626 (buzzer type) 264-627, U-WAVE-TM/TMB connection unit (IP67/buzzer type common) 02AZF310 |
Dimensions A (mm) |
12.2 |
Dimension T |
0.7 mm |
Measurable Gear Module |
0.5 - 6 |
Dimensions E (mm) |
20 |
