| Type of Product | Hall Test |
| Model No | HT-88R |
| Series | 368 |
| Country of Origin | Japan |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Hall Test |
Model No |
HT-88R |
Series |
368 |
Country of Origin |
Japan |
Monotaro ID |
7210016 |
RoHS Directive |
Correspondence |
Minimum Reading (mm) |
0.005 mm |
Type |
Three-point type |

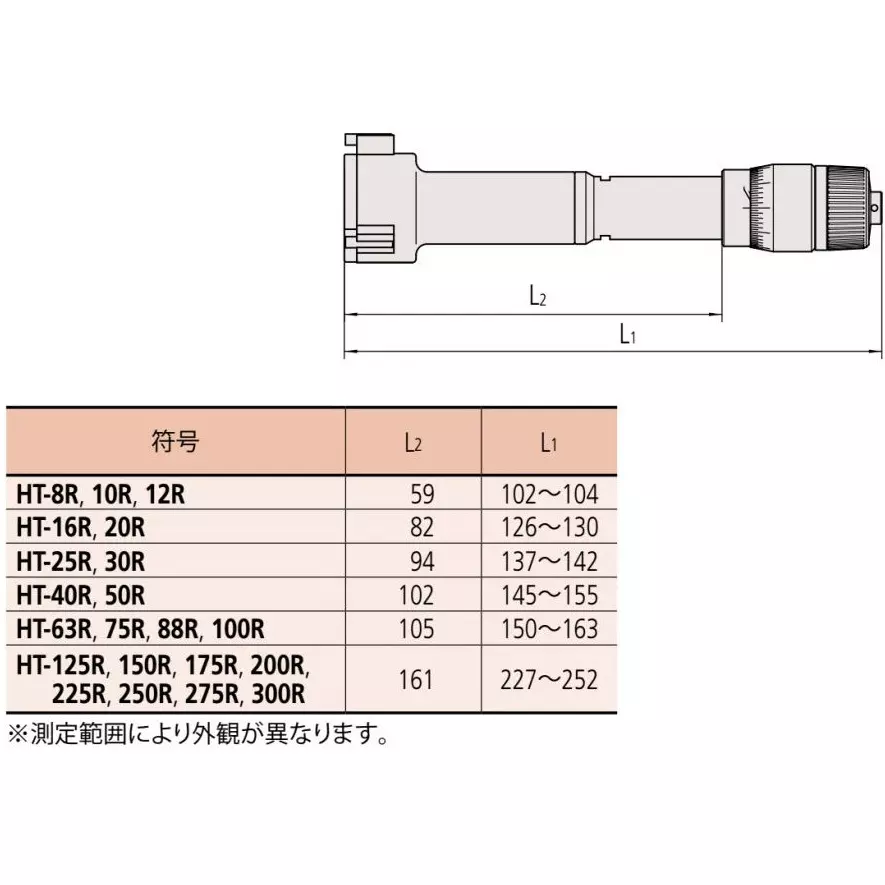

Dimension L1 |
150 - 163 mm |
Probe |
Titanium coating |
Trusco Part No. |
288-3147 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Mitutoyo Corporation |
Measuring_Range |
75 - 88 mm |
Specifications |
Extension rod (optional): 952623 (150mm) |
Product Code |
368-172 |
Maximum Permissible Error (μm) |
J MPE: ±4 (Maximum Difference 4) |
Dimension L3 (mm) |
0.3 or less |
Dimension L5 (mm) |
14 |
Dimension L2 |
105 mm |
Dimension L4 |
17 mm |
