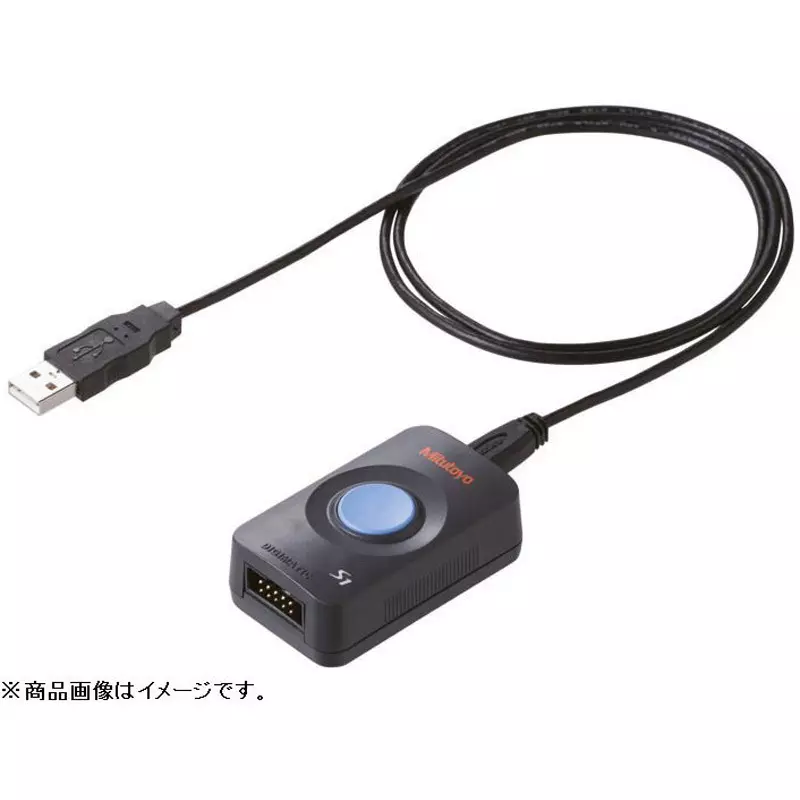

| Type of Product | Digimatic Micro + Input Tool (USB) Set |
| Model No | MDC-125MX+05CZA662+IT-020U |
| Country of Origin | Japan |
| Instrumental Error (μm) | ±2 |
Type of Product |
Digimatic Micro + Input Tool (USB) Set |
Model No |
MDC-125MX+05CZA662+IT-020U |
Country of Origin |
Japan |
Instrumental Error (μm) |
±2 |
Monotaro ID |
37774506 |
Measuring Force (N) |
5-10 (Ratchet Thimble is 7-12 |
Minimum Reading (mm) |
0.001 mm |
Flatness (μm) |
0.3 μm |
Parallelism (μm) |
[2+Maximum measuring length (mm)/100] (rounded down) |
Position Detection Method |
Electromagnetic Induction Rotary Encoder |
Power Supply |
One Button-Type Silver Oxide Battery SR44 (No. 938882) Is Included As Standard (The Button-Type Silver Oxide Battery Included As Standard Is For Monitor Use) |
Protection Class |
IP65(IEC60529) |
Constant Pressure Device |
Ratchet Stop |
Battery Life |
Approximately 2.4 Years Under Normal Use (Mdc-Mx/Mxt/Px/Pxt) |
Quantization Error |
± 1 Count Not Included |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Mitutoyo Corporation |
Measuring_Range |
100 - 125 mm |
Pack of |
1 Kit |
Material (Measuring Surface) |
With cemented carbide tip |
