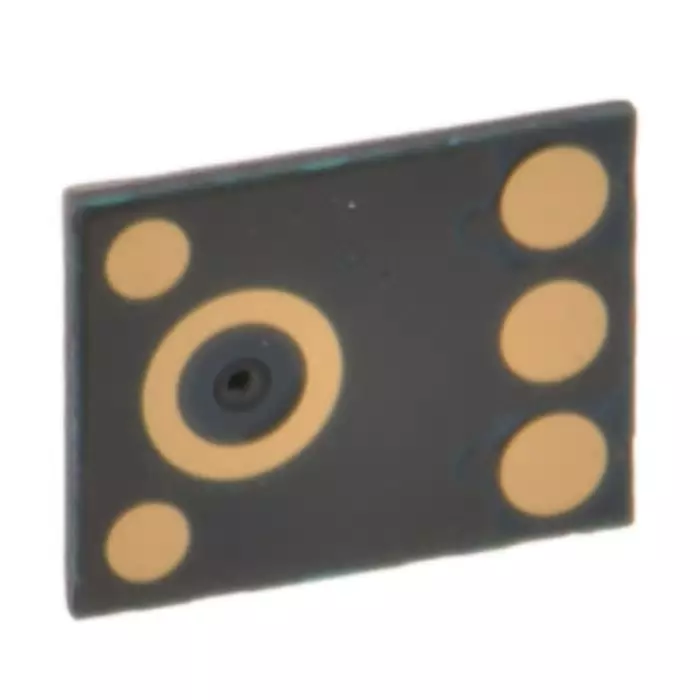

Type of Product | Microphone Condenser |
Sensitivity | -44dB |
Dimension | 4.82x3.86x1.1 mm |
Signal to Noise Ratio | 62dB(A) |
Type of Product |
Microphone Condenser |
Sensitivity |
-44dB |
Dimension |
4.82x3.86x1.1 mm |
Signal to Noise Ratio |
62dB(A) |
Height |
1.1 mm |
Mounting Type |
Surface Mount |
Directivity |
Omni-Directional |
Country of Origin |
Taiwan, Province Of China |
Product Code |
8837923 |
Output Impedance |
0.2 kΩ |
Maximum Operating Temperature |
+85°C |
Standard Operating Voltage |
1.5-3.36V |
Minimum Operating Temperature |
-40°C |
Name of Manufacturer/Packer/Importer |
InvenSense |
Manufacturer Part Number |
INMP411ACEZ-R0 |
Minimum Frequency |
28Hz |
Maximum Supply Current |
0.25 mA |
Maximum Frequency |
20 kHz |
