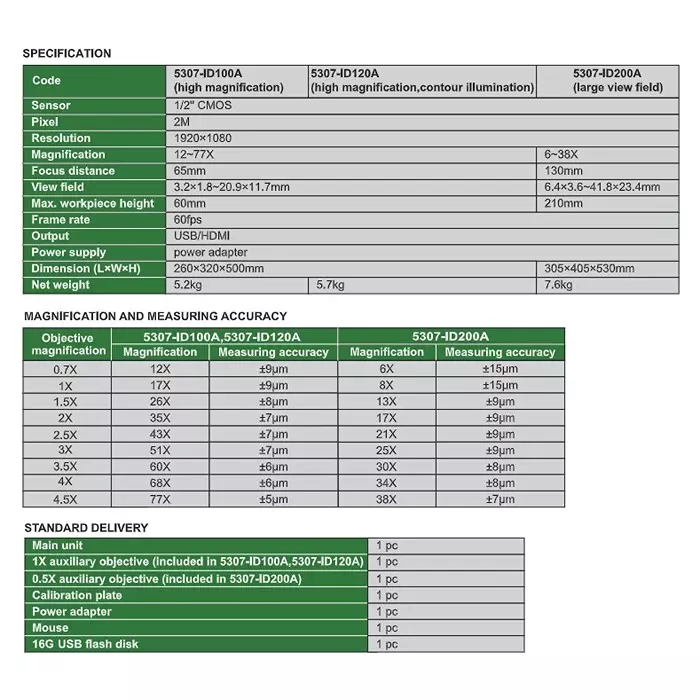

| Type of Product | Digital Measuring Microscope |
| Magnification | 6X - 38X |
| View Field | 6.4×3.6 to 41.8×23.4 mm |
| Package Contains | 1 x Main Unit, 1 x Auxiliary Objective, 0.5X Auxiliary Objective, 1 x Calibration Plate, 1 x Power Adapter, 1 x Mouse, 1 x 16G USB Flash Disk |
Type of Product |
Digital Measuring Microscope |
Magnification |
6X - 38X |
View Field |
6.4×3.6 to 41.8×23.4 mm |
Package Contains |
1 x Main Unit, 1 x Auxiliary Objective, 0.5X Auxiliary Objective, 1 x Calibration Plate, 1 x Power Adapter, 1 x Mouse, 1 x 16G USB Flash Disk |
Model No |
5307-ID200A |
Output |
USB/HDMI |
Pixels |
2M |
Dimension |
260x320x500 mm |
Features |

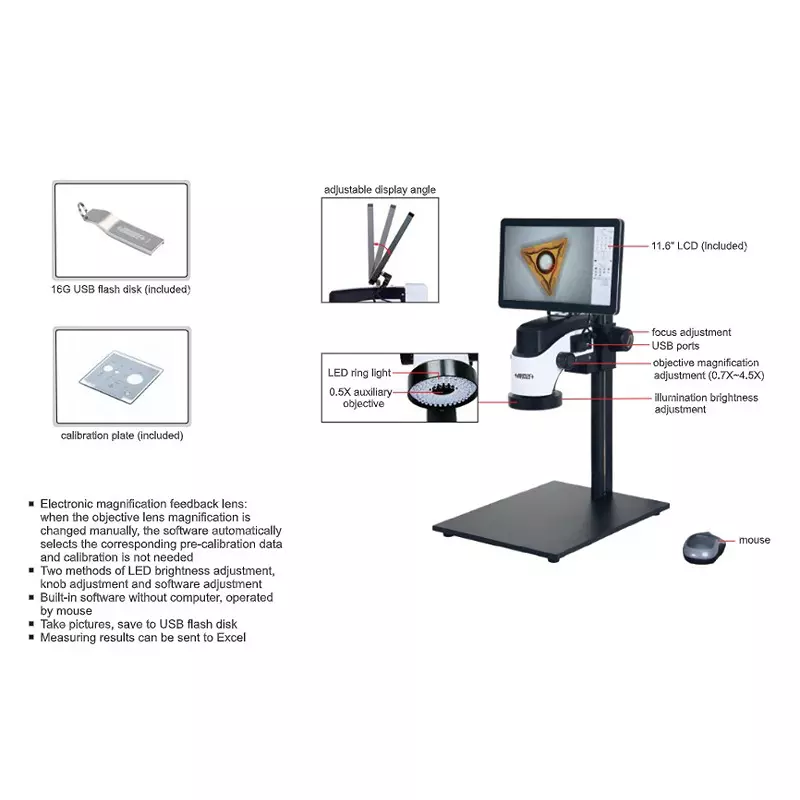

Electronic magnification feedback lens: when the objective lens magnification is changed manually, the software automatically selects the corresponding pre-calibration data and calibration is not needed Two methods of LED brightness adjustment, knob adjustment and software adjustment Built-in software without computer, operated by mouse Take pictures, save to USB flash disk Measuring results can be sent to Excel |
Power Supply |
Power Adapter |
Frame Rate |
60 fps |
Focus Distance |
130 mm |
Sensor |
1/2 inch (12.7 mm) CMOS |
Country of Origin |
China |
Resolution |
1920x1080 |
Type |
Standard Type |
Name of Manufacturer/Packer/Importer |
INSZIE |
Workpiece Height |
210 mm |
Net Weight |
7.6 Kg |
