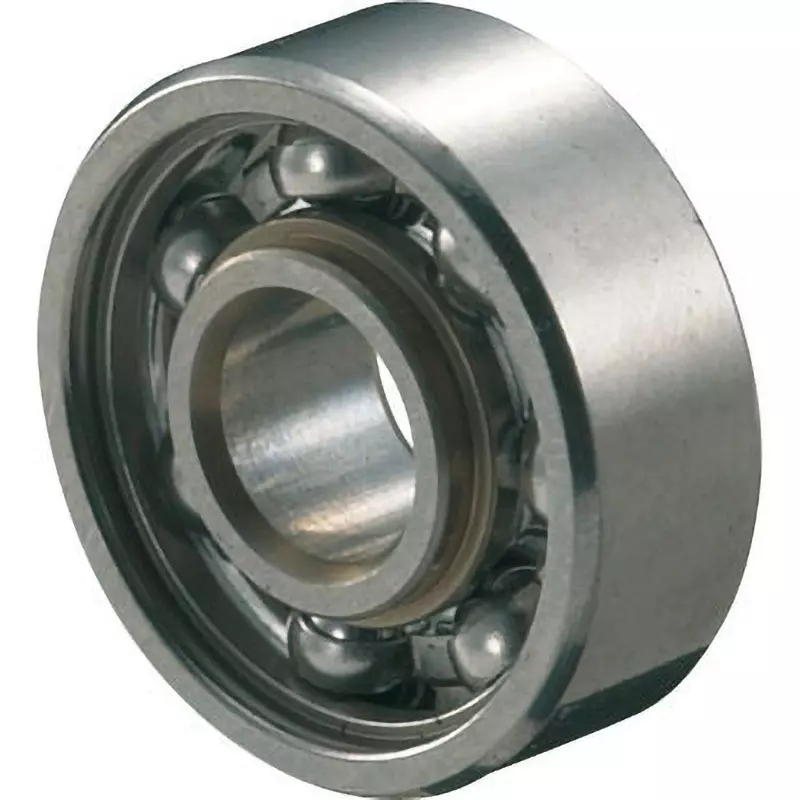

| Type of Product | Miniature Ball Bearing / Small Diameter Ball Bearing (Open Type) |
| Model No | BC8-14 |
| Material | High Carbon Steel |
| Mass (g) | 1.8 |
Type of Product |
Miniature Ball Bearing / Small Diameter Ball Bearing (Open Type) |
Model No |
BC8-14 |
Material |
High Carbon Steel |
Mass (g) |
1.8 |
Monotaro ID |
351522 |
Load direction |
Radial |
Rolling element material |
High Carbon Chromium Bearing Steel |
JIS grade |
0 |
Outer ring type |
Flat |
No. of Track Trains |
Single row |
Shield Shape |
Open type |
Race ring shape |
Deep Groove Ball Bearings |
Flange |
Without flange |

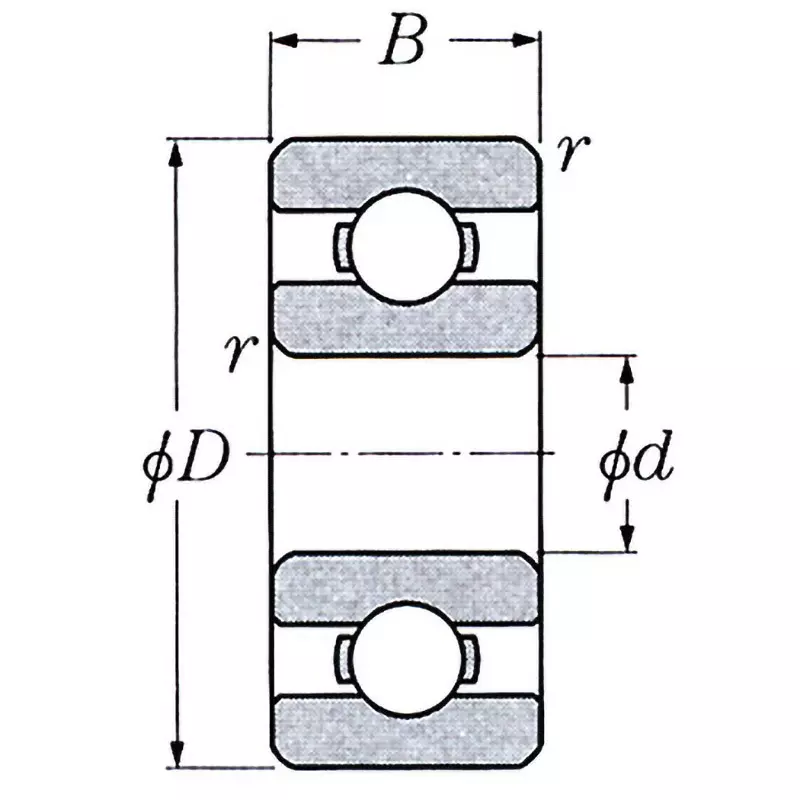

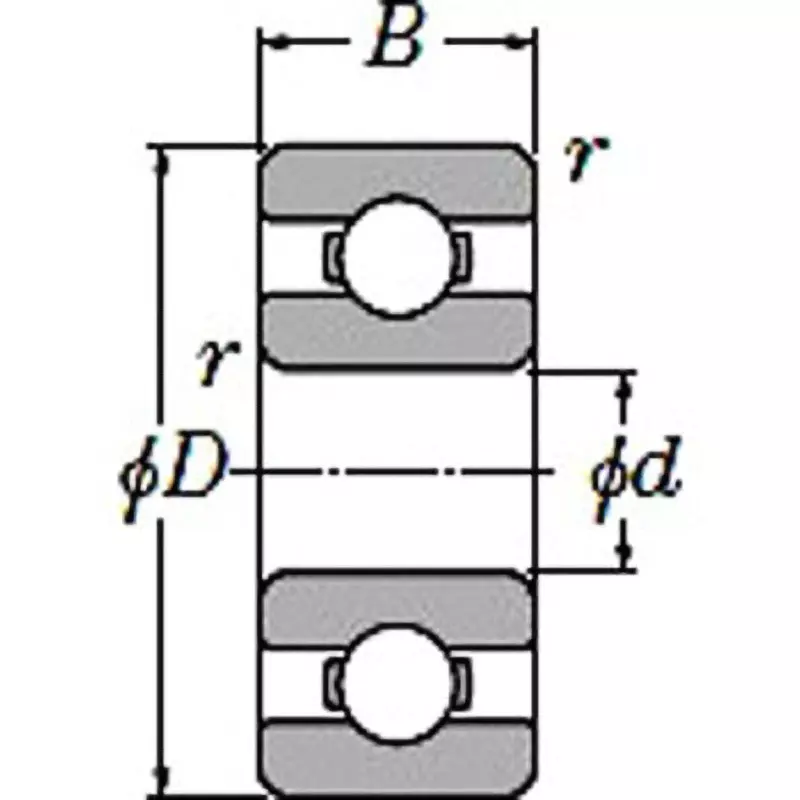

Outer Diameter D (Φmm) |
14 |
Basic static load rating Cor (N) |
385 |
Width B (mm) |
3.5 |
Basic dynamic load rating Cr (N) |
820 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
NTN Corporation |
Chamfer Dimension r (mm) |
0.15 min |
Permissible Speed (min-1) Oil Lubrication |
43000 |
Inner Diameter (mm) |
8 |
Permissible Speed (min-1) Grease Lubrication |
36000 |
