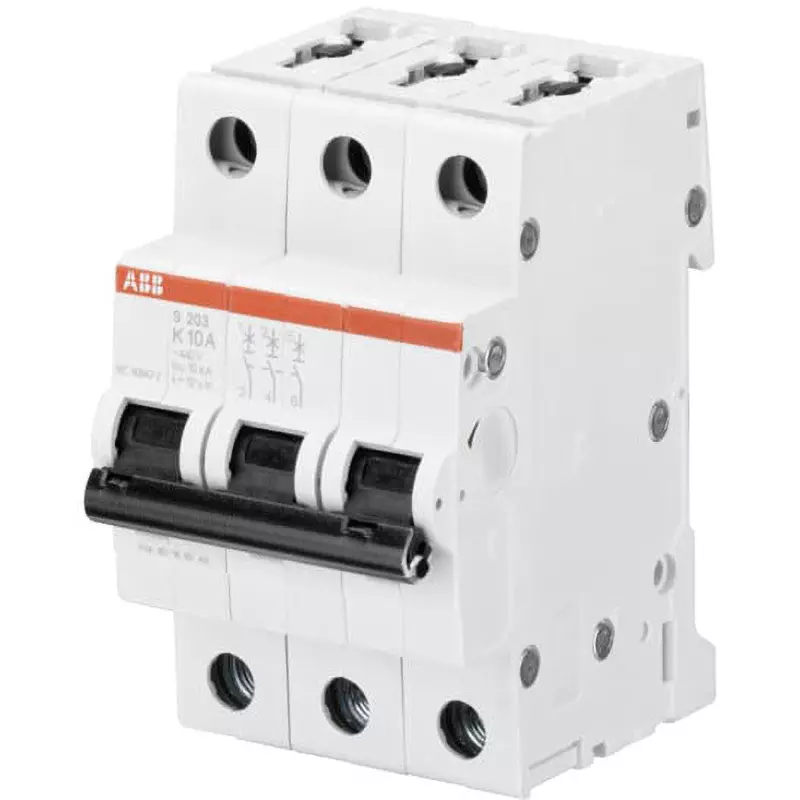

| Type of Product | Miniature Circuit Breaker |
| Model No | S203-K10 |
| Rated Current (A) | 10 |
| Protection Class | IP20, IP40 (in a covered enclosure) (compliant with EN60529) |
Type of Product |
Miniature Circuit Breaker |
Model No |
S203-K10 |
Rated Current (A) |
10 |
Protection Class |
IP20, IP40 (in a covered enclosure) (compliant with EN60529) |
Shock Resistance |
25g, 2 shocks, 13ms (compliant with IEC/EN60068-2-27) |
Standard |
PSE certified, IEC/EN 60898-1, IEC/EN 60947-2, UL 1077 |
Mechanical Durability |
20000 times |
Specifications |
Housing: Insulation group II, RAL 7035; Toggle: Insulation group II, black, sealable |
Height (mm) |
104 |
Width (mm) |
52.5 |
Country of Origin |
Japan |
Monotaro ID |
56999977 |
Name of Manufacturer/Packer/Importer |
ABB |
Length (mm) |
69 |
Import Country |
Direct Import from Japan |
Rated Frequency (Hz) |
50/60 |
Environmental Conditions to Use |
28 cycles of 55°C/90-96% and 25°C/95-100% (compliant with IEC/EN60068-2-30) |
Electrodes |
3P |
Ambient Temperature (℃) |
-25 to 55 |
Vibration Resistance |
5g-20 cycles 5...150...5Hz (load 0.8xIn) (compliant with IEC/EN60068-2-6) |
Contact Specifications |
Position display: Toggle top display (I ON / 0 OFF), Real CPI (Red: ON / Green: OFF) |
Pollution Degree (Environment to Use) |
3 |
Rated Insulation Voltage (V) |
440 AC (phase-to-phase) (according to IEC/EN60664-1) |
Over Voltage Protection |
Category III |
