| Type of Product | Safety Breaker |
| Model No | B403EA40PTB |
| Rated Current (A) | 400 |
| Type | B-403EA |
Type of Product |
Safety Breaker |
Model No |
B403EA40PTB |
Rated Current (A) |
400 |
Type |
B-403EA |
Suitable For |
[Mountable accessory: Barrier (BA)] Included on the power supply side (PHS-4T), [Mountable accessory: Terminal cover, surface type (TMC)] Sold separately (TMC-403EA) |
Country of Origin |
Japan |
Included Components |
Mounting screws (M6x35)x4, wood screws (6.2x38)x4, terminal cover phase barrierx2, hex boltsx6 (M12x35, including nuts, etc.) |
Terminal |
Bar terminal type M12 |
Attached Device |
(AL) Alarm switch, (TB) Terminal block |
Monotaro ID |
73002408 |
Connection Type |
Surface type |
Name of Manufacturer/Packer/Importer |
Tenpearl Industries Co., Ltd. |
Import Country |
Direct Import from Japan |
No. of Poles / Elements |
3P3E |
Reverse Connection |
Possible |
Rated operating voltage (AC V) |
100-200-415 |
Frame (AF) |
400 |
Rated Impulse Withstand Voltage (kV) |
6(Uimp) |
Trip button |
Included |
Mass (Kg) |
4.6 |
Overcurrent Tripper Type |
Thermodynamic electromagnetic |

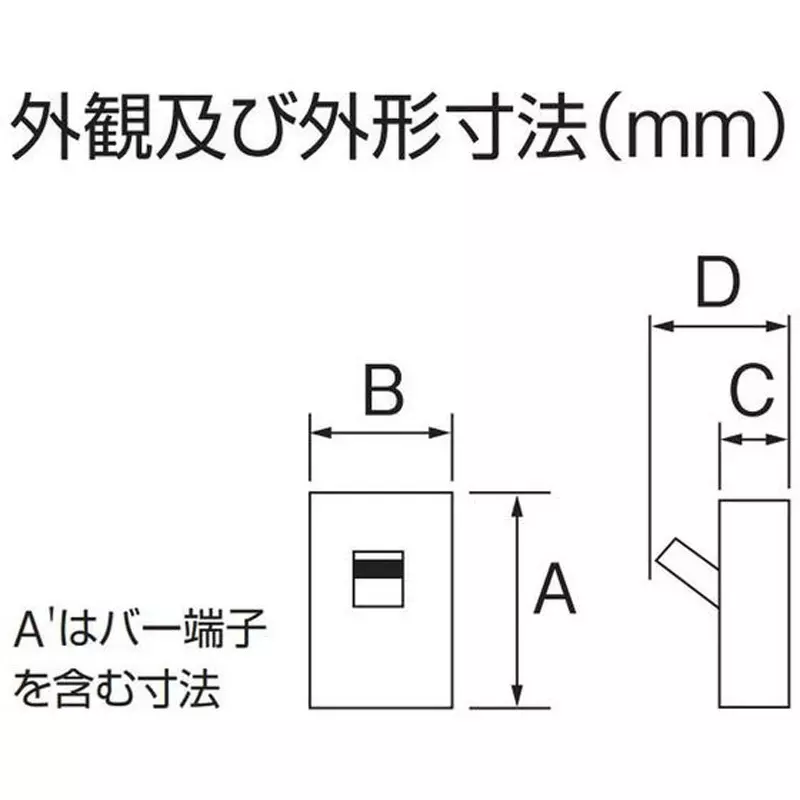

External dimensions (mm) |
257, 341 (dimensions with terminal cover) |
Name |
E Series (Economy Type) |
External Dimensions / Height (mm) |
103, 132 (height to the handle) |
JIS Standard |
JIS C 8201-2-1 Ann2 |
