| Type of Product | Safety Breaker |
| Model No | B153EC15PTB |
| Rated Current (A) | 150 |
| Type | B-153EC |
Type of Product |
Safety Breaker |
Model No |
B153EC15PTB |
Rated Current (A) |
150 |
Type |
B-153EC |
Suitable For |
[Compatible accessory: Terminal cover, surface type (TMC)] Included (TMC-153EC) |
Country of Origin |
Japan |
Included Components |
Mounting screws (M4x60)x2, wood screws (4x60)x2, terminal coversx2, crimp terminals, sealing platesx2 |
Terminal |
Crimp terminal type (crimp terminals included) M8 |
Attached Device |
(AL) Alarm switch, (TB) Terminal block |
Monotaro ID |
73002347 |
Connection Type |
Surface type |
Name of Manufacturer/Packer/Importer |
Tenpearl Industries Co., Ltd. |
Import Country |
Direct Import from Japan |
No. of Poles / Elements |
3P3E |
Reverse Connection |
Possible |
Rated Impulse Withstand Voltage (kV) |
6(Uimp) |
Trip button |
Included |
Mass (Kg) |
0.65 |
Overcurrent Tripper Type |
Thermodynamic electromagnetic |
Name |
E Series (Economy Type) |

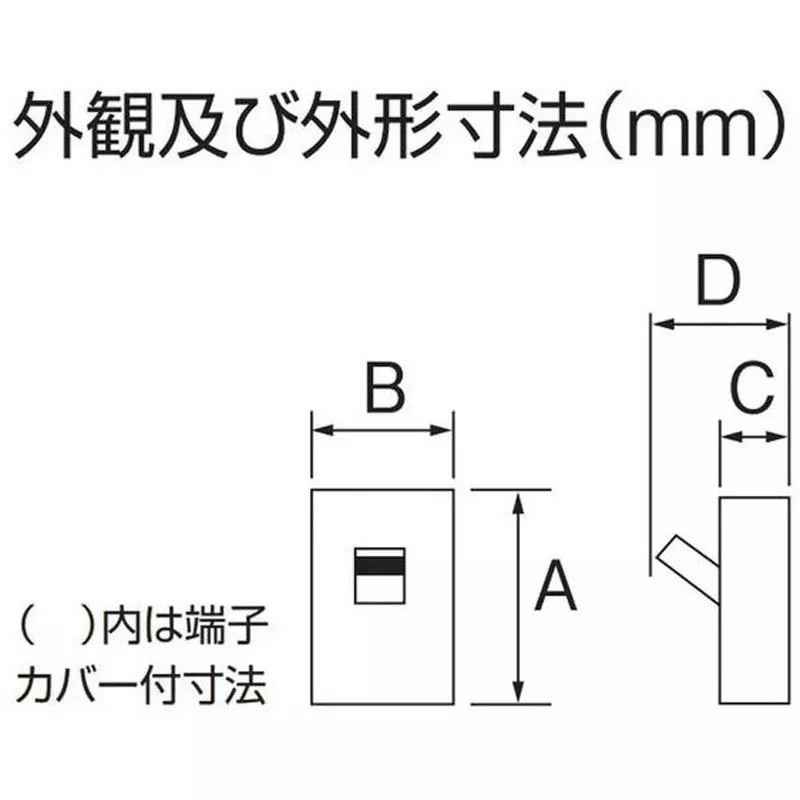

External Dimensions / Height (mm) |
60, 80 (height to the handle) |
Remark |
For motor protection |
Motor Capacity |
37 kW (AC 200 V) |
Connectable Wire (mm2) |
Up to 60 |
Applicable crimp terminal |
[Nominal cross-sectional area 60 mm² ] CB60-8 |
