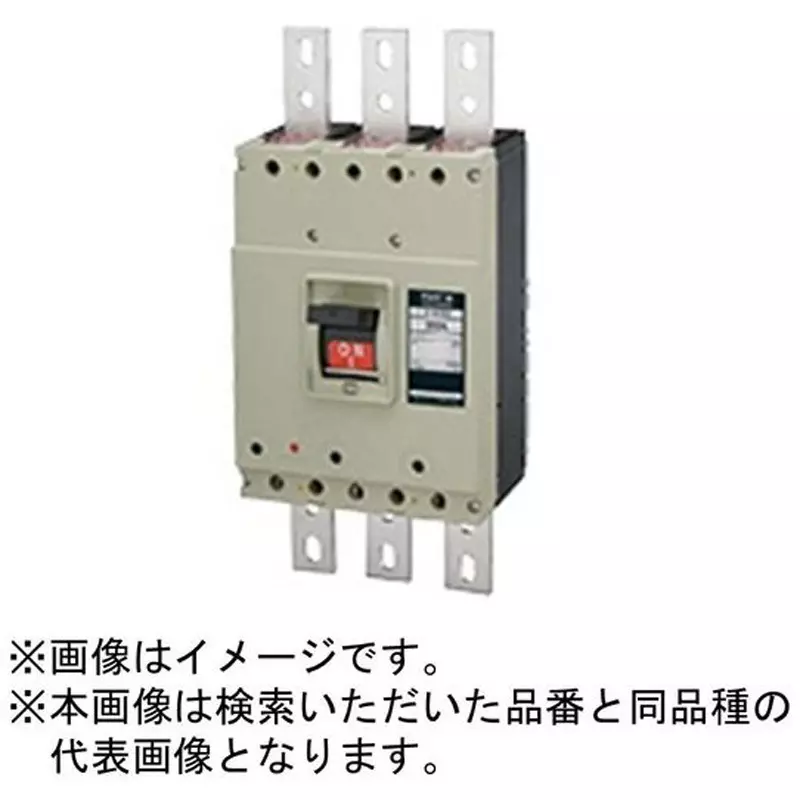

| Type of Product | Safety Breaker |
| Model No | B602EC50 |
| Rated Current (A) | 500 |
| Type | B-602EC |
Type of Product |
Safety Breaker |
Model No |
B602EC50 |
Rated Current (A) |
500 |
Type |
B-602EC |
Suitable For |
[Mountable accessory: Barrier (BA)] Included on the power supply side (PHS-5), [Mountable accessory: Terminal cover, surface type (TMC)] Sold separately (TMC-5D) |
Country of Origin |
Japan |
Included Components |
Mounting screws (M6x45)x4, phase barrierx2, wiring bolts (M12x40)x12 |
Terminal |
Bar terminal type M12 |
Rated Breaking Capacity (kA) |
[JIS C 8201-2-1 Ann2(Icu/Ics) DC 125 V] 40/20, [JIS C 8201-2-1 Ann2(Icu/Ics) DC 250 V] 40/20 |
Monotaro ID |
73002417 |
Connection Type |
Surface type |
Name of Manufacturer/Packer/Importer |
Tenpearl Industries Co., Ltd. |
Import Country |
Direct Import from Japan |
No. of Poles / Elements |
2P2E |
Reverse Connection |
Possible (This is a "reverse connection possible type" as defined in JEAC8001 Document 3-5-8. For grid connection applications such as solar power generation systems, connect the commercial power supply to the power source side and the power generation system side to the load side. Regardless of the application, do not connect the commercial power supply to the load side.) |
Rated operating voltage (AC V) |
200���415 |
Frame (AF) |
600 |
Rated Impulse Withstand Voltage (kV) |
8(Uimp) |
Trip button |
Included |
Rated Operating Voltage (DC V) |
250 |
Mass (Kg) |
10 |
Overcurrent Tripper Type |
thermaladjustableelectromagnetic |

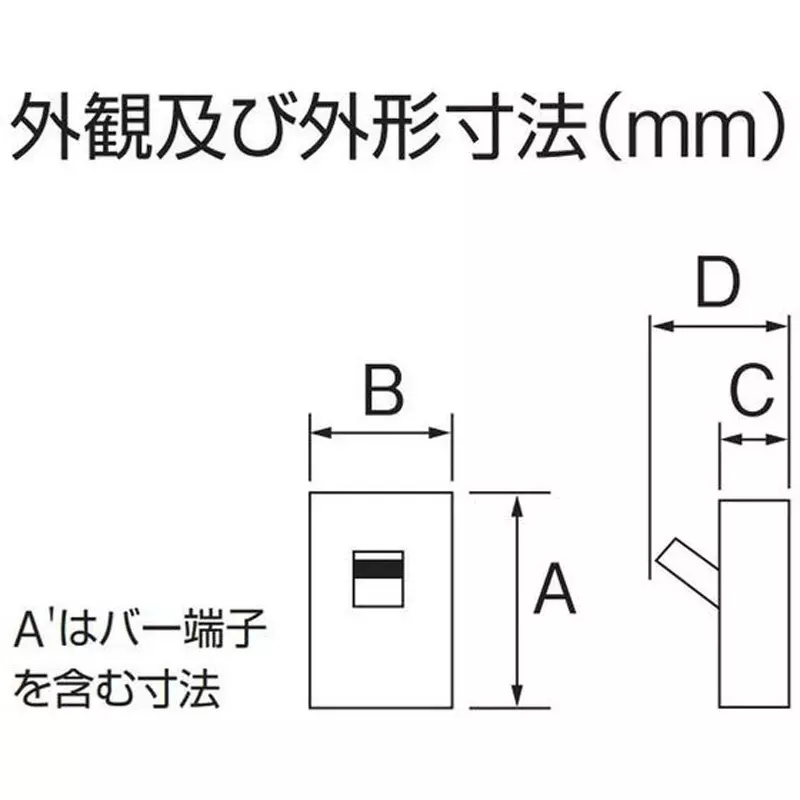

External dimensions (mm) |
274, 434 (dimensions with terminal cover) |
Name |
E Series (Economy Type) |
External Dimensions / Height (mm) |
103, 141 (height to the handle) |
