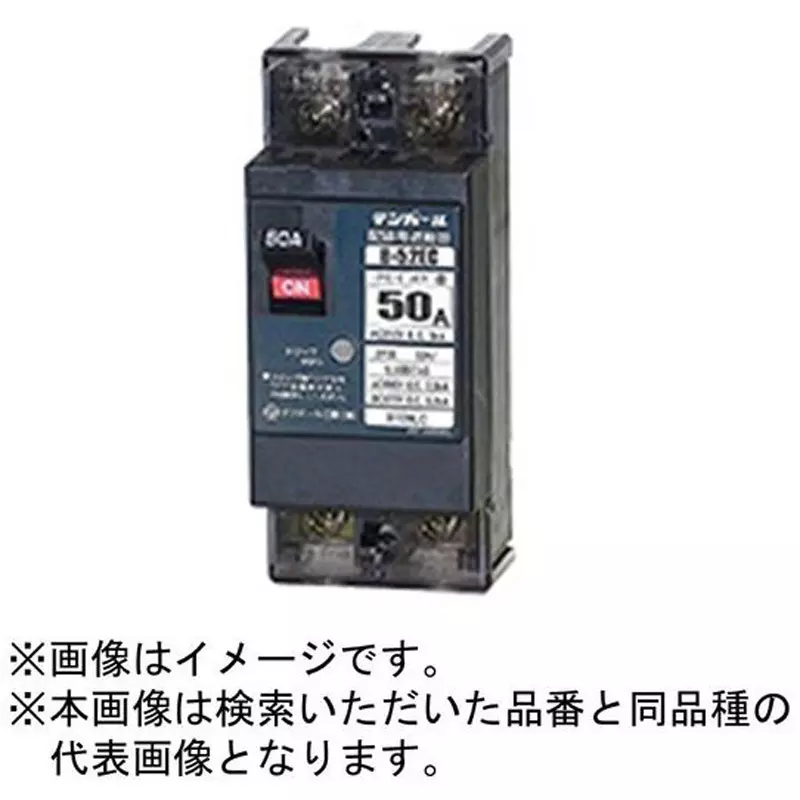

| Type of Product | Safety Breaker |
| Model No | B52EC15PTB |
| Rated Current (A) | 15 |
| Type | B-52EC |
Type of Product |
Safety Breaker |
Model No |
B52EC15PTB |
Rated Current (A) |
15 |
Type |
B-52EC |
Suitable For |
[Mountable accessory: Surface mount (TMC)] Included (TMC-62EC) |
Country of Origin |
Japan |
Included Components |
Mounting screws (M4x25)x2, wood screws (3.5x28)x2, terminal coversx2, sealing platesx2 |
Terminal |
Wire clamping method (crimp terminals can be used) M5 |
Attached Device |
(AL) Alarm switch, (TB) Terminal block |
Rated Breaking Capacity (kA) |
[JIS C 8201-2-1 Ann2(Icu/Ics) AC 100/200 V] 5/2, [JIS C 8201-2-1 Ann2(Icu/Ics) DC 125 V] 0.7/- |
Monotaro ID |
73002049 |
Connection Type |
Surface type |
Name of Manufacturer/Packer/Importer |
Tenpearl Industries Co., Ltd. |
Import Country |
Direct Import from Japan |
No. of Poles / Elements |
2P2E |
Reverse Connection |
Possible |
Frame (AF) |
50 |
Rated Impulse Withstand Voltage (kV) |
6(Uimp) |
Trip button |
Included |
Mass (Kg) |
0.22 |
Overcurrent Tripper Type |
Thermodynamic electromagnetic |
Name |
E Series (Economy Type) |

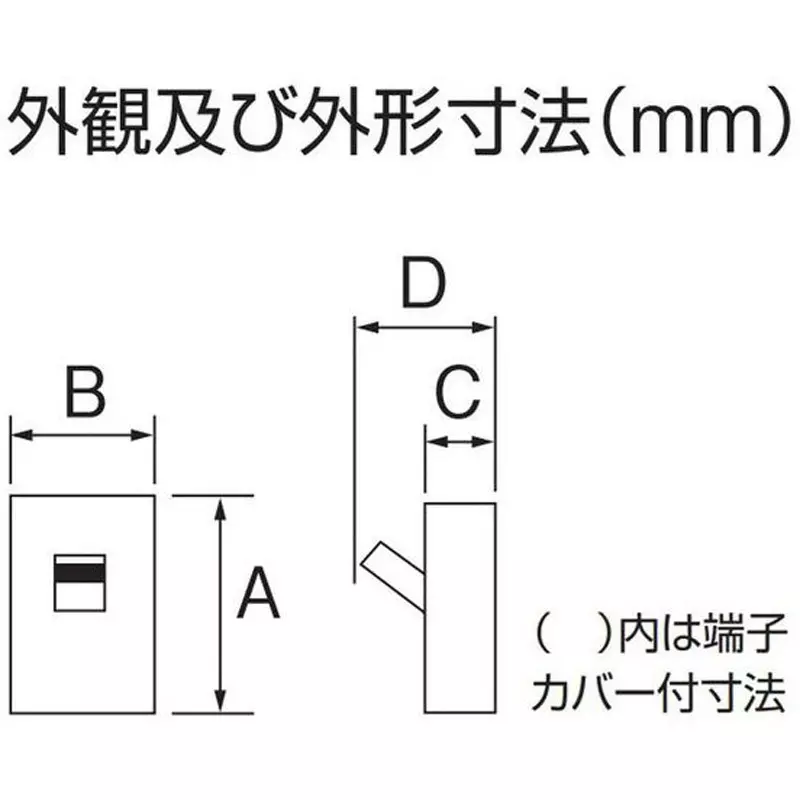

External Dimensions / Height (mm) |
49, 67.5 (height to the handle) |
Connectable Wire (mm2) |
Up to 22 |
Applicable crimp terminal |
[Nominal cross-sectional area 2 mm² ] 2-5, [Nominal cross-sectional area 5.5 mm² ] 5.5-5, [Nominal cross-sectional area 8 mm² ] 8-5, [Nominal cross-sectional area 14 mm² ] 14-5 |
