| Type of Product | Safety Breaker |
| Model No | B602EC50F |
| Rated Current (A) | 500 |
| Type | B-602EC |
Type of Product |
Safety Breaker |
Model No |
B602EC50F |
Rated Current (A) |
500 |
Type |
B-602EC |
Country of Origin |
Japan |
Included Components |
Wiring bolts (M12x40)x12 |
Terminal |
Bar stud system |
Rated Breaking Capacity (kA) |
[JIS C 8201-2-1 Ann2(Icu/Ics) DC 125 V] 40/20, [JIS C 8201-2-1 Ann2(Icu/Ics) DC 250 V] 40/20 |
Monotaro ID |
73002460 |

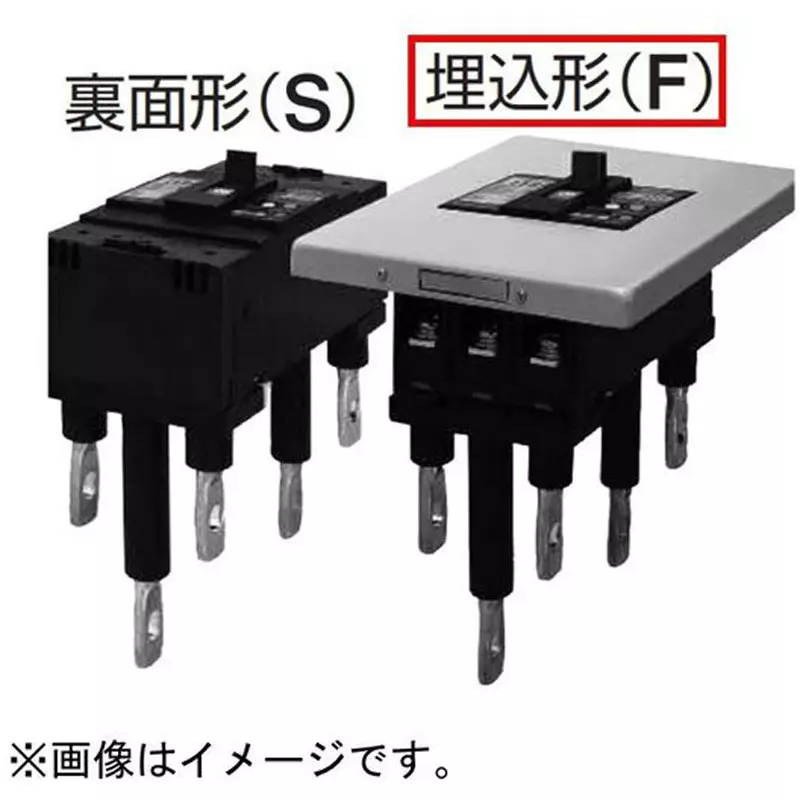

Connection Type |
Embedded type |
Name of Manufacturer/Packer/Importer |
Tenpearl Industries Co., Ltd. |
Import Country |
Direct Import from Japan |
No. of Poles / Elements |
2P2E |
Reverse Connection |
Possible (This is a "reverse connection possible" type as defined in JEAC8001 Document 3-5-8 of the Internal Wiring Regulations. For grid-connected applications such as solar power generation systems, connect the commercial power supply to the power source side and the power generation system side to the load side. Regardless of the application, do not connect the commercial power supply to the load side.) |
Rated operating voltage (AC V) |
200���415 |
Frame (AF) |
600 |
Rated Impulse Withstand Voltage (kV) |
8(Uimp) |
Trip button |
Included |
Rated Operating Voltage (DC V) |
250 |
Overcurrent Tripper Type |
thermaladjustableelectromagnetic |
Name |
E Series (Economy Type) |
Rated Breaking Capacity (kA) (100VAC) |
[JIS C 8201-2-1 Ann2(Icu/Ics)]36/18 |
JIS Standard |
JIS C 8201-2-1 Ann2 |
Rated Breaking Capacity (kA) (200VAC) |
[JIS C 8201-2-1 Ann2(Icu/Ics)]50/25 |
