| Display | Temperature, Event Status |
| Interface | Host communication: RS-485 |
| Type of Product | Setting Display |

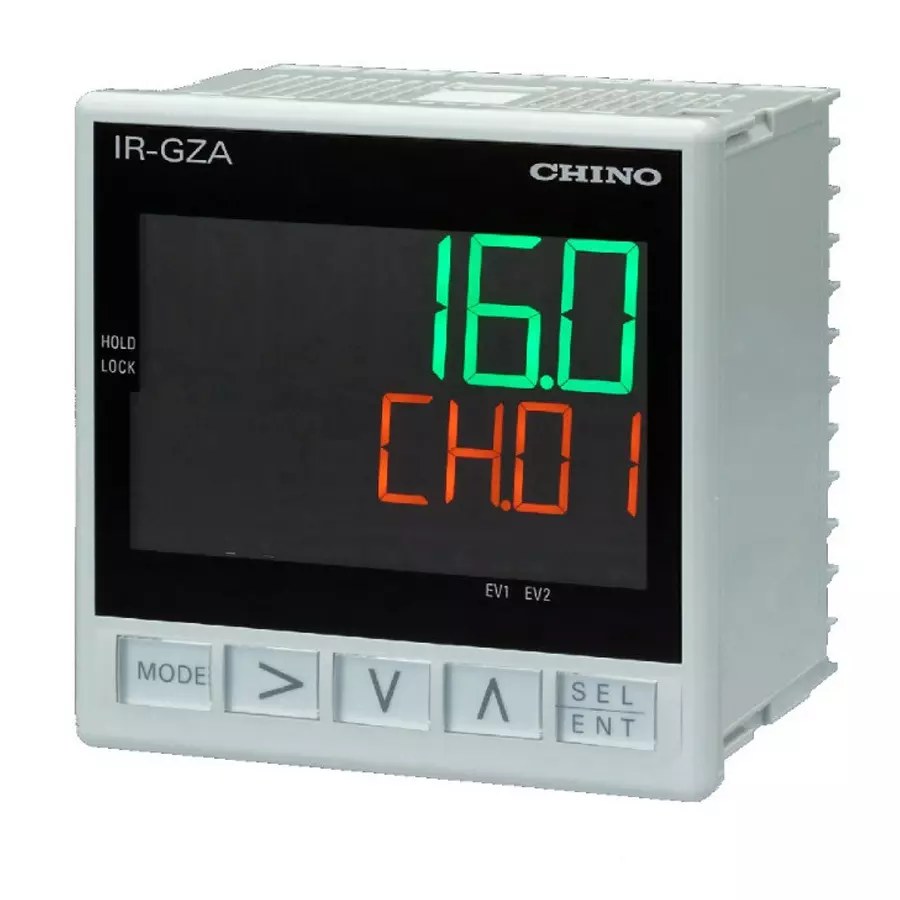

| Model No | IR-GZA2SN + IR-ZGBW-3S4 |
Display |
Temperature, Event Status |
Interface |
Host communication: RS-485 |
Type of Product |
Setting Display |
Model No |
IR-GZA2SN + IR-ZGBW-3S4 |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Chino Corporation |
Monotaro ID |
62409430 |
Import Country |
Direct Import from Japan |
Analog Output |
Output 1: IR-GZA processed output, 4 to 20mA DC [Load resistance] 600Ω or less [Update cycle] 0.1s [Accuracy] ±0.3% of output range Output 2: Radiation thermometer direct output (depending on the specifications of the radiation thermometer connected) |
Power Consumption (VA) |
[100 V AC] Max. 28, [240 V AC] Max. 36 |
Specifications |
Signal modulation: [DELAY] First order delay (modulation time constant...0.0 to 99.9 s, 0.1 s steps or 0.00 to 9.99 s, 0.01 s steps, arbitrary setting) Modulation time constant 0 = REAL [PEAK] Trace of maximum value Attenuation rate...When connected to IR-CZ or IR-CA, 0.1 to 10.0°C/s, 0.1 s steps arbitrary setting, when connected to IR-SA, select from 0, 2, 5, 10.0°C/s, Storage box/IR-GZA analog input specifications: Reflection compensation (Pt100), Storage box/IR-GZA communication specifications: RS-485, Storage box/isolator mounting location: Analog output 2, Reflection compensation (4 to 20 mA), Setting display/Connected device: Radiation thermometer IR-CZ, IR-SA, IR-CA series |
Output |
[Number of points] 2 points Select two from upper limit, upper upper limit, lower limit, lower lower limit temperature alarm, and thermometer self-diagnosis alarm. Relay a contact output (common) [Contact capacity] 240 V AC 1.5A, 30V DC 1.5A |
Function |
Temperature display, parameter setting and parameter transmission to radiation thermometer, temperature alarm judgment, signal modulation processing, analog temperature signal transmission |
Parameter |
Settings: For radiation thermometer parameter transmission, [emissivity (ratio)] 1.999 to 0.050, signal modulation mode, signal modulation time constant/attenuation rate, analog output scaling |
No. of Connections |
Two |

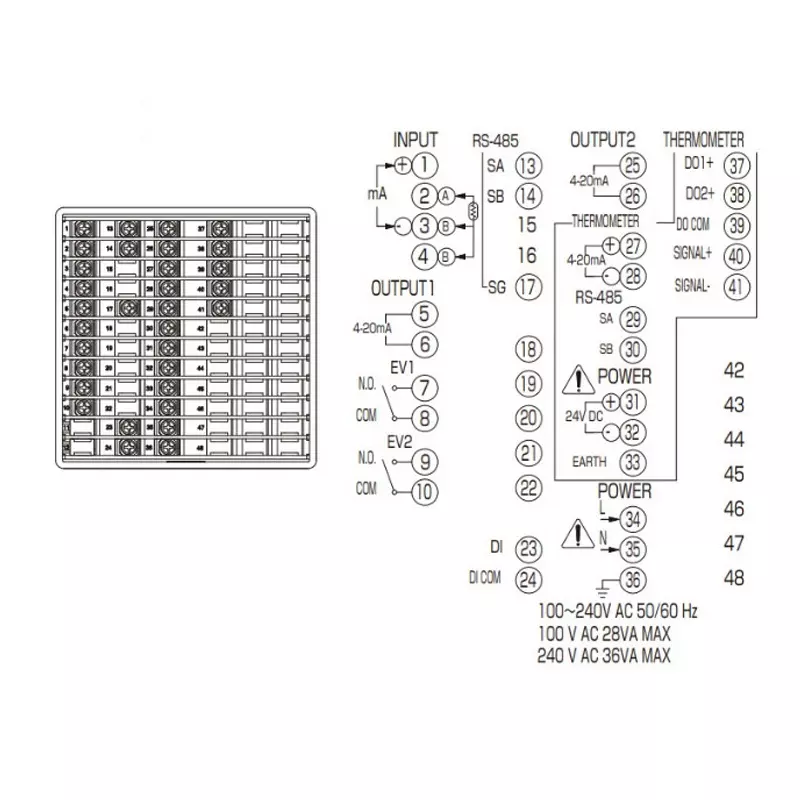

Terminal |
M3 |
Connector |
Radiation thermometer: Communication RS-485 |
Type of Sign |

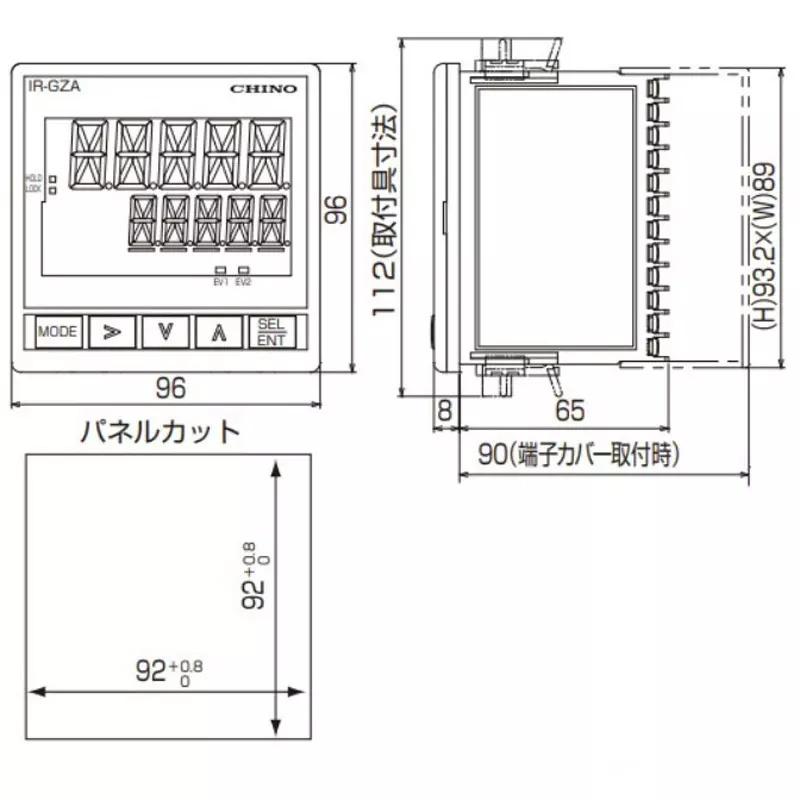

Panel embedded installation |
Thermometer |
Temperature value, self-diagnosis information |
RoHS Directive |
Correspondence |
External Input |
Reflection compensation Input 4 to 20mA, Pt100, radiation thermometer (Ch31), key input |
