| Type of Product | Air Cylinder Sensor |
| Model No | ACH02S |
| Type | Standard |
| Monotaro ID | 52933668 |
Type of Product |
Air Cylinder Sensor |
Model No |
ACH02S |
Type |
Standard |
Monotaro ID |
52933668 |
Protection Class |
IP67 |
Insulation Resistance |
250 V DC (20 MΩ or more in mega, between cases) |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
ASA ELECTRONICS INDUSTRY |
Case Material |
GF reinforced PBT: black |
Output Current (mA) |
15(MAX) |

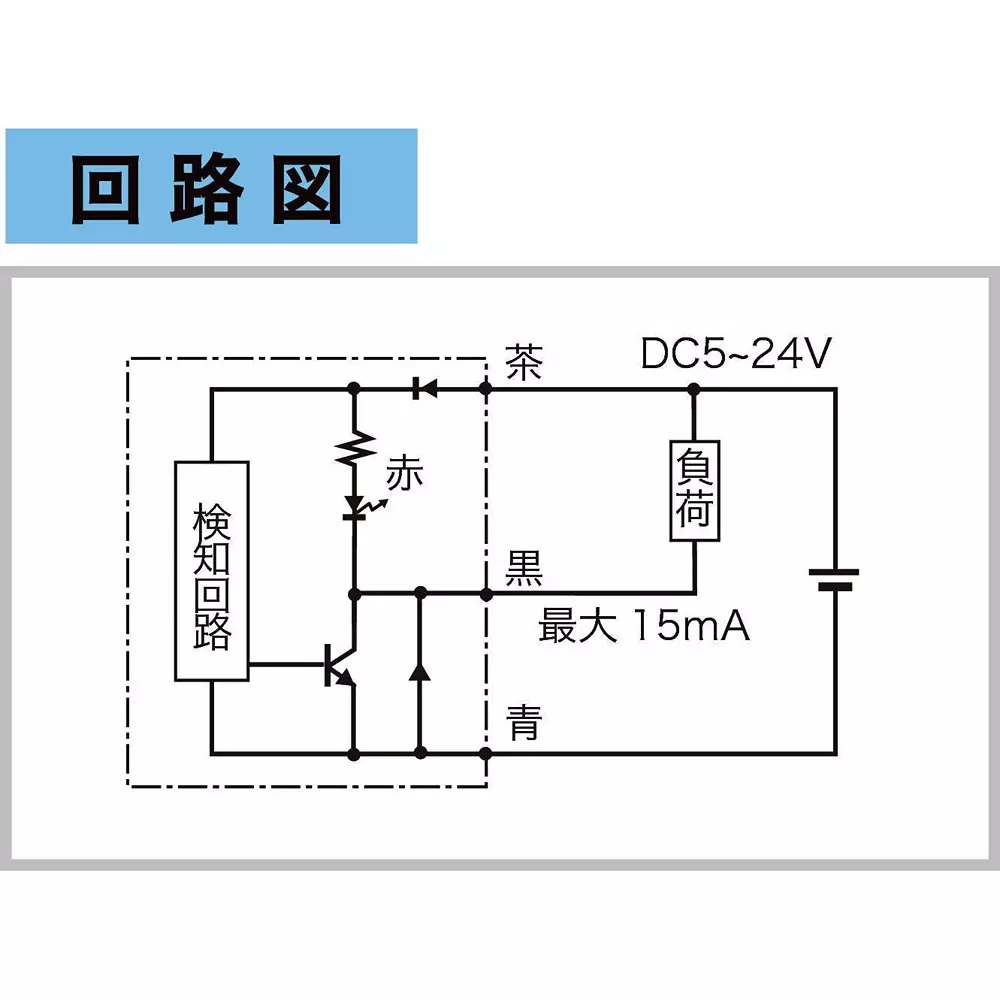

Output Specifications |
NPN (ON when close) |
Current Consumption (mA) |
4(MAX) |
Indicator Lamp |
Red |
Specifications |
Magnetic sensitivity: 3-4mT |
Ambient Humidity to Use |
20 to 95%RH |
Operation Ambient Temperature (°C) |
-20 to +85 (no condensation) |
Withstand voltage (V / min) |
AC1000 (1 minute, batch of charged parts, between cases) |
Screw Tightening Torque (Nm) |
Included set screw: 0.06 |
Lead Wire |
(Color) S: Gray, N: Black |
Power Supply Voltage (V) |
DC 5 to 24 |
Response Speed |
16μ sec or less |
Detection Device |
S pole detection |
