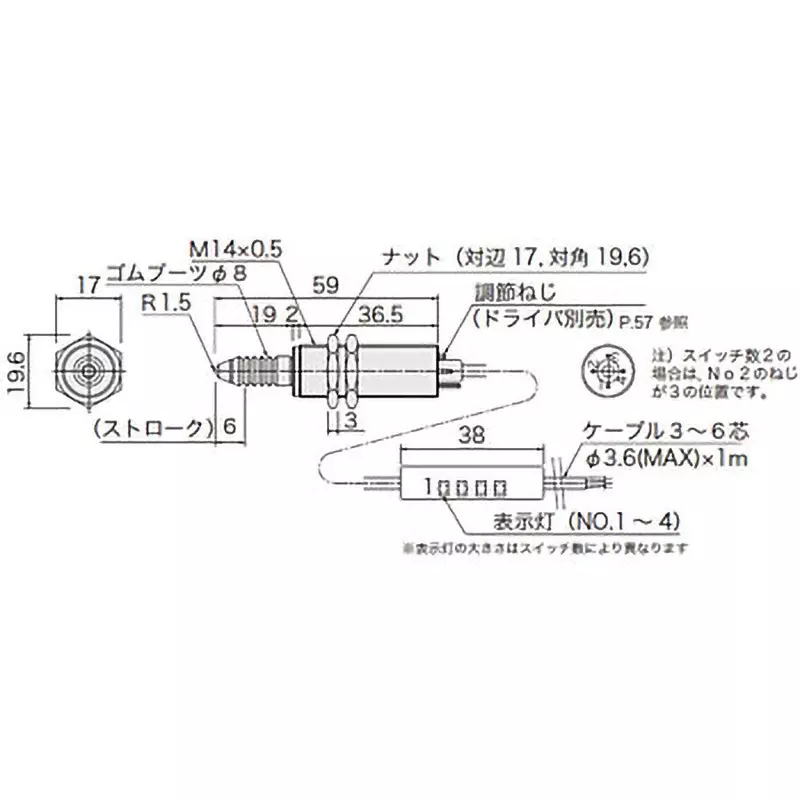

| Type of Product | Touch Sensor |
| Model No | PM5-C4 |
| Material | (Rubber boots) Nitrile rubber |
| Monotaro ID | 22191313 |
Type of Product |
Touch Sensor |
Model No |
PM5-C4 |
Material |
(Rubber boots) Nitrile rubber |
Monotaro ID |
22191313 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Cable |
3 to 6 cores, Φ3.6(MAX)x1m |
Name of Manufacturer/Packer/Importer |
ASA ELECTRONICS INDUSTRY |
Case Material |
SUS303 |
Output Current (mA) |
12MAX |
Output Specifications |
NPN open collector (ON when approaching) |
Current Consumption (mA) |
15MAX |
Indicator Lamp |
Approximately 100 mm from the main body |
Head Shape |
screw |
Operation Ambient Temperature (°C) |
-20 to 85 (no condensation) |
Stroke (mm) |
6 |
Repeatability (mm) |
±0.001 |
Mounting |
M14 |
Power Supply Voltage (V) |
DC 5 to 24 |
Contact Shape |
Carbide ball |
Nut Material |
SUS303 |
Allowable Operating Frequency (times/min) |
60 or less |
Nut Tightening Torque (Nm) |
18 or less |
No. of Switches |
4 |
Mounting hole dimensions (mm) |
Φ14 |
Operating Force (N) |
0.8 to 1.2 |
