| Type of Product | Ultrasonic Sensor |
| Model No | UTRCM18-600 |

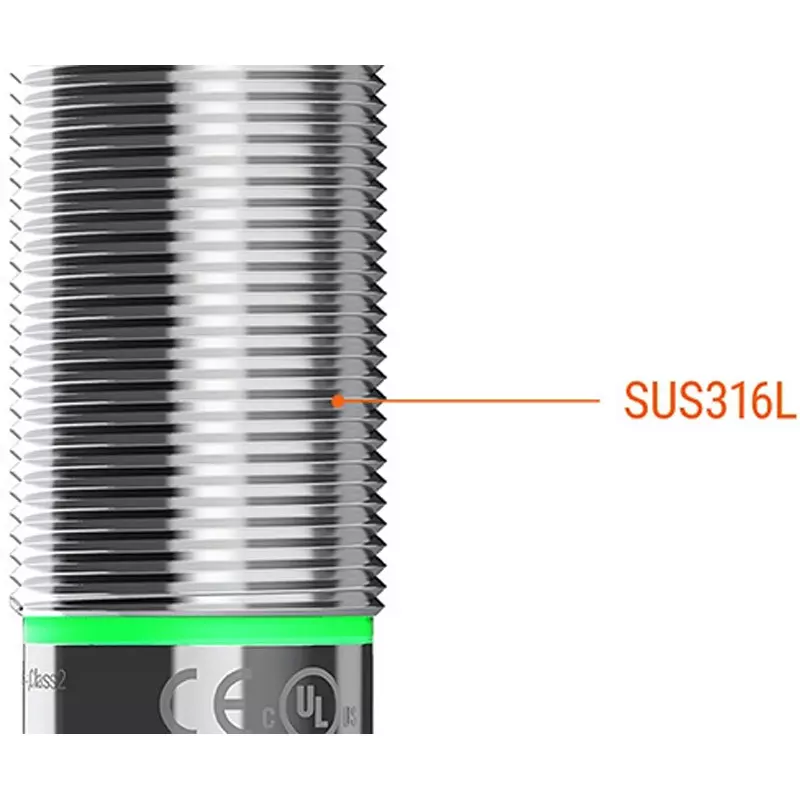

| Material | Case: Mount - SUS316L, Main body - PC, Transducer: Polyurethane foam, Glass-filled epoxy resin |
| Monotaro ID | 59759930 |
Type of Product |
Ultrasonic Sensor |
Model No |
UTRCM18-600 |
Material |
Case: Mount - SUS316L, Main body - PC, Transducer: Polyurethane foam, Glass-filled epoxy resin |
Monotaro ID |
59759930 |
Protection Class |

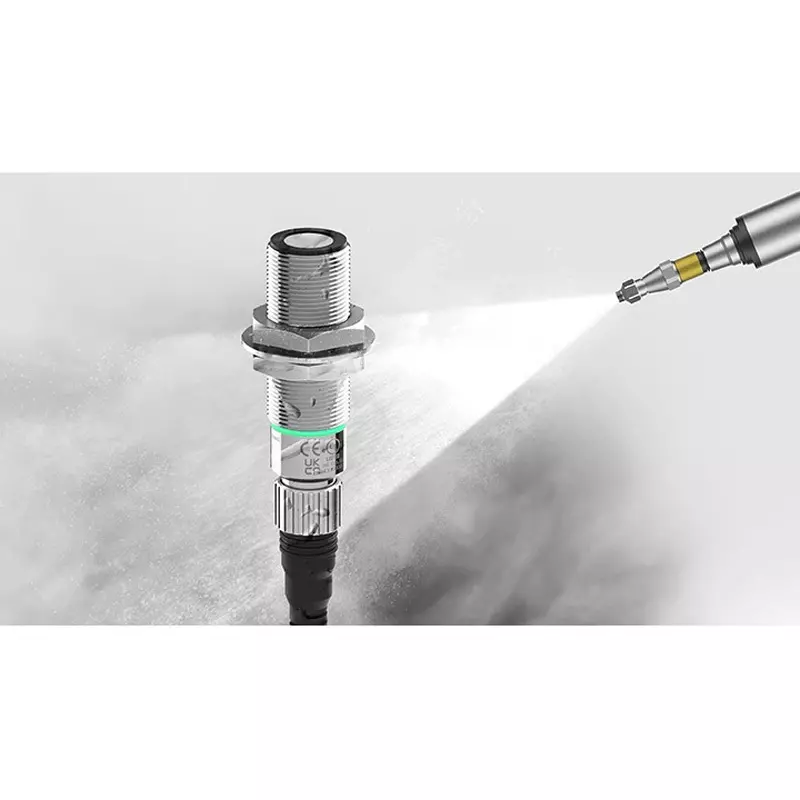

IP66, IP67 (IEC standard), IP69K (DIN standard), IP68 |
Insulation Resistance |
≧ 50MΩ (500VDC special string megger) |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Shock Resistance |
500m/s2 (=50G) 3 times in each of the X, Y, and Z directions |
Vibration Resistance |
10 to 55Hz Double amplitude 1.5mmX, Y, Z 2 hours each direction |
Withstand Voltage |
[Between live part and case] 1,000 VAC - 50/60 Hz for 1 minute |
Name of Manufacturer/Packer/Importer |
Autonics |
Connection Type |
Connector type model |
Detection Distance (mm) |
65 to 600 |
Digital Output |
Push-pull |
Protection Circuit |
Surge protection circuit, output short circuit and current protection circuit, power supply reverse connection protection circuit |
RoHS Directive |
Correspondence |
Power Supply Voltage (V) |
DC 12 to 30 |
switching frequency (Hz) |
12.5 |
Outer Diameter |
M18 |
Mass of Main Unit (g) |
30 |
Connector Specifications |
M12 5-pin plug connector |
Operation Environment |
[In use] -25 to 70 [Storage] -40 to 85 (no freezing or condensation) |
Response Time (mS) |
64 |
