Ships within 19 days
View
View
View
View

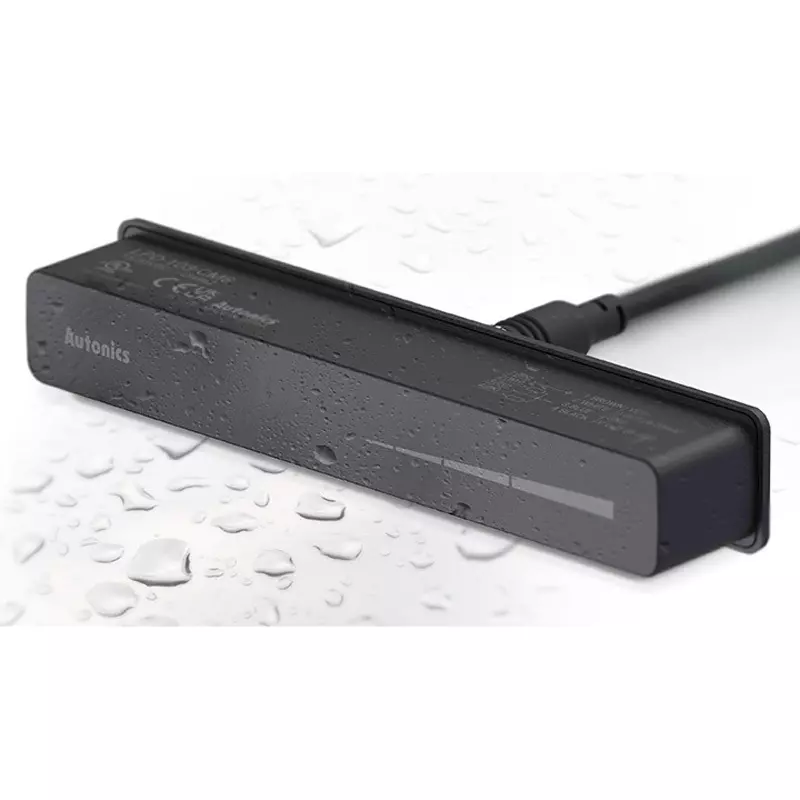

| Type of Product | Inductive Linear Position Sensor |
| Model No | LPD-103-IL2-CM8 |
| Material | Housing, sensing surface: PBT |
| Monotaro ID | 12924847 |
Type of Product |
Inductive Linear Position Sensor |
Model No |
LPD-103-IL2-CM8 |
Material |
Housing, sensing surface: PBT |
Monotaro ID |
12924847 |
Protection Class |
IP67 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Autonics |
Connection Type |
connector type |
Detection Method |
Inductive |
Detection Distance (mm) |
0.5 to 3.0 |
Output Specifications |
IO-Link COM2 |
Ambient Humidity (% RH) |
[In use] 35 to 85 [Storage] 35 to 85 (no freezing or condensation) |
Ambient Temperature (℃) |
[Operating temperature] -25 to 85°C [Storage temperature] -25 to 85°C (no freezing or condensation) |
RoHS Directive |
Correspondence |
Power Supply Voltage (V) |
DC 15 to 30 |
Detection Range (mm) |
103 |
Mass of Main Unit (g) |
49.4 |
Connector Specifications |
M8 4-pin plug type |
Standard to Conform |
CE, UKCA, UL, IO-Link |
Looking for bulk pricing or different specifications?
