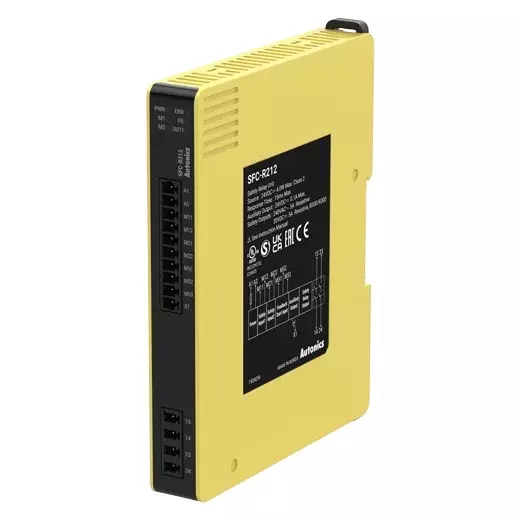

| Type of Product | Safety Controllers |
| Model No | SFC-R212 |
| Weight | Approx. 80g (approx. 130g) |
| Input | ON: ≥11 VDC ≥ 5mA, OFF: ≤ 5VDC ≤ 1mA |
Type of Product |
Safety Controllers |
Model No |
SFC-R212 |
Weight |
Approx. 80g (approx. 130g) |
Input |
ON: ≥11 VDC ≥ 5mA, OFF: ≤ 5VDC ≤ 1mA |
Country of Origin |
South Korea |
Power Consumption |
4 W |
Cable |
≤ 100m (≤ 100Ω, ≤ 10nF) |
Name of Manufacturer/Packer/Importer |
Teknocrats Control System (I) Pvt Ltd. |
Contact Resistance |
≤ 100mΩ |
Capacity |
240 VAC~ 5A, 30 VDC 5A |
Safety Output |
Relay (A contact) |
International Standards |
IEC/EN 61508 (SIL3), IEC/EN 62061 (SILCL3) IEC/EN 60947-5-1, EN ISO 13849-1 (Category 4, PLe) UL listed E249635 |
Sub Output |
1 × PNP transistor: X1 |
Load Current |
Max. 100mA |
Leakage Current |
≤ 0.1mA |
Allowable Voltage Range |
85 to 110% of rated voltage |
Instantaneous |
2 × |
Power Voltage |
24VDC |
Conditional Short Circuit Current |
100 A |
Inductive Load Switching |
IEC60947-5-1: AC-15 (230 V/2 A), DC-13 (24 V/1.5 A), UL508: B300/R300 |
Input Time |
≥ 50ms, feedback start (manual) : ≥ 100ms |
Life Expectancy |
Mechanical: ≥ 10,000,000 operations, Malfunction: ≥ 50,000 operations |
