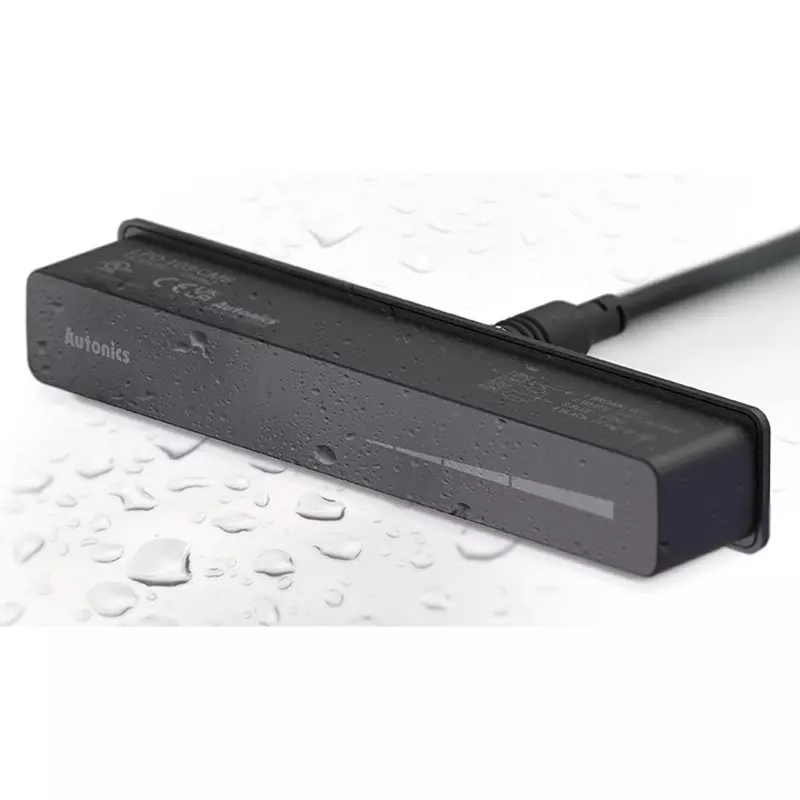

| Type of Product | Inductive Linear Position Sensor |
| Model No | LPD-14-IL2-W12 |
| Material | Housing, sensing surface: PBT |
| Monotaro ID | 12924890 |
Type of Product |
Inductive Linear Position Sensor |
Model No |
LPD-14-IL2-W12 |
Material |
Housing, sensing surface: PBT |
Monotaro ID |
12924890 |
Protection Class |
IP67 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Autonics |
Connection Type |
Wiring connector type |
Detection Method |
Inductive |
Detection Distance (mm) |
0.5 to 2.0 |
Output Specifications |
IO-Link COM2 |
Ambient Humidity (% RH) |
[In use] 35 to 85 [Storage] 35 to 85 (no freezing or condensation) |
Ambient Temperature (℃) |
[When in use] -25 to 70 [When stored] -25 to 70 (do not freeze or condense) |
RoHS Directive |
Correspondence |
Power Supply Voltage (V) |
DC 15 to 30 |
Detection Range (mm) |
14 |
Mass of Main Unit (g) |
33.06 |
Connector Specifications |
M12 4-pin plug type |
Standard to Conform |
CE, UKCA, UL, IO-Link |
