| Type of Product | Temperature And Humidity Sensor |
| Model No | THD-W2-V |
| Type | Wall-mount type |
| Monotaro ID | 77707126 |
Type of Product |
Temperature And Humidity Sensor |
Model No |
THD-W2-V |
Type |
Wall-mount type |
Monotaro ID |
77707126 |
Protection Class |
IP65 (IEC standard / excluding sensor part) |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Output Type |
Voltage output (DC 1-5V) |
Resolution |
1/1000 |
Display Type |
No display |
Name of Manufacturer/Packer/Importer |
Autonics |

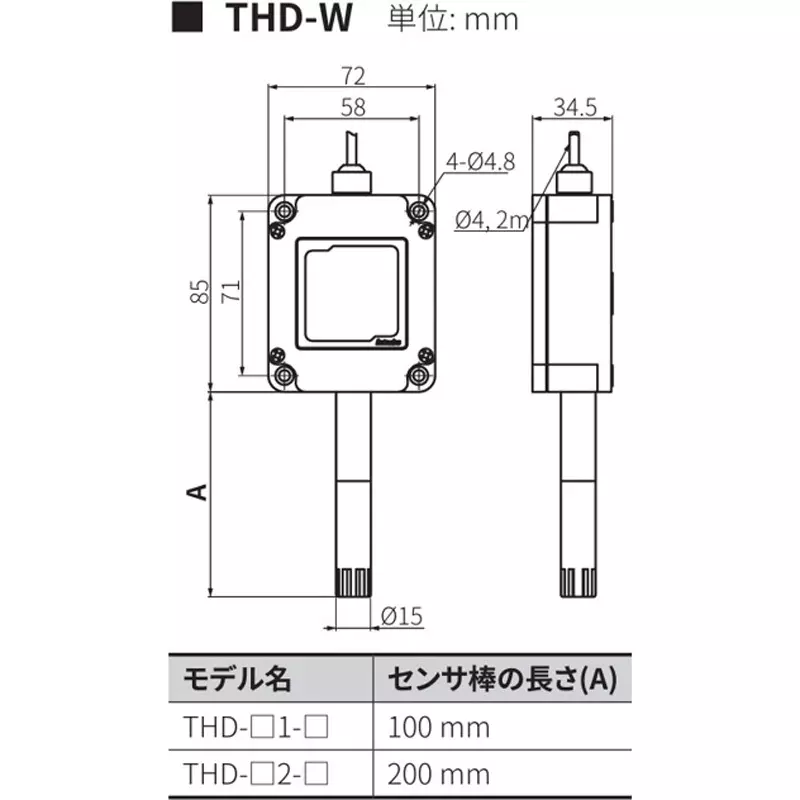

Sensor Dimensions (mm) |
Bar length 200 |
Measurement accuracy |
Standard value: ±2%RH (room temperature, 10-90%RH) *Maximum value: ±2.5%RH |
Cord |
Cord pull-out type, 2m, Φ4mm, 4 cores |
RoHS Directive |
Correspondence |
Power Supply Voltage (V) |
DC 24 |
Mass of Main Unit (g) |
160 |
Operating Ambient Temperature |
-20 to 60℃ , when saving: -20 to 60 |
Sampling Cycle |
0.5 seconds |
Temperature Measurement Accuracy |
±1.0℃ (room temperature range) |
Humidity Measurement Range (%) |
0.0 to 99.9 |
Temperature Measurement Range |
-19.9 to 60.0℃ |
Standard to Conform |
CE, UKCA, K, EAL, RoHS |
