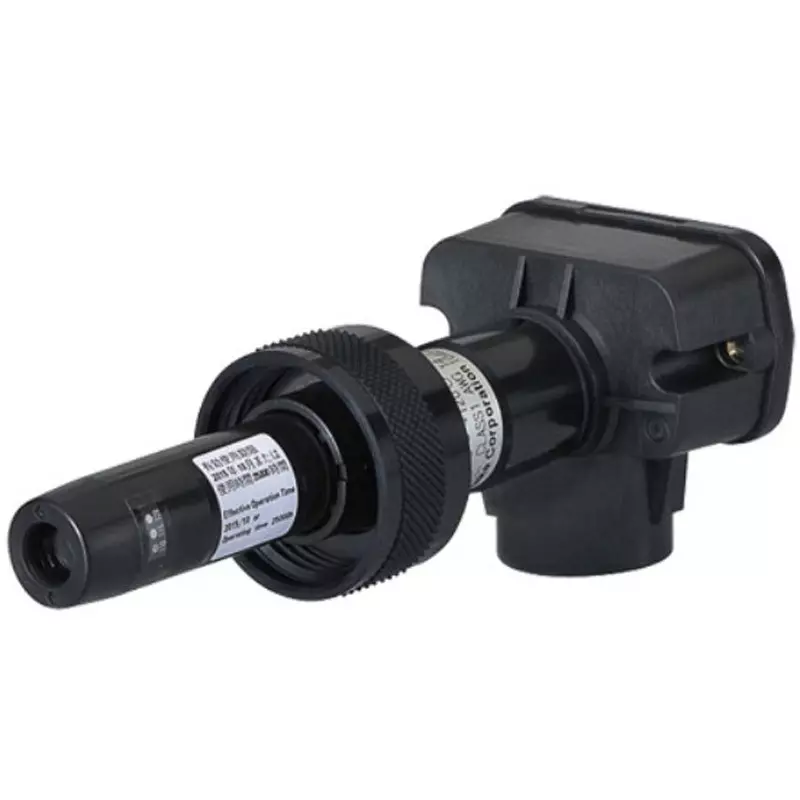

| Type of Product | Flame Detector Advanced UV Sensor |
| Model No | AUD110C100T |
| Material | Aluminum (Socket Part), Heat Resistant Resin (Pbt + Gf30, Black, Terminal Part) |
| Monotaro ID | 19445642 |
Type of Product |
Flame Detector Advanced UV Sensor |
Model No |
AUD110C100T |
Material |
Aluminum (Socket Part), Heat Resistant Resin (Pbt + Gf30, Black, Terminal Part) |
Monotaro ID |
19445642 |
Mass (g) |
Approximately 120 (When Assembling Aud15: Approximately 140) |
Protection Class |
Ip65 (Jis C 0920 / Iec 60529, But With Piping / Wiring Connection) |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Vibration Resistance |
5M / S <Sup>2</Sup> Or Less (10 to 55 Hz, 2H Each Inx/ Y / Z Directions) |
Name of Manufacturer/Packer/Importer |
Azbil Corporation |
Specifications |
Additional Specifications: Tropical Treatment (Aud110C Only) |
Operation Ambient Temperature (°C) |
-20 to 120 |
Name |
Tube Unit (Type Aud15C1000) Dedicated Socket, Terminal Block Type, Type Aud15C1000 Sold Separately |
Mounting |
G1 (R1, 1-11Bsp Can Be Connected) |
Lead Wire |
Awg18 (Approx. 1.2Mm <Sup>2</Sup> ) Flame-Retardant Cross-Linked Polyethylene Insulated Wire, With Length Approx. 1800Mm (Blue, White) (Aud100 Only) |
Allowable Pressure (MPa) |
0.035 |
