| Type of Product | Sensor |

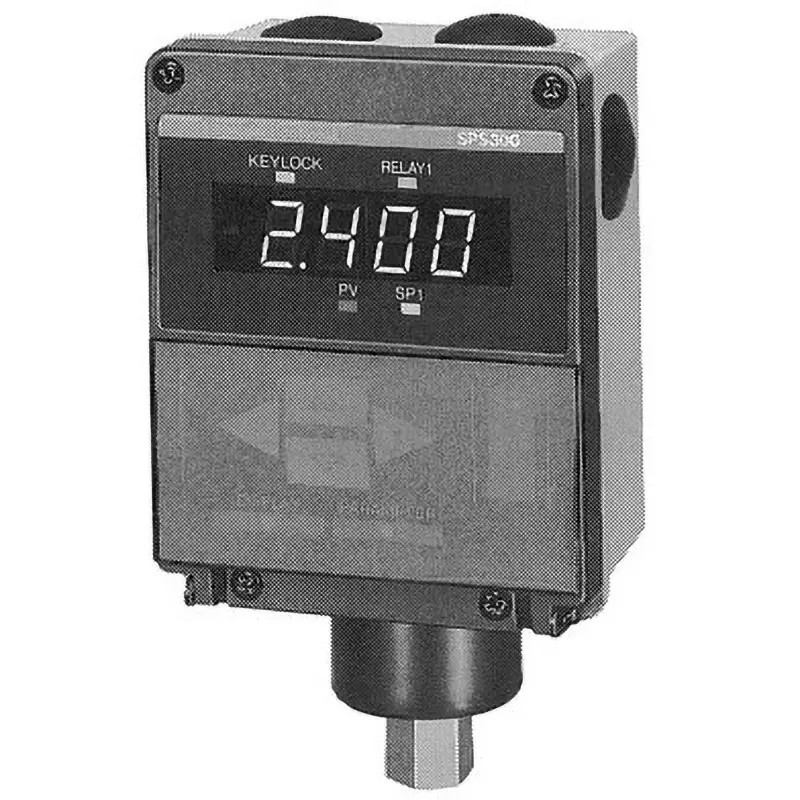

| Model No | SPS300A903A210 |
| Suitable For | Gases And Liquids (However, This Is Not Applicable to Corrosive Fluids Whose Pressure Receiving Part Is Made Of Sus316L) |
| Operation Mode | Current (4 to 20Ma) + Relay Contact (Spdt) |
Type of Product |
Sensor |
Model No |
SPS300A903A210 |
Suitable For |
Gases And Liquids (However, This Is Not Applicable to Corrosive Fluids Whose Pressure Receiving Part Is Made Of Sus316L) |
Operation Mode |
Current (4 to 20Ma) + Relay Contact (Spdt) |
Type |
Intelligent Pressure Sensor |
Monotaro ID |
51887589 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Power Consumption (W) |
7 Or Less: At Maximum Load, Relay On And 20Ma Output |
Standard |
Jis C 0920 Class 3 Rainproof Type (Wall-Mounted Type) |
Name of Manufacturer/Packer/Importer |
Azbil Corporation |
Specifications |
No Additional Processing |
Mass (Kg) |
1.1000000000000001 |
Mounting |
Wall Mounting |
Power Supply Voltage (V) |
AC 120/240 50/60Hz |
Detection |
Pressure Receiving Structure: Diaphragm Structure Filled With Oil By Seal Diaphragm, Pressure Detection Element: Piezo-Resistance Type Silicon Pressure Detection Element |
Various Certifications |
En61010-1, En61326-1, En61326-2-3 |
Fluid Temperature |
-20 to 60℃ (No Freezing) |
Pressure Range |
0 to 1 mPA |
