| Type of Product | Gear Speed Sensor |
| Model No | IMG12-50S |
| Cable Length (m) | 2 |
| Monotaro ID | 66271847 |
Type of Product |
Gear Speed Sensor |
Model No |
IMG12-50S |
Cable Length (m) |
2 |
Monotaro ID |
66271847 |
Protection Class |
IP67 |
Insulation Resistance |
50MΩ or more (between all cables and case using a DC500V megger) |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Cable |
[PVC] 2m 2-pair (4-core) shielded cable with 0.2sq core wire |
Output Voltage |
Output at power supply voltage |
Withstand Voltage |
AC500V 50/60Hz 1min Between all cables and case |
Operating Temperature Range |
-20 to +105 ℃ (If the operation check LED's upper limit temperature of 100 is exceeded, the LED's performance may deteriorate, but this will not affect the output. For models with connectors, the upper limit of the connector operating temperature is 85.) |
Name of Manufacturer/Packer/Importer |
COCO RESEARCH |
Detection Method |
2 Hall element differential method |
Output Current (mA) |
Power supply voltage 5V 0.72, power supply voltage 15V 4.8 |
Current Consumption (mA) |
20 or less (when LED is ON) |
Polarity |
Magnet: Tip S pole |
Specifications |
●Temperature test: JIS C 60068-2-14:2011●Detection distance (tested value for a tooth width of 10 mm): [m0.5] 0.1-0.3 mm / [m1] 0.1-1.3 mm / [m2] 0.1-2.7 mm / [m2.5] 0.1-3.0 mm (m: module)●Mounting angle tolerance: ±20°●Vibration and impact resistance: JIS E 4031:2013 (Railway vehicle components - Vibration and impact test methods)Vibration function test: X, Y, Z 5.4 m/s² rms, 10 minutes in both directions on each axis / Vibration durability test: X, Y, Z 30.6 m/s² rms, 5 hours on each axis / Impact test: 300 m/s², 18 times in total (3 times in the positive and negative directions on each of the 3 orthogonal axes)●Operation confirmation LED: Red LED |

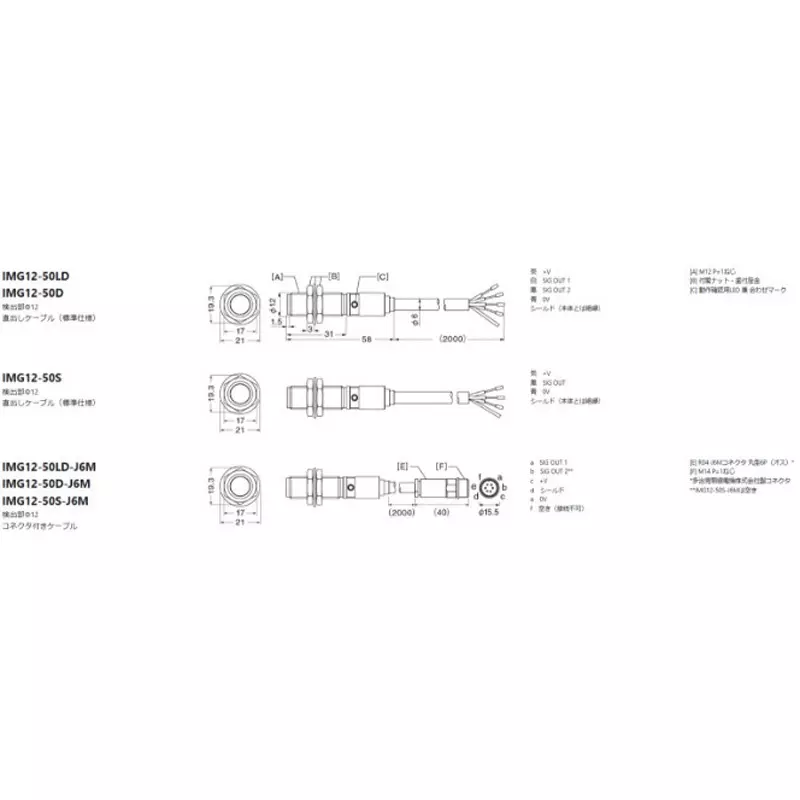

Outer Dimensions |
M12 (P=1 thread) x L58 |
Objects to Detect |
Material) Magnetic material S45C Carbon steel for machine construction (JIS G 4051) etc. Standard gears and gears with a step of 3mm or more |
RoHS Directive |
Correspondence |
Element |
2 Hall element differential method |
Diameter (Φmm) |
12 |
Response Frequency |
0-20 kHz |
Overall Length (m) |
58 |
