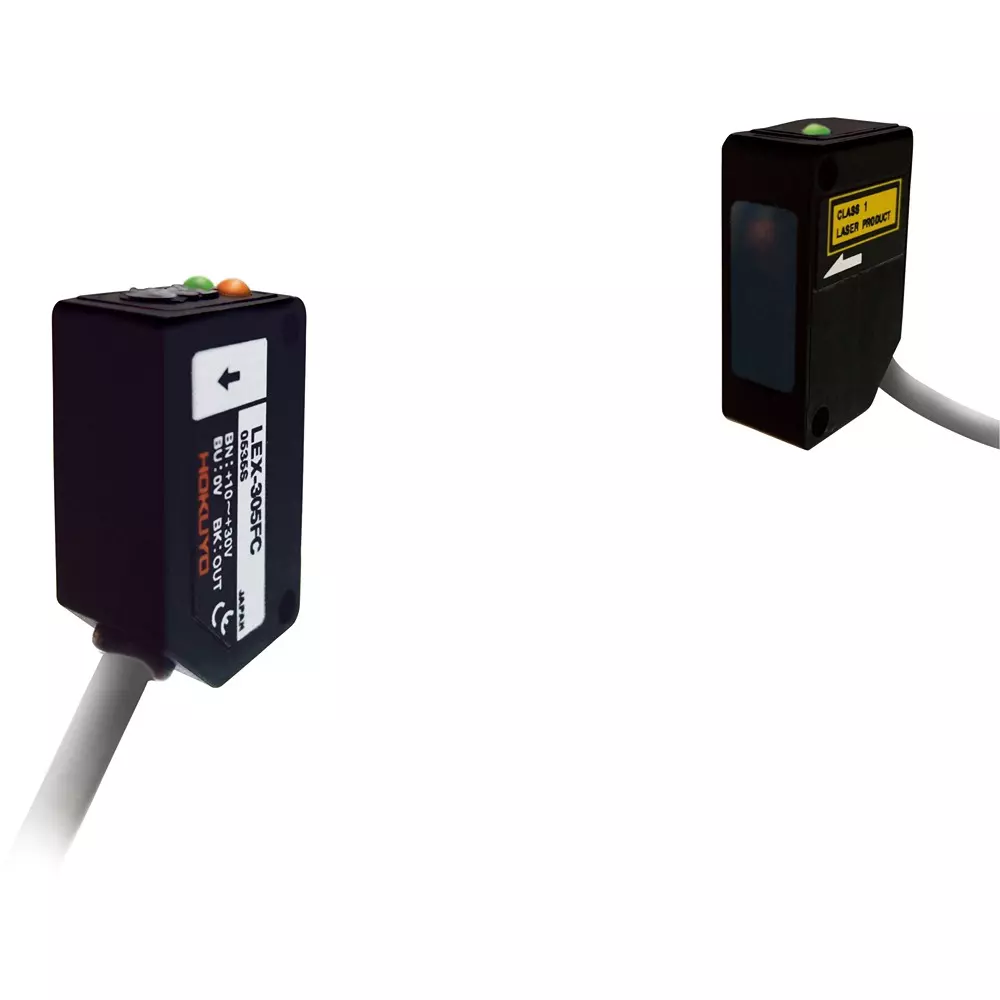

| Type of Product | Built-In Amplifier Type Laser Sensor |
| Model No | LEX-307C |
| Control Output | Both NPN and PNP open collector outputs are 100mA DC 30V or less, residual voltage 1.8V |
| Light Source | Visible light semiconductor laser 655nm |
Type of Product |
Built-In Amplifier Type Laser Sensor |
Model No |
LEX-307C |
Control Output |
Both NPN and PNP open collector outputs are 100mA DC 30V or less, residual voltage 1.8V |
Light Source |
Visible light semiconductor laser 655nm |
Response Time |
0.25ms or less |
Type |
Distance reflective type (with BGS function) |
Connector |
Pull-out cable type/Φ3.8 mm, 2 m long, 3-core (Through-beam projector: 2-core, Distance-measuring reflective type: 4-core) |
Monotaro ID |
58766779 |
Mass (g) |
(including cord) Approx. 50 |
Protection Class |
IP67 (IEC standard) |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Output |
NPN |
Name of Manufacturer/Packer/Importer |
Hokuyo Electric Co., Ltd. |
Case Material |
Body: ABS resin, Lens (front cover): PMMA resin |
Power Supply Voltage |
DC12 to 24 (maximum operating range DC10 to 30, including ripple 10%) |
Detection Distance (mm) |
10 to 300 *This is the value when the detection object is 100□ white drawing paper. |
Included Components |
Mounting bracket, mounting screw |
Current Consumption (mA) |
30 or less |
Specifications |
Sensitivity adjuster: Included (mechanical 4-turn volume, endless) |
Insulation Resistance (MOhm) |
20 (DC500V) or more |
Laser Spot Diameter |
Approximately Φ1.5 (at 300) *Defined as 1/e2 (13.5%) of the central intensity. There is light leakage beyond the specified spot diameter, and it may be affected by highly reflective objects around the target object. (mm) |
Operating Temperature / Humidity Range |
-10 to +50°C (-25 to +70°C when stored) *Distance measuring reflective type only: -10 to +55°C (-40 to +70°C when stored). 35 to 85% RH (35 to 95% RH when stored). However, do not allow freezing or condensation. |
Service Life |
Laser: Approximately 50,000 hours (at 50°C) |
Maximum Output |
4.7mW |
Cord |
RLEX011 |
