| Type of Product | Groove Sensor |
| Model No | FB-10C |

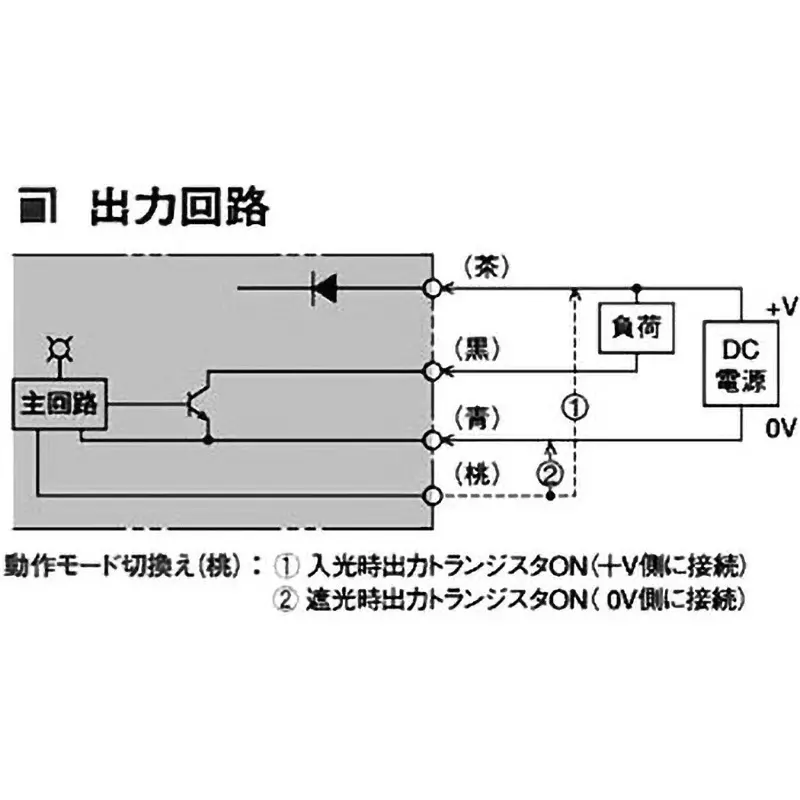

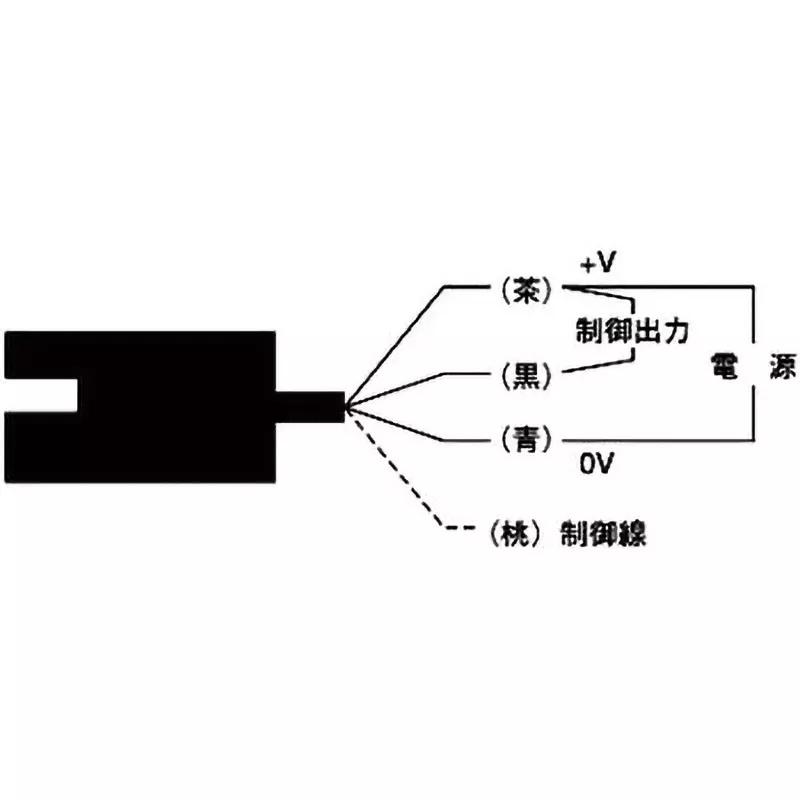

| Operation Mode | Switched by control line (peach) Operation when incident light: Control line is connected to + V side (brown) Operation when light is blocked: Control line is connected to 0 V side (blue) |
| Monotaro ID | 46562993 |
Type of Product |
Groove Sensor |
Model No |
FB-10C |
Operation Mode |
Switched by control line (peach) Operation when incident light: Control line is connected to + V side (brown) Operation when light is blocked: Control line is connected to 0 V side (blue) |
Monotaro ID |
46562993 |
Protection Class |
IP40 (IEC standard) |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Emitting Element |
Infrared LED (non-modulation type) |
Name of Manufacturer/Packer/Importer |
Hokuyo Electric Co., Ltd. |
Power Supply Voltage |
DC12-24 (+ 10%, -10%, ripple 5% or less) |
Detection Method |
Through-beam type |
Detection Distance (mm) |
(Between emitter and receiver) 10mm (fixed) |
Current Consumption (mA) |
25 mA or less |
Objects to Detect |
Opaque body with Φ4mm or more |
Groove Width (mm) |
10 |
Sensor Shape |
U shape |
