| Type of Product | Wedge Sensor Attachment Bracket N with Clamp Lever |
| Model No | FSKN-12AS |
| Material | Aluminum (A6063) / White anodized |
| Type | For round shaft |
Type of Product |
Wedge Sensor Attachment Bracket N with Clamp Lever |
Model No |
FSKN-12AS |
Material |
Aluminum (A6063) / White anodized |
Type |
For round shaft |
Monotaro ID |
46705732 |
Mass (g) |
64 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Iwata Manufacturing Co., Ltd. |
Included Components |
Hexagon socket head cap screw (SUSXM7) M5x1, wedge (SUS304)x1, clamp lever (screw part: SUS303, lever part: zinc die cast / powder coating)x1 |
RoHS Directive |
Correspondence |

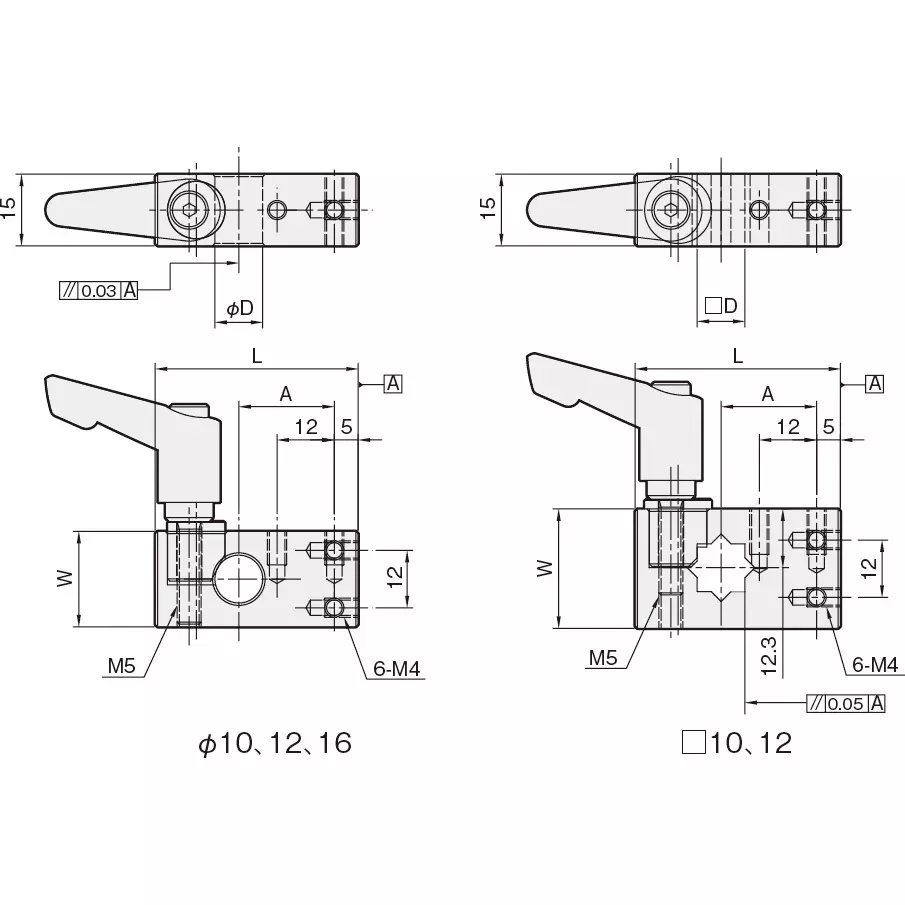

Dimension A (Φmm) |
20 |
Dimension L (mm) |
43 |
Dimension W |
20 mm |
Compatible shaft size |
Φ12 |
