| Type of Product | Wireless Sensor Input Device |
| Model No | M16-601 |
| Power Supply | Sensor input: DC12 V (100 mA) |
| Frequency | 2.4 GHz |
Type of Product |
Wireless Sensor Input Device |
Model No |
M16-601 |
Power Supply |
Sensor input: DC12 V (100 mA) |
Frequency |
2.4 GHz |
Connector |
【DK-5000】USB 2.0 (Micro USB Type B) |
Monotaro ID |
75417365 |
Operating Humidity Range |
35 - 85% RH (no condensation) |
Input |
Non-contact / Open collector input, current outflow: 1.5mA L: <1.4V; Contact input / Relay, microswitch, etc., current outflow: 1.5mA |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Operating Temperature Range |
0 - 50℃ (but do not freeze) |
Name of Manufacturer/Packer/Importer |
Line Seiki Co., Ltd. |
Included Components |
Instruction manual x1, OTG cable x1, MicroUSB cable x1, AC/DC adapter x1 |
Function |

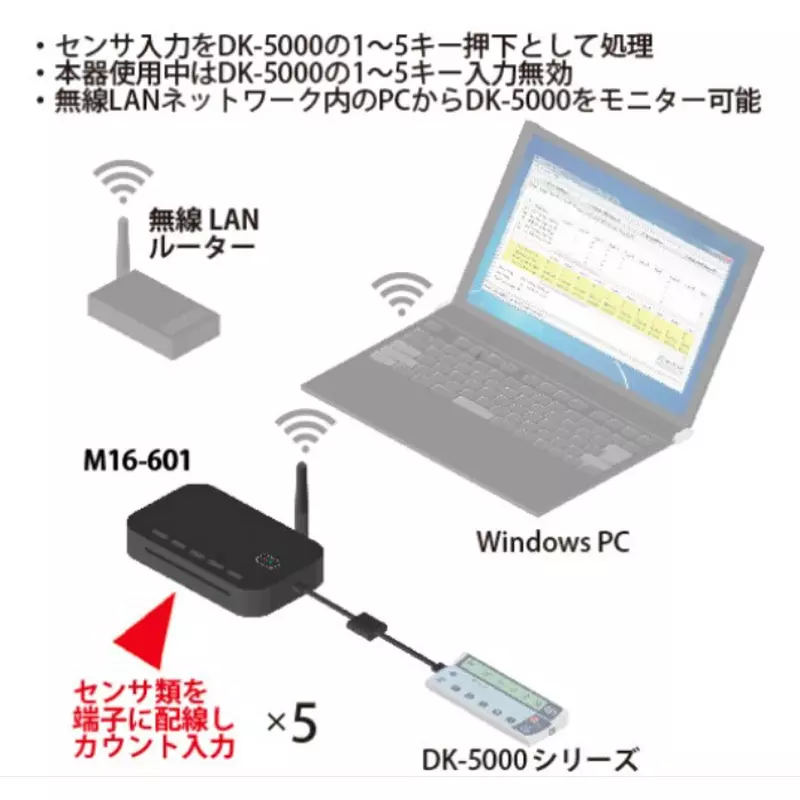

[Wireless communication (PC-DK-5004 series)] available, [External sensor input] available |
No. of Channels |
13 (automatic) |
Storage Temperature Range |
-10 - +60℃ (but do not freeze) |
Input Method |
Open collector input / Contact input |
Counting Speed |
Count input: 10Hz (make ratio 1:1), Status input: Minimum pulse width 1 second (1) |
Input terminals |
[Sensor] Input: Screw terminal |
Communication Method |
Wireless LAN |
Modulation method |
DS-SS method (IEEE802.11b) DS-SS method, OFDM method (IEEE802.11g/n) |
Wireless Standard |
IEEE802.11b/g/n |
Recessed Distance (mm) |
30 m (On a straight line with good visibility) |
