Ships within 19 days
View
View
View
View

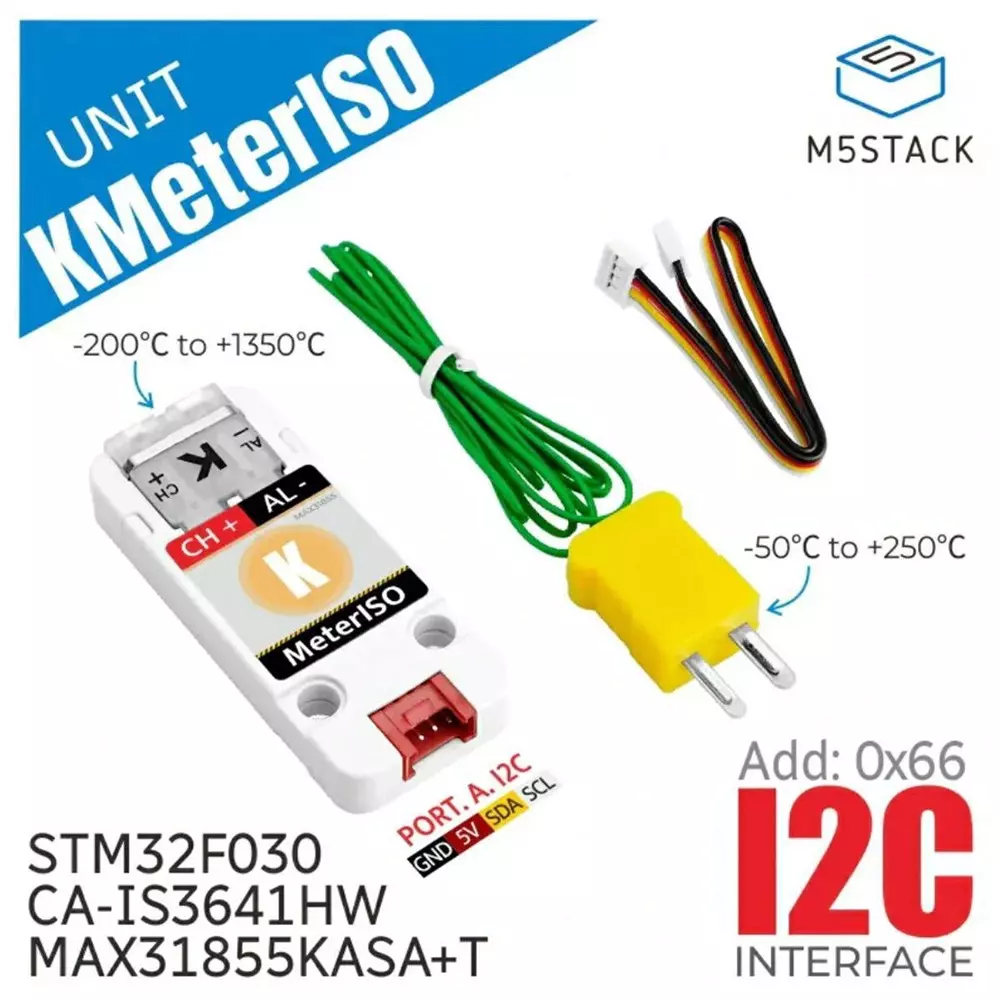

| Type of Product | Kmeter Isolation Unit with Thermocouple Temperature Sensor for M5Stack (MAX31855) |
| Model No | M5STACK-U133-V11 |
| Type | [Thermocouple] K |
| Monotaro ID | 68556261 |
Type of Product |
Kmeter Isolation Unit with Thermocouple Temperature Sensor for M5Stack (MAX31855) |
Model No |
M5STACK-U133-V11 |
Type |
[Thermocouple] K |
Monotaro ID |
68556261 |
Mass (g) |
10.1 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Interface |
[SPI] Maximum 5MHz |
Resolution |
14 bit |
Operating Temperature Range |
[Thermocouple] -200 to +1350℃ |
Name of Manufacturer/Packer/Importer |
M5Stack |
Dimension (mm) |
56x24x9.6 |
Specifications |

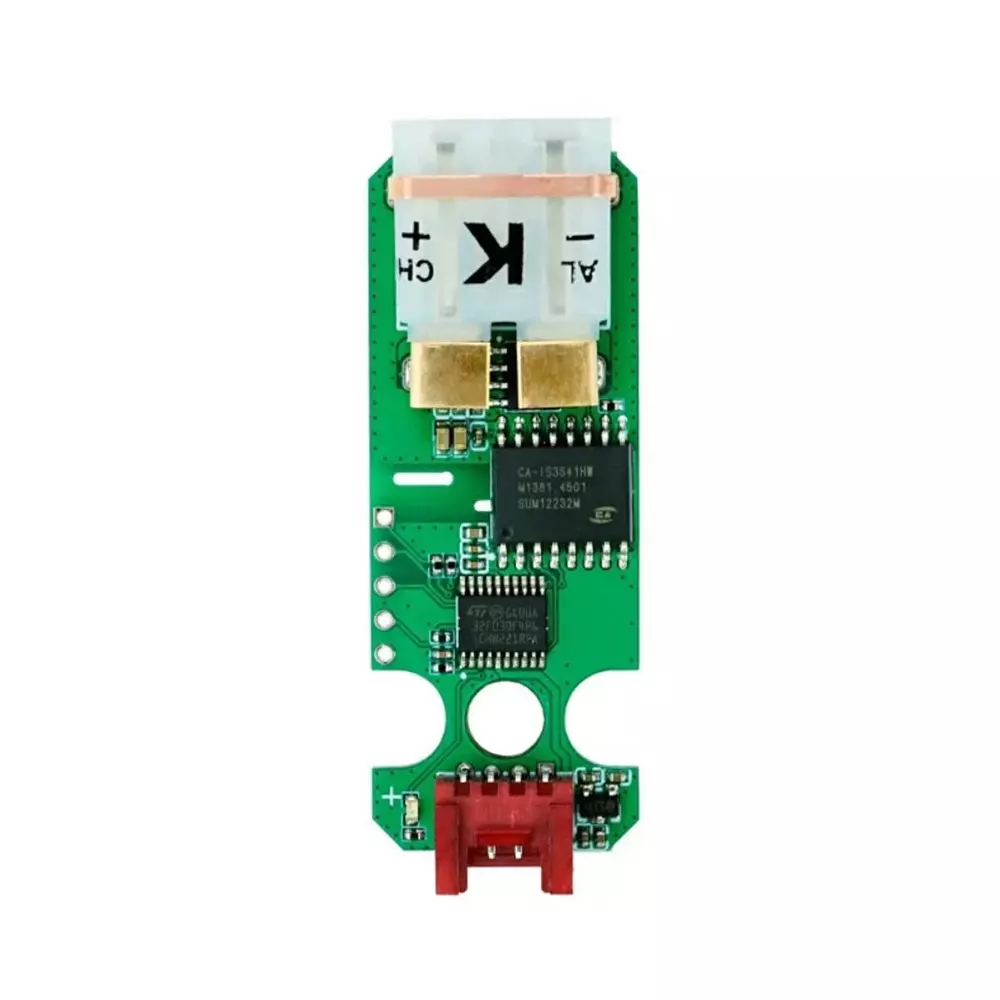

[MCU] STM32F030, ARM Cortex-M0, maximum 48MHz, 64K flash, 4K SRAM [Signal Separation Chip] CA-IS3641HW [STM32F030] ARM Cortex-M0, 48MHz, 64K flash, 8K SRAM [I2C Address] 0x66 |
Measurement accuracy |
±2℃ |
Set Contents |
1xInsulated Kmeter Unit, 1xK-type Thermocouple Probe (-50°C to +250°C, 1 m wire length, miniature connector), 1xHY2.0-4P Cable (20 cm) |
Sensing Accuracy |
[Internal temperature] ±2℃ |
Temperature Sensor |
[Chip] MAX31855KASA+T |
Sampling Speed |
10Hz(max) |
Anomaly Detection Function |
Detects open/short circuits and low voltage on thermocouples |
Clock Frequency |
up to 5MHz |
