| Type of Product | Linear Displacement Sensor |
| Model No | LP-100FJ-1K |
| Type | Other displacement sensors |
| Monotaro ID | 46412816 |
Type of Product |
Linear Displacement Sensor |
Model No |
LP-100FJ-1K |
Type |
Other displacement sensors |
Monotaro ID |
46412816 |
Mass (g) |
About 160 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Withstand Voltage |
AC 500 V for 1 minute |
Name of Manufacturer/Packer/Importer |
Midori Safety Co., Ltd. |
Input Voltage (V) |
DC36 or less / 50 ℃ |
Insulation Resistance (MOhm) |
100 or more DC 500 V |

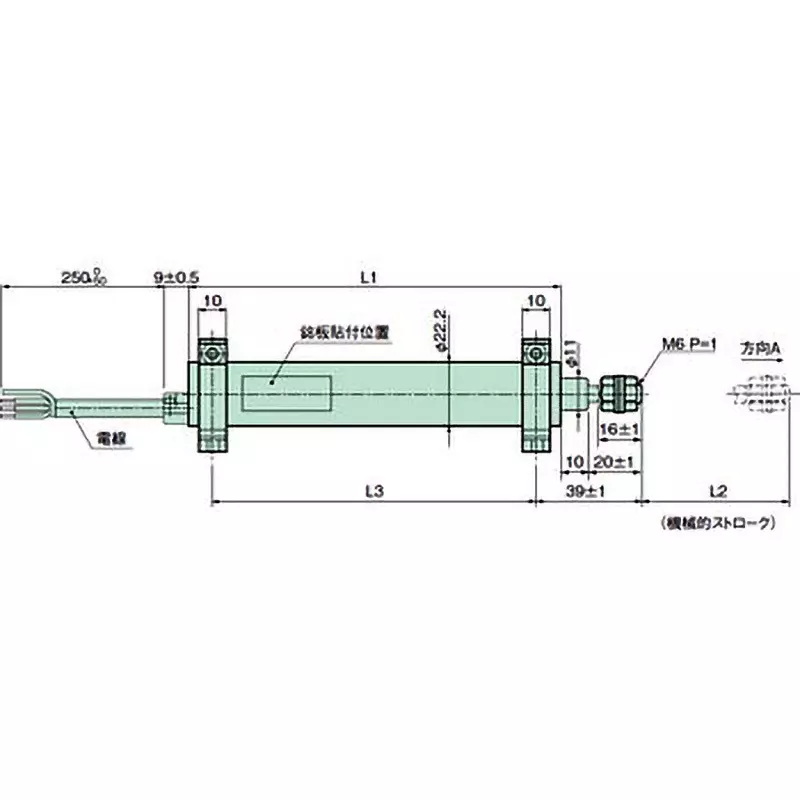

Outer Dimensions (mm) |
138±1 |
Resistance Value (Ω) |
1 kΩ |
Output Smoothness |
0.1% or less |
Linearity % |
±0.3 |
Resistance Tolerance |
±20% |
Mounting Screw Spacing (mm) |
(Leg) 120 ± 1 |
Effective Stroke of Probe (mm) |
100 ± 0.5, (mechanical: 104 ± 1) |
Temperature Resistance |
±400 ppm/K |
