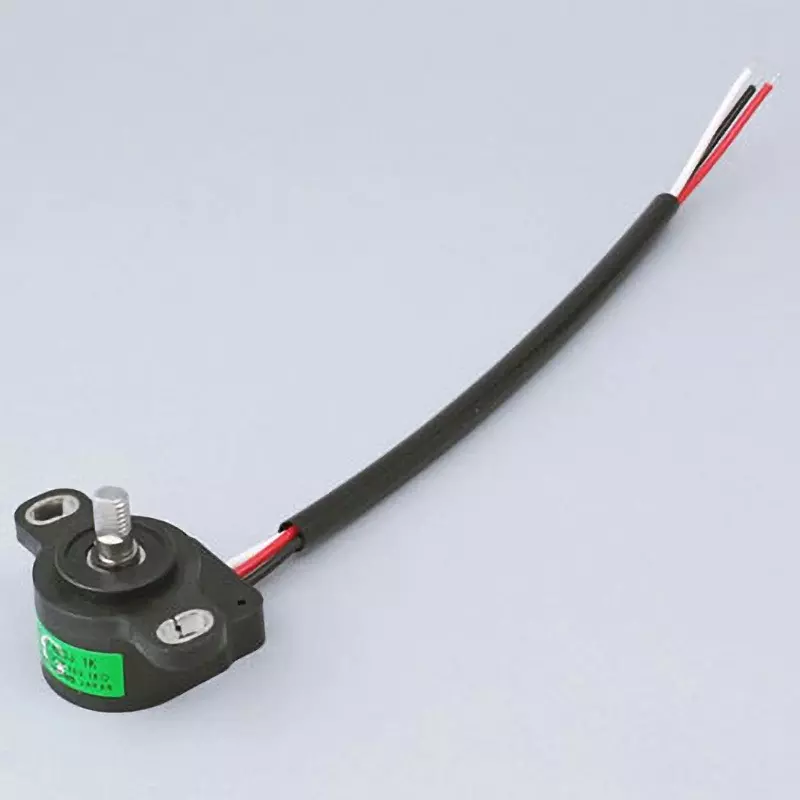

| Type of Product | Rotation Angle Sensor |
| Model No | CP-2FABSJ-1K |
| Type | Contact type |
| Monotaro ID | 46411373 |
Type of Product |
Rotation Angle Sensor |
Model No |
CP-2FABSJ-1K |
Type |
Contact type |
Monotaro ID |
46411373 |
Mass (g) |
About 35 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Midori Safety Co., Ltd. |
Input Voltage (V) |
DC18 or less (50°C) |
Insulation Resistance (MOhm) |
100 or more 1000 V DC |
Shank Diameter (Φmm) |
6 |
Resistance Value (Ω) |
1 kΩ |
Rotation Angle |
90°±3 |
Linearity % |
±3 |
Rotation (Degree) |
100°±5 |
Resistance Tolerance |
±20% |
Rotational Torque |
20 to 100 mNm [gfcm] |
