| Type of Product | Rotation Angle Sensor |
| Model No | CP-45H |
| Response Time | 0.9ms |
| Type | Sealing / drip-proof type IP40 |
Type of Product |
Rotation Angle Sensor |
Model No |
CP-45H |
Response Time |
0.9ms |
Type |
Sealing / drip-proof type IP40 |
Monotaro ID |
46411215 |
Mass (g) |
About 100 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Resolution |
12bit/Vin(max20 RPM) |
Temperature Characteristics |
±1.08° |
Output |
10 to 90%Vin(0.5 to 4.5 V) |
Linearity |
(Absolute) ± 0.4% Fs |
Operating Temperature Range |
-40 to +100℃(no condensation) |
Name of Manufacturer/Packer/Importer |
Midori Safety Co., Ltd. |
Input Voltage (V) |
DC 5 |
Current Consumption (mA) |
10 or less (1 output), 20 or less (2 outputs) |
Specifications |
EMS：100V/m 1M to 1GHz (ISO 11452) |
Storage Temperature Range |
-40 to +100℃ (no condensation) |

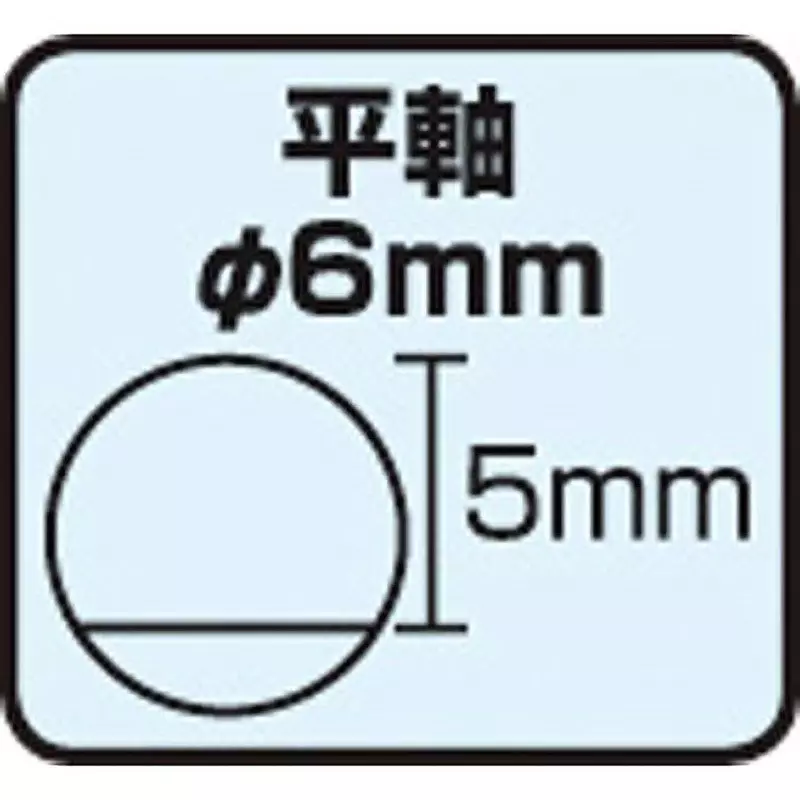

Shank Diameter (Φmm) |
6 |
Rotation Angle |
360° |
Rotation (Degree) |
360° / endless |
Rotational Torque |
1.8 mNm [gfcm] or less |
Load Resistance |
10 kΩ |
Hysteresis |
± 0.2 or less |
Acceptable Thrust Load (N) |
2 |
