| Type of Product | Rotation Angle Sensor |
| Model No | CP-20H |
| Type | Non-Contact type |
| Monotaro ID | 26903038 |
Type of Product |
Rotation Angle Sensor |
Model No |
CP-20H |
Type |
Non-Contact type |
Monotaro ID |
26903038 |
Mass (g) |
About 20 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Resolution |
12bit/Vin |
Output |
2 (4 lines) |
Linearity |
(Absolute) ± 1% Fs (Fs = 340° |
Operating Temperature Range |
-30 to 100℃ |
Name of Manufacturer/Packer/Importer |
Midori Safety Co., Ltd. |
Input Voltage (V) |
DC 5 |
Current Consumption (mA) |
16 or less |

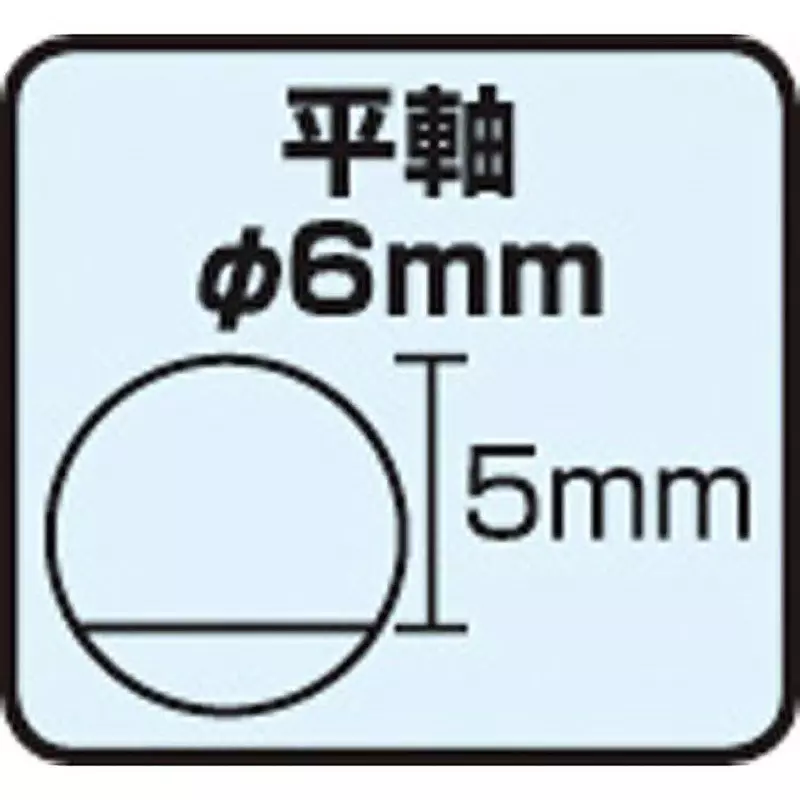

Shank Diameter (Φmm) |
6 |
Rotation Angle |
±170° |
Linearity % |
± 1 equivalent |
Rotation (Degree) |
360° / endless |
Rotational Torque |
2 mNm [gfcm] |
Offset Angle |
90 to 359° |
Breakdown Voltage |
± 16 kV, (between terminals) ± 8kV |
Structure (Bearing) |
metal |
