Ships within 19 days
Model No
View
View
View
View

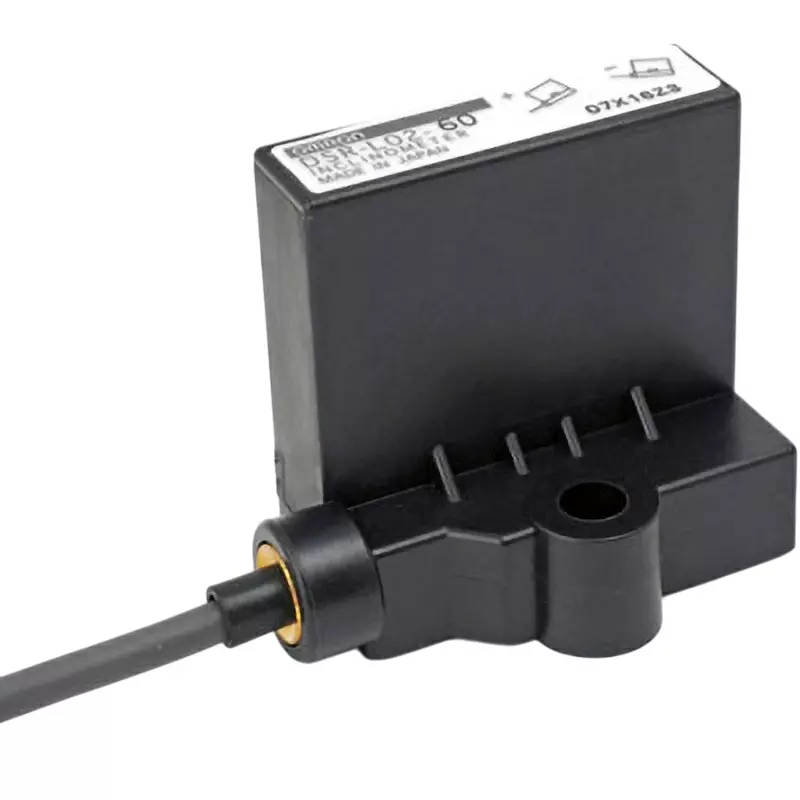

| Type of Product | Linear Tilt Sensor |
| Model No | D5R-L02-60 |
| Series | D5R Series |
| Response Time | (Time to reach 90%) 1s or less (+60° to 0°step movement) |
Type of Product |
Linear Tilt Sensor |
Model No |
D5R-L02-60 |
Series |
D5R Series |
Response Time |
(Time to reach 90%) 1s or less (+60° to 0°step movement) |
Monotaro ID |
39041947 |
Operating Humidity Range |
30 to 95%RH |
Protection Class |
IP67 |
Insulation Resistance |
Between mounting panel and terminals: 100 or more (500V mega) |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Category |
Misc Sensors and Controllers |
Storage Temperature |
-30 to +70℃ |
Output |
Horizontal voltage: 2.5V ± 0.05V, Sensitivity: 25mV / ° ± 3%, Output range: 1-4V |
Linearity |
1% FS or less |
Withstand Voltage |
Between the mounting panel and all terminals: 1000V for 1 minute (leakage current 1mA or less) |
Operating Temperature Range |
-20 to +60 |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Power Supply Voltage |
DC5±0.5 |
Output Current (mA) |
0.1 or less |
Storage Humidity Range |
30 to 95% RH (However, 60 to 70 ?, 30 to 60% RH) |
Output Range |
Horizontal Voltage: 2.5 V±0.05 V, Sensiti Vity: 25 m V/°±3%, Output Range: 1-4 V |
Output Specifications |
Horizontal voltage: 2.5 V ± 0.05 V (5 VDC power supply voltage, 25°C ambient temperature) Sensitivity: 25 mV/° ± 3% (5 VDC power supply voltage, 25°C ambient temperature) Output voltage ratio: ±3 change in power supply ratio %Less than |
Current Consumption (mA) |
20 or less |
Detection Angle Range |
± 60° (Detection Width 120°) |
Temperature dependence |
Horizontal Voltage: ± 10m V / 10°C or less, Sensiti Vity: ± 1.5%/10°C or less |
Sensitivity |
(Non-detection axis) ± 50mV or less |
