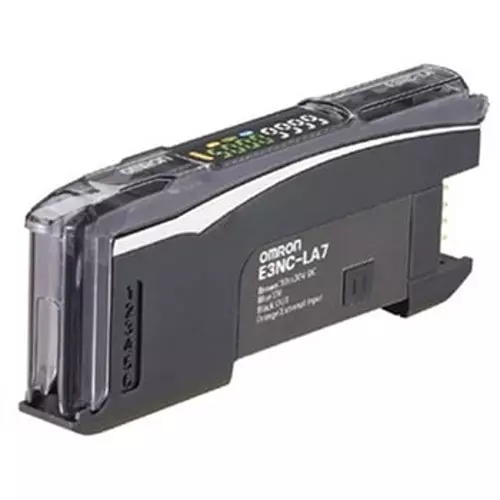

| Type of Product | Small Laser Sensor |
| Model No | E3NC-LA7 |
| Response Time | Highest speed mode (SHS): Operation/recovery: 80 μs each High-speed mode (HS): Operation/recovery: 250 μs each Standard mode (Stnd: Operation/recovery: 1 ms each Giga power mode (GIGA): Operation/recovery: 16 ms each |
| Monotaro ID | 89772024 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Small Laser Sensor |
Model No |
E3NC-LA7 |
Response Time |
Highest speed mode (SHS): Operation/recovery: 80 μs each High-speed mode (HS): Operation/recovery: 250 μs each Standard mode (Stnd: Operation/recovery: 1 ms each Giga power mode (GIGA): Operation/recovery: 16 ms each |
Monotaro ID |
89772024 |
Mass (g) |
Packing condition: Approximately 60, Main unit only: Approximately 20 |
Withstand voltage (V) |
AC1000 50/60Hz 1min |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Output |
NPN output |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Connection Type |
Reduced wiring connector type |
Case Material |
Polycarbonate (PC) |
Power Supply Voltage |
DC10-30 including ripple V(pp) 10% |
Shock Resistance (m/s²) |
500 X, Y, Z directions 3 times |
Vibration Resistance (Destruction) |
10 to 55 Hz, 1.5 mm double amplitude, 2 hours each in X, Y, and Z directions |
Input / Output Configuration |
1 output + 1 input |
Insulation Resistance (MOhm) |
20 (at DC500 V mega) |
Product |
Amplifier unit |
Cover Material |
Polycarbonate (PC) |
Ambient Humidity to Use |
During operation and storage: 35% to 85% (with no condensation) |
Protection Circuit |
Power supply reverse connection protection, output short circuit protection, output reverse connection protection |
Operation Ambient Temperature (°C) |
Operating: 1 to 2 units connected: -25°C to +55°C, 3 to 10 units connected: -25°C to +50°C, 11 to 16 units connected: -25°C to +45°C, 17°C When connecting 30 units: -25°C to +40°C Storage: -30°C to +70°C (with no freezing or condensation) |
