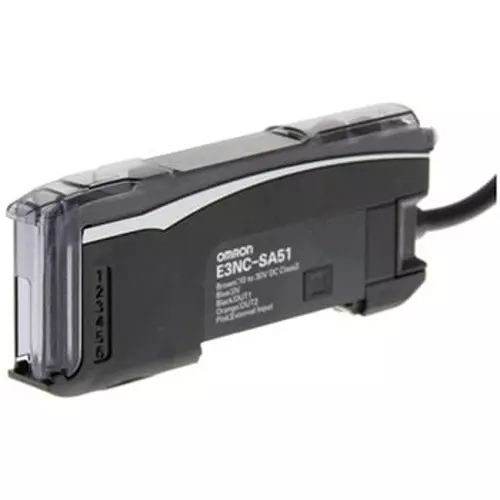

| Type of Product | Ultra-Compact CMOS Laser Sensor |
| Model No | E3NC-SA51 2M |
| Monotaro ID | 89771936 |
| Withstand voltage (V) | AC1000 50/60Hz 1min |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Ultra-Compact CMOS Laser Sensor |
Model No |
E3NC-SA51 2M |
Monotaro ID |
89771936 |
Withstand voltage (V) |
AC1000 50/60Hz 1min |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Output |
PNP output |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Connection Type |
Cord drawer type |
Power Supply Voltage |
DC10-30 including ripple V(pp) 10% |
Shock Resistance (m/s²) |
500 X, Y, Z directions 3 times |
Vibration Resistance (Destruction) |
10 to 55 Hz, 1.5 mm double amplitude, 2 hours each in X, Y, and Z directions |
Input / Output Configuration |
2 outputs + 1 input |
Insulation Resistance (MOhm) |
20 (at DC500 V mega) |
Product |
Amplifier unit |
Protection Circuit |
Power supply reverse connection protection, output short circuit protection, output reverse connection protection |
