| Type of Product | Amplifier built-in sensor Low cost type Z-eco series |
| Model No | Z2R-400N |
| Control Output | NPN output |
| Light Source | 4-element red LED, wavelength 640nm |
Type of Product |
Amplifier built-in sensor Low cost type Z-eco series |
Model No |
Z2R-400N |
Control Output |
NPN output |
Light Source |
4-element red LED, wavelength 640nm |
Response Time |
500 μs or less |
Type |
Built-in amplifier |
Connector |
(Cable) Φ3.8x2m |
Monotaro ID |
46414925 |
Mass (g) |
Approx. 10 (Excluding code) |
Protection Class |
IP67(IEC) |
Wavelength |
640 nm |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Optex FA Co., Ltd. |
Connection Type |
Code expression |
Case Material |
ABS (glass fiber reinforced) |
Detection Method |
Retroreflective |
Included Components |

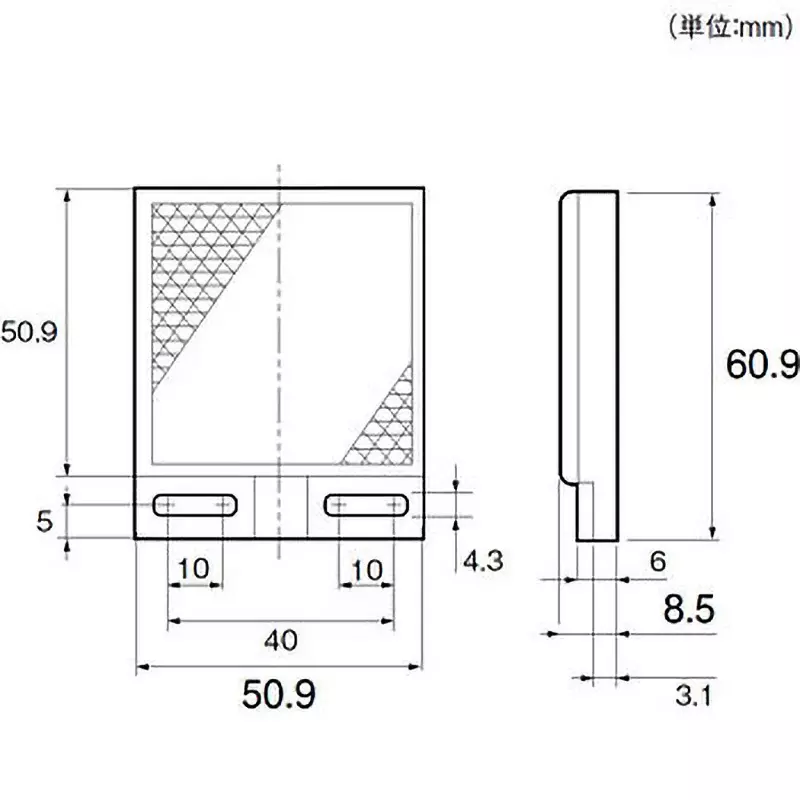

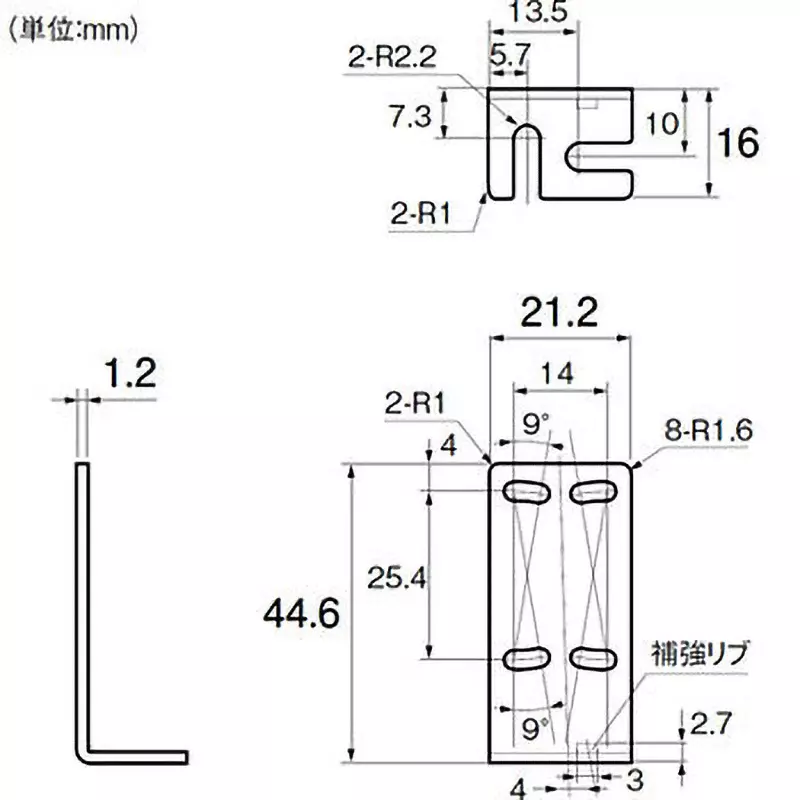

(Mounting bracket) BEF-W100B, (Reflection mirror) V-61 |
Current Consumption (mA) |
13 or less |
Head Shape |
Square |
Cover Material |
(Front) PMMA |
Operation Ambient Temperature (°C) |
-25 to 55 (no freezing) |
Control |
Cable length: 2m, Φ3.8mm (Minimum bending radius when fixed: cable diameterx4) |
Laser Spot Diameter |
Approximately Φ220mm (at a distance of 4.4m) |
Power Supply Voltage (V) |
DC10-30 ripple (pp) 10% included |
