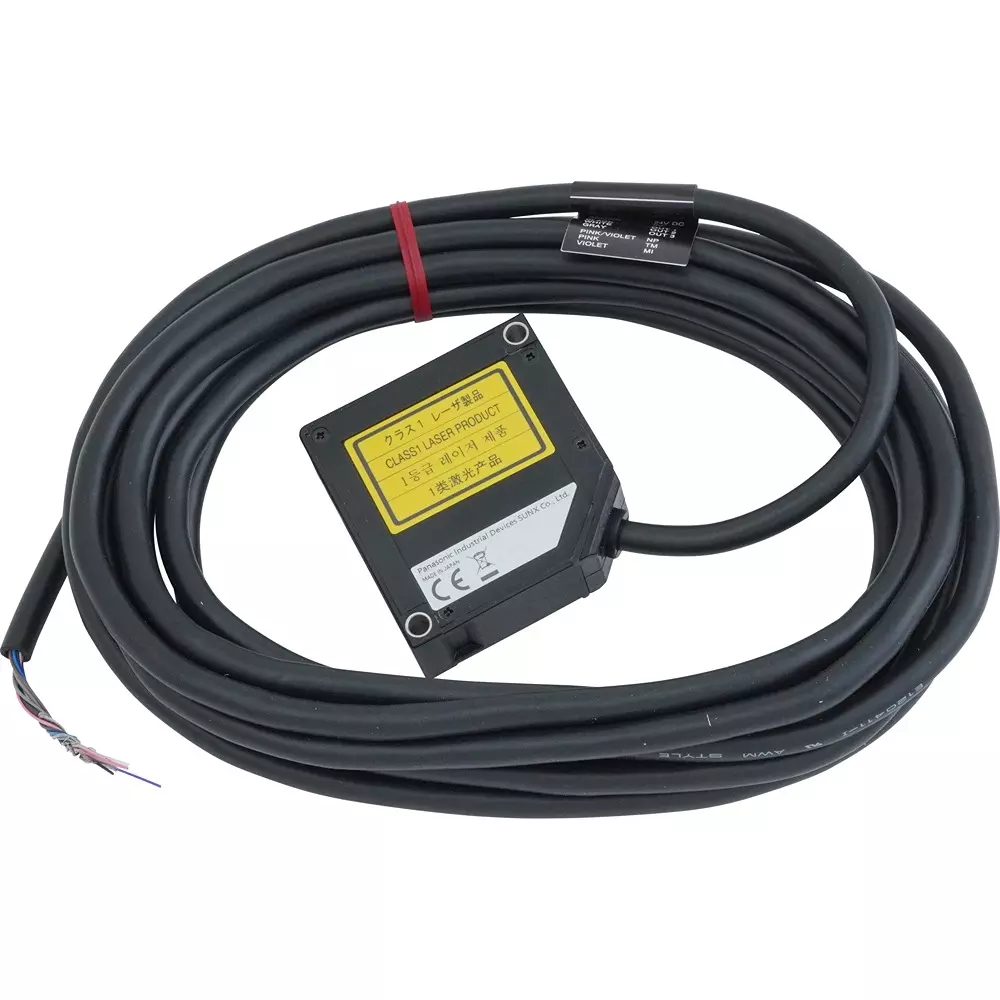

Panasonic Compact Laser Displacement Sensor Body case: PBT, Front cover: Acrylic, Cable: PVC IP67((IEC) Protection, HL-G105A-RA-C5

Name: Panasonic Compact Laser Displacement Sensor Body case: PBT, Front cover: Acrylic, Cable: PVC IP67((IEC) Protection, HL-G105A-RA-C5
Brand: Panasonic
SKU: IND.MIS.144807367
Price: 153399 INR
Availability: InStock

Visit the Panasonic Store

EMI starts at ₹13629/month. No Cost EMI available.

Available offers

Get Flat 10% off on your First Orders above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 3% off on First Order above ₹3,000

View

Features

Type of Product	Compact Laser Displacement Sensor
Model No	HL-G105A-RA-C5
Voltage	Output range: 0 to 10.5 V (normal), 11 (alarm) Output impedance: 100 Ω
Material	Body case: PBT, Front cover: Acrylic, Cable: PVC

More Panasonic Misc Sensors and Controllers products More Misc Sensors and Controllers products

100% Original Products

Secure Payments

100% Buyer Protection

Top Brands

specifications

Type of Product	Compact Laser Displacement Sensor
Model No	HL-G105A-RA-C5
Voltage	Output range: 0 to 10.5 V (normal), 11 (alarm) Output impedance: 100 Ω
Material	Body case: PBT, Front cover: Acrylic, Cable: PVC
Light Source	Red semiconductor laser class 1 [JIS / IEC / FDA], maximum output: 0.39mW, emission peak wavelength: 655nm
Type	Standard type
Monotaro ID	73947502
Mass (g)	70 (excluding cable), 320 (including cable)
Protection Class	IP67((IEC)
Country of Origin	Japan
Import Country	Direct Import from Japan
Beam Diameter	0.1x0.1 mm
Resolution	1.5 μm
Output	Judgment output or alarm output (setting switching type), NPN transistor / open collector / PNP transistor / open collector (switching type) <When NPN output is selected>-Maximum inflow current: 50 mA-Applied voltage: 3 V to 24 V DC (output-0 V) -Residual voltage: 2 V or less (at 50 mA sink current) <When PNP output is selected>-Maximum drain current: 50 mA-Residual voltage: 2.8 V or less (at 50 mA sink current)
Cable	0.1 mm² 10 core cabtyre cable with 5 m
Standard	CE, FDA
Linearity	±0.2% F.S.
Name of Manufacturer/Packer/Importer	Panasonic Devices SUNX Co., Ltd.
Power Supply Voltage	24 V DC ±10% including ripple 0.5V (PP)
Included Components	Laser warning label: 1 set
Current Consumption (mA)	under 100
Ambient Humidity to Use	35% to 85% RH (with no condensation), Storage: 35% to 85% RH (with no condensation)
Operation Ambient Temperature (°C)	-10 to 45 (with no icing), Storage: -20 to 60 (with no icing)
Current (mA)	Output range: 3.2 to 20.8 (normal), 21.6 (alarm) Load impedance: 300�� or less
Short Circuit Protection	Equipment (automatic return type)
Sampling Cycle	200 μs, 500 μs, 1 ms, 2 ms
