| Type of Product | Color Fiber Sensor Amplifier |
| Model No | FZ-11 |
| Suitable For | Fiber: FD-L51, FD-L52, FD-L53, FD-L54 |
| Material | Body case: ABS, Case cover: Polycarbonate, Fight baroque lever: PPS |
Type of Product |
Color Fiber Sensor Amplifier |
Model No |
FZ-11 |
Suitable For |
Fiber: FD-L51, FD-L52, FD-L53, FD-L54 |
Material |
Body case: ABS, Case cover: Polycarbonate, Fight baroque lever: PPS |
Response Time |
1 ms or less (however, 3 ms or less when auto teaching is set) |
Type |
Fiber amplifier |
Monotaro ID |
6886713 |
Mass (g) |
About 85 |
Operating Humidity Range |
35 to 85%RH |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Output Type |
NPN trANSIstor open collector |
Name of Manufacturer/Packer/Importer |
Panasonic Devices SUNX Co., Ltd. |
Included Components |
MS-DIN-3 (Amplifier mounting bracket): 1 unit, Adjustment driver: 1 unit |
Storage Humidity Range |
35 to 85%RH |
Current Consumption (mA) |
45 or less |
Vibration Resistance (Destruction) |
Endurance 10-150Hz Double amplitude 0.75 mm XYZ each direction 2 hours |
Specifications |
When using the discrimination tolerance setting switch with high accuracy detection (scale 4 to 1), the ambient temperature is +15 to + 35 ° C. |
Insulation Resistance (MOhm) |
20 or more at DC250V Mega |
Operation Ambient Temperature (°C) |
-10 to +55 (with no condensation or icing) |
Storage Temperature Range |
-20 to +70℃ |
Timer Function |
40ms fixed off delay timer (valid / invalid switching type) |
Power Supply Voltage (V) |
12-24 DC ± 10% Ripple P-P10% or less |
Pattern Setting |
Push button setting formula: 1 point (manual) Select with teaching / auto teaching switching switch |
Operation Indicator Lamp |
Red LED (lights up when output is ON) |

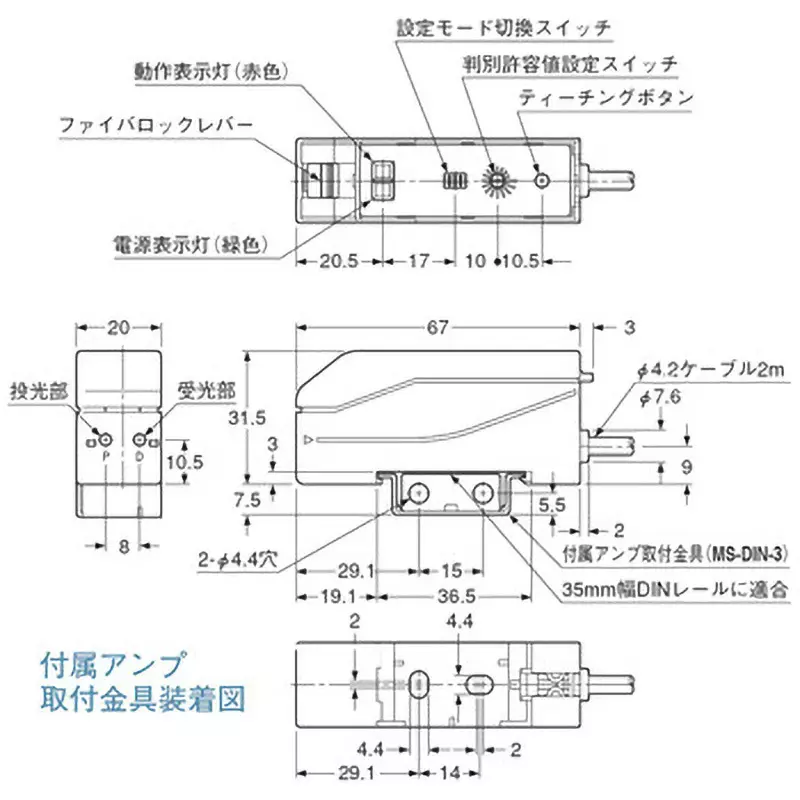

Dimension (WxDxH) |
20x31.5x67 mm |
