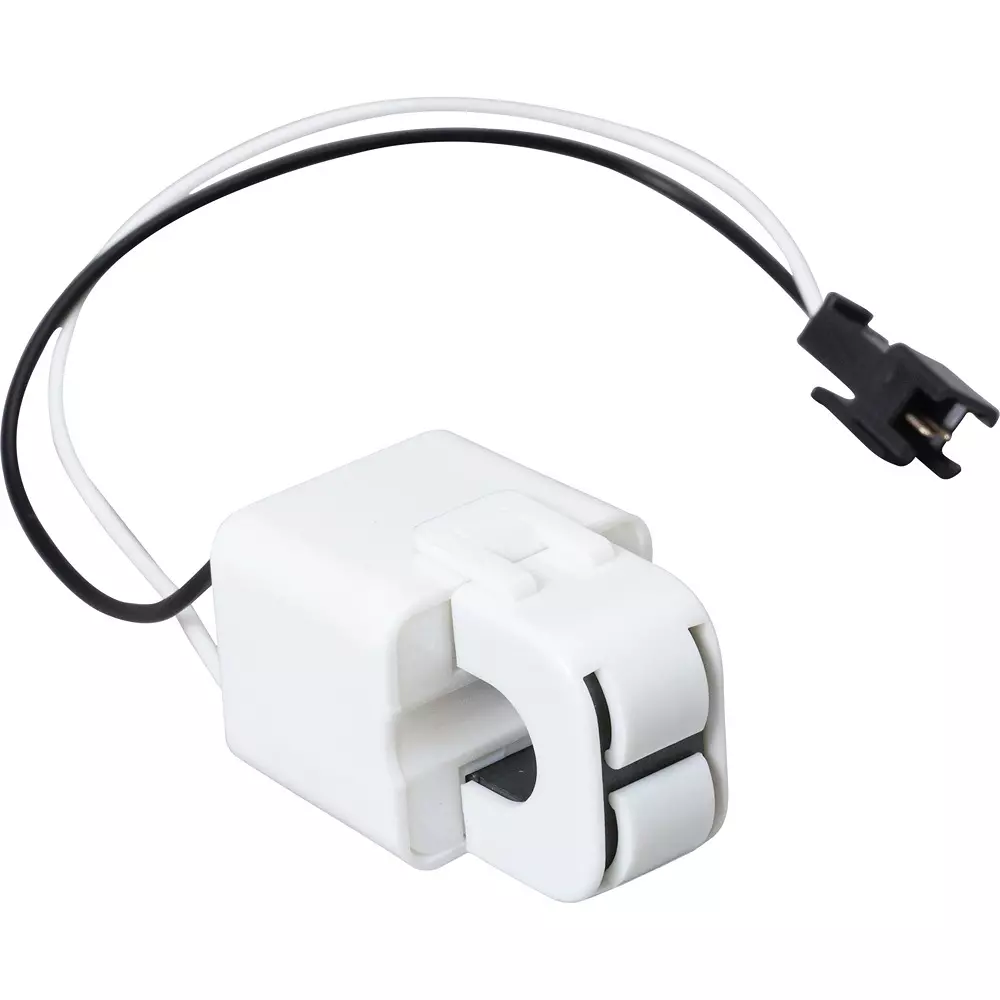

| Type of Product | AC Current Sensor |
| Model No | CTL-10-CLS |
| Connector | (Output) Pin contact: SYM-001T-P0.6, Receptacle housing: SMR-02V (Japan crimp terminal manufacture) |
| Monotaro ID | 62904923 |
Type of Product |
AC Current Sensor |
Model No |
CTL-10-CLS |
Connector |
(Output) Pin contact: SYM-001T-P0.6, Receptacle housing: SMR-02V (Japan crimp terminal manufacture) |
Monotaro ID |
62904923 |
Mass (g) |
45 |
Protection Class |
(Output) Built-in 7.5Vp clamp element |
Insulation Resistance |
DC500V, ≥100MΩ (between core and output connector terminals) |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Linearity |
±1%/FS (50/60Hz RL=60Ω) |
Withstand Voltage |
1000 VAC (50/60 Hz), 1 min (between core and output connector terminals) |
Name of Manufacturer/Packer/Importer |
URD Co., Ltd. |
Specifications |
(Nominal current transformation ratio) 3000: 1, (Secondary winding resistance) 400Ω (Reference value) |
Structure |
Nylon case simple closed type, ferrite core / cased clamp structure, nylon hinge / nylon spring system |
Withstand voltage (V / min) |
AC1000 (50/60Hz) (between core and output connector terminals) |
Lead Wire |
(Output) UL1007 vinyl wire (AWG22X150L) |
Output Characteristics |
1V±2%/50A (50/60Hz RL=60Ω) |
Storage Environment |
-30℃ to 90℃, ≦80% RH, no condensation |
Allowable Current (A) |
120 Arms continuous |
Suitable Current (A) |
0.01 to 80 Arms (50/60Hz), RL≦10Ω |
Desorption Times |
About 100 times |
Operation Environment |
-20℃ to 50℃, ≦80% RH, no condensation, for indoor installation, free installation direction |
Suitable Terminal |
Socket contact: SHF-001T-0.8BS, plug housing: SMP-02V-BC, NC (manufactured by Japan crimp terminal) (not included) |
