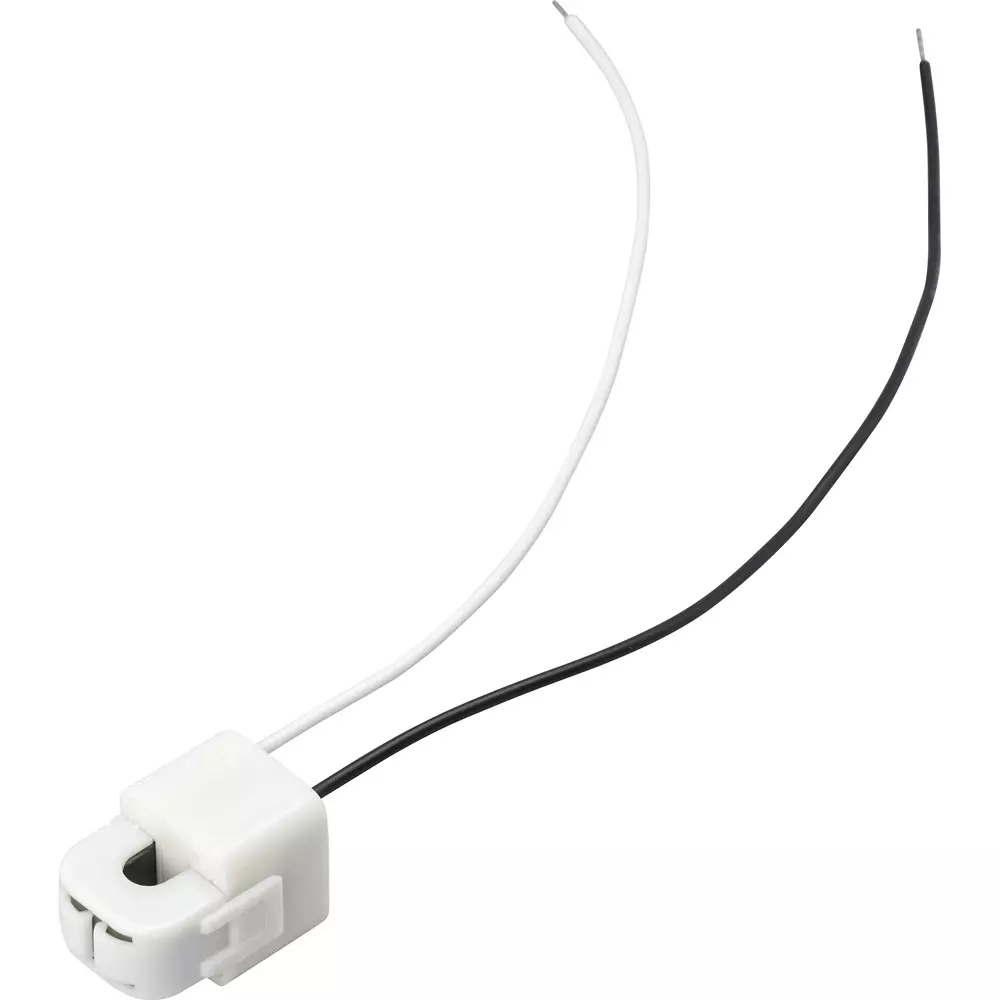

| Type of Product | AC Current Sensor |
| Model No | CTL-6-S32-8F-CL |
| Monotaro ID | 62905282 |
| Mass (g) | 12 |
Type of Product |
AC Current Sensor |
Model No |
CTL-6-S32-8F-CL |
Monotaro ID |
62905282 |
Mass (g) |
12 |
Insulation Resistance |
DC500V, ≥100MΩ (between core and output lead wire terminals) |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Withstand Voltage |
1000 VAC (50/60 Hz), 1 min (between core and output lead wire terminals) |
Name of Manufacturer/Packer/Importer |
URD Co., Ltd. |
Specifications |
(Secondary winding number) 800n ± 2 turns, (secondary winding resistance) 80Ω (reference value) |
Structure |

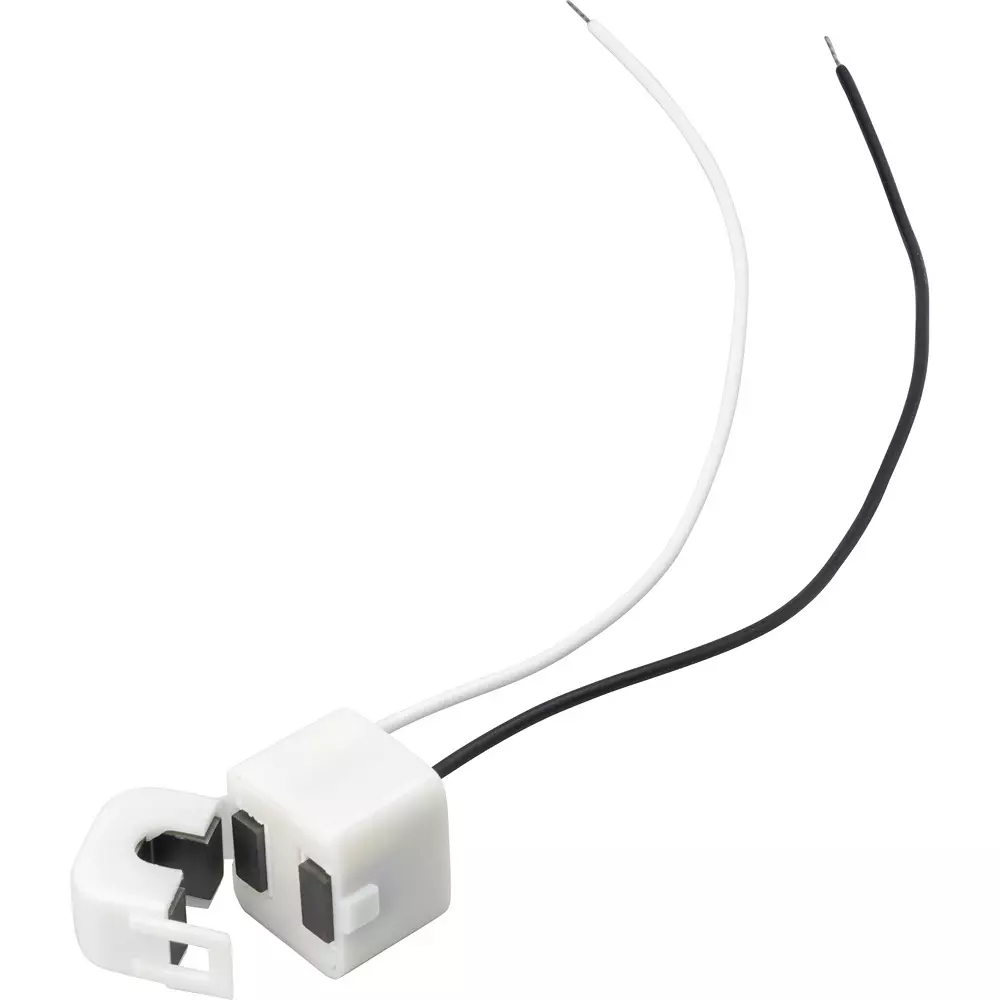

Nylon case simple closed type, ferrite core / cased clamp structure, nylon hinge / nylon spring system |
Lead Wire |
(Output) Tin coated vinyl wire (AWG22X150L) |
Storage Environment |
-30 ℃ to + 90 ℃, ≦ 80% RH, no condensation |
Allowable Current (A) |
50 Arms continuous |
Suitable Current (A) |
0.01 to 15 Arms (50/60Hz), RL≦10Ω |
Desorption Times |
About 100 times |
Operation Environment |
-20 ° C to + 50 ° C, ≤80% RH, non-condensing, for indoor use, free mounting direction |
